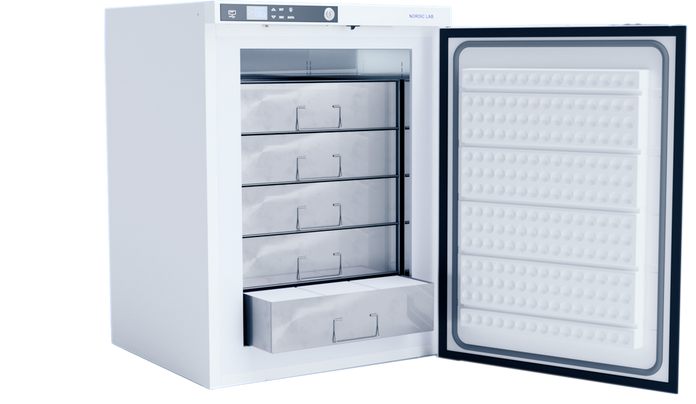

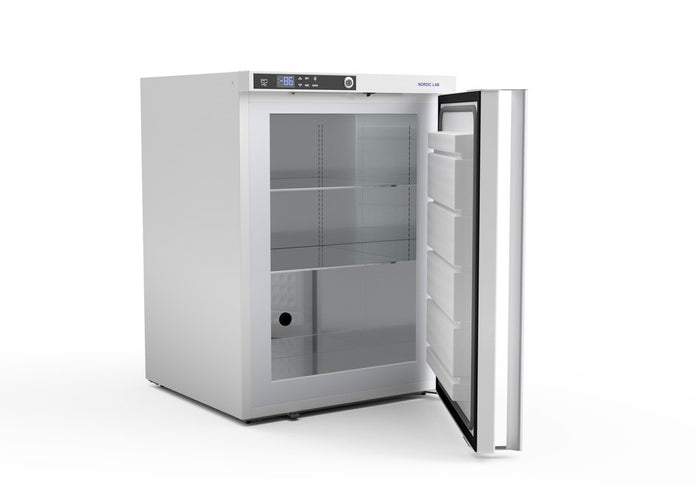

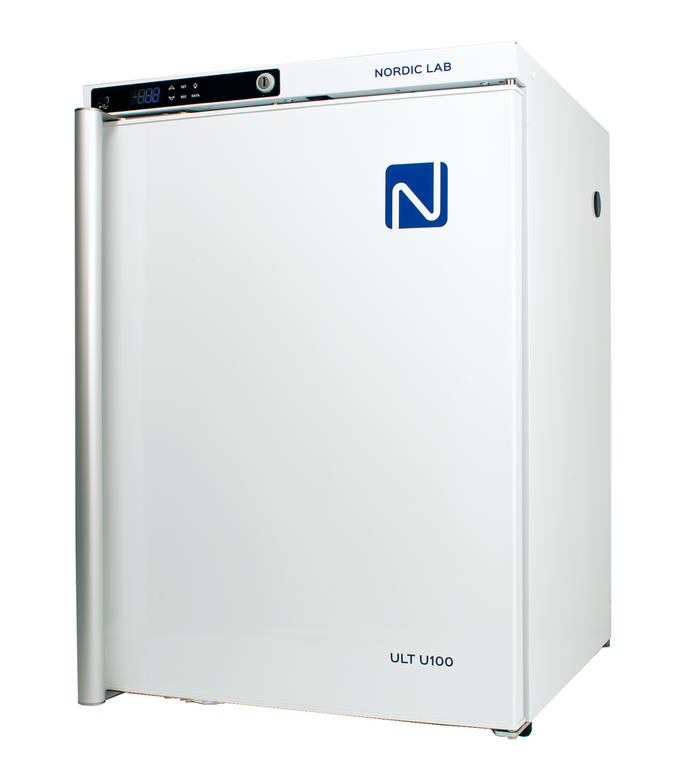

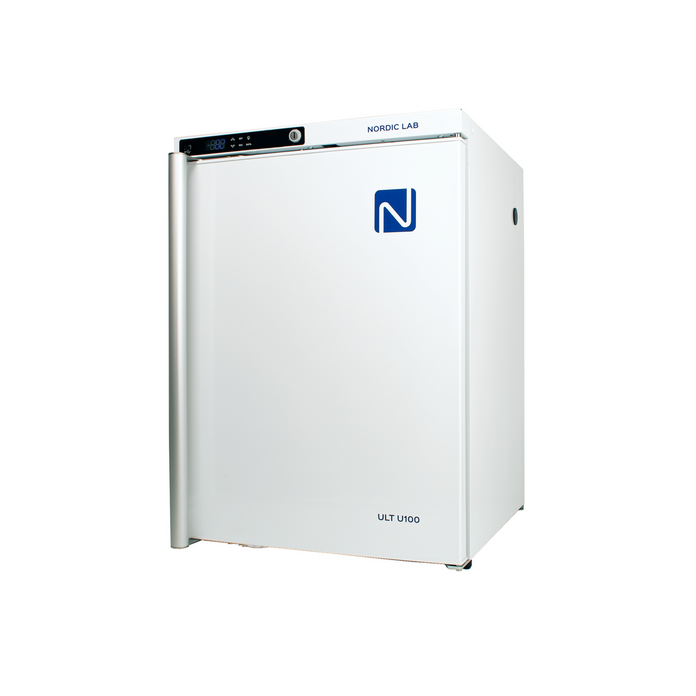

Nordic Lab - ULT-U100 - (-86°C) Ultra Low Temperature Upright Undercounter Freezer

Nordic Lab - ULT-U100 - (-86°C) Ultra Low Temperature Upright Undercounter Freezer
Nordic Lab - ULT-U100 - (-86°C) Ultra Low Temperature Upright Undercounter Freezer
Nordic Lab - ULT-U100 - (-86°C) Ultra Low Temperature Upright Undercounter Freezer
Nordic Lab - ULT-U100 - (-86°C) Ultra Low Temperature Upright Undercounter Freezer
Nordic Lab - ULT-U100 - (-86°C) Ultra Low Temperature Upright Undercounter Freezer
Nordic Lab - ULT-U100 - (-86°C) Ultra Low Temperature Upright Undercounter Freezer

Nordic Lab - ULT-U100 - (-86°C) Ultra Low Temperature Upright Undercounter Freezer

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Undercounter Freezer ULT U100, 93L, -86°C is the perfect personal easy-access freezer, for daily use in laboratories, hospitals or any scientific research place that requires storage of sensitive samples, such as bacteria, viruses, tissue samples or cell preparations.

Product Range

SKU Name
ULT U100-110V Nordic Lab - ULT U100-110V - (-86°C) Ultra Low Temperature Upright Undercounter Freezer, 110V/60Hz

Features

It has become more common to centralize sample storage in freezer rooms or biobanks. Labs that process a larger number of samples often experience significant time consumption when handling samples to and from the storage facility.

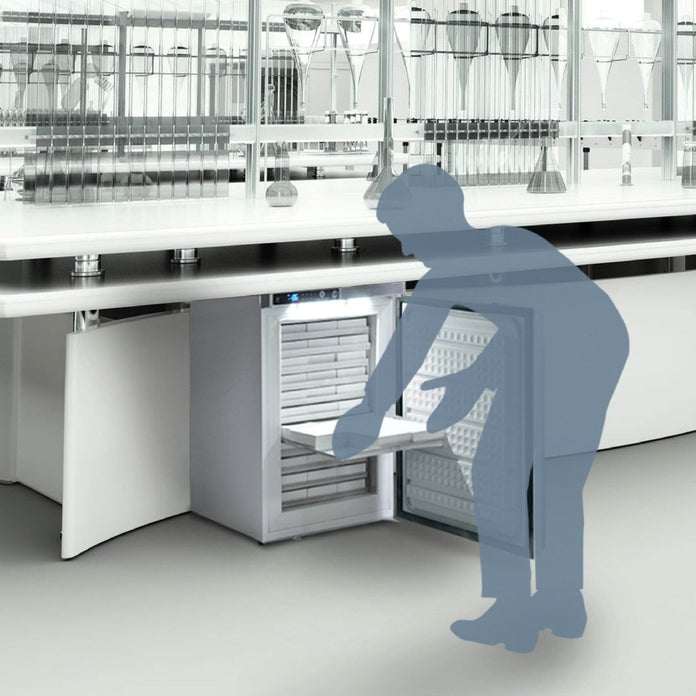

Having a small freezer in the lab can save a lot of time in daily operations. The capacity of the undercounter freezer often provides enough storage space for the user's study.



Choose an undercounter freezer for applications where the user needs quick access, requires a sample hub before sending samples to the central storage freezers, or has limited storage capacity needs.



The ULT U100 personal upright ULT lab freezer has several key features:



  • Pull-down time at startup is less than 173 minutes
  • Power consumption of 6.7 kWh/24h
  • Large storage capacity
  • Stackable
  • Noise level below 57 dB

Specifications

Overview

  • Nominal Height:
    32.4" (82.3 cm)
  • Nominal Width:
    23.4" (59.44 cm)
  • Nominal Length:
    24.8" (62.99 cm)
  • Capacity:
    3.21

Technical Data

  • Gross Volume:
    3,28 ft³
  • Temp. range:
    -60°C to -86°C
  • Temp. probes:
    1/PT 1000
  • Compressor:
    Embraco
  • Refrigerant:
    R-489A
  • Noise level:
    57 dB
  • Power consumption 24/h:
    5,6 kWh
  • Power consumption:
    2.044 kWh / year
  • Voltage:
    110 V
  • Frequency:
    60 Hz

Material & Features

  • Audible & Visual Alarm:
    Yes
  • Castors:
    No
  • Inner Doors:
    No
  • Defrost:
    Manual
  • Integrated Lock:
    Yes
  • Battery Backup:
    48h
  • USB:
    Yes
  • Data Connection:
    Modbus

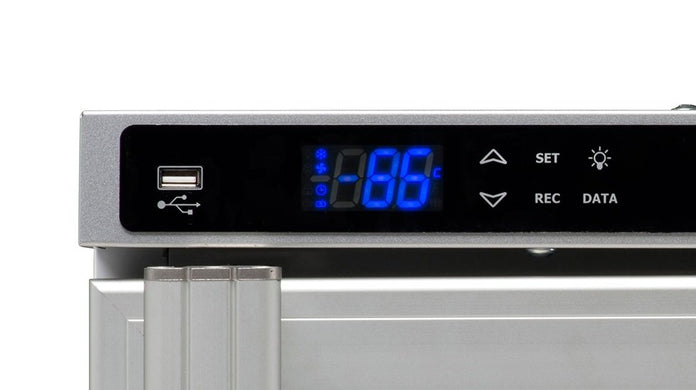

  • Digital Controller:
    XW737K
  • Data Logging:
    35.500 Entries
  • High/Low Temperature Alarm:
    Yes
  • Adjustable Shelves, Stainless Steel:
    2
  • Door Vacuum Release:
    Automatic
  • Portholes For External Probe & CO2 Backup:
    Ø 0,78 In
  • Connection For Remote Alarm:
    Yes
  • Inner:
    Stainless Steel
  • Outer:
    Galvanized Pre-Coated Steel

Internal Dimensions

  • Height:
    24,6/15,5 In
  • Width:
    16,9 In
  • Depth:
    16,7/8,1 In
  • Insulation:
    3,1 In
  • Insulation Type:
    PUR
  • Internal Humidity:
    <5 %
