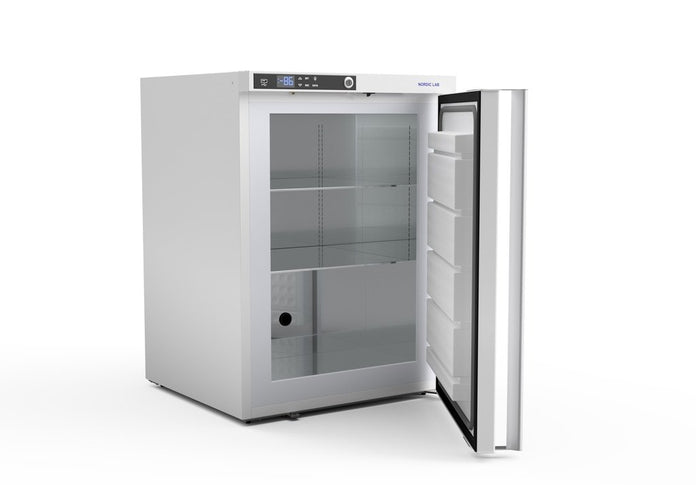

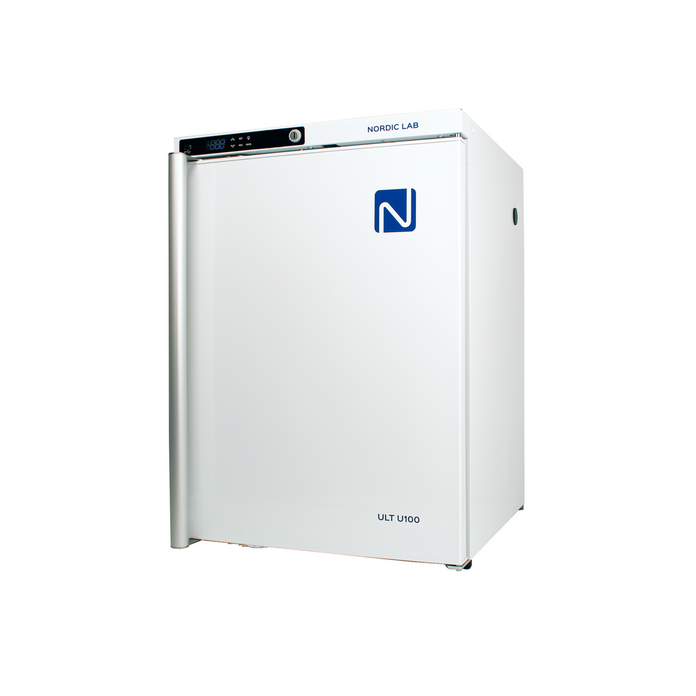

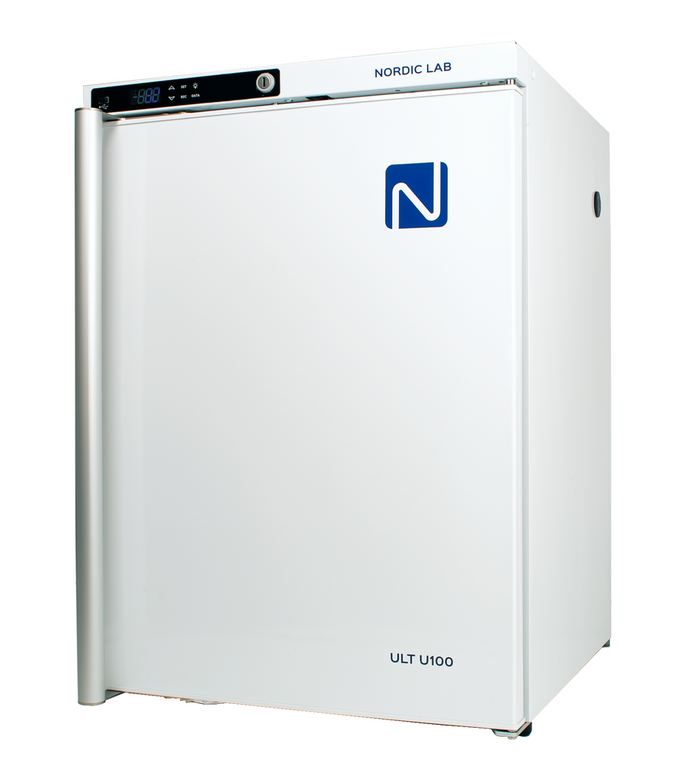

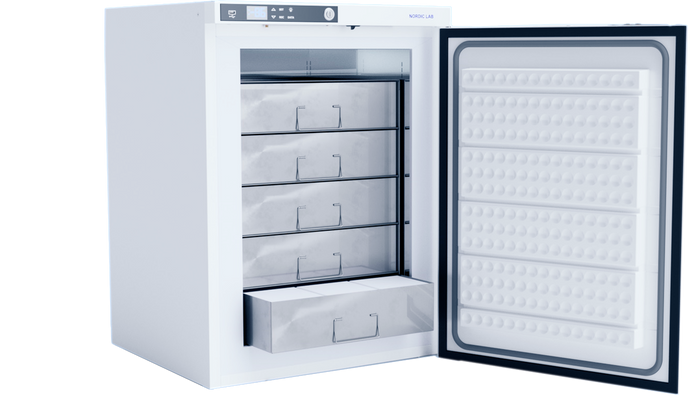

Nordic Lab - ULT U100-110V - (-86°C) Ultra Low Temperature Upright Undercounter Freezer, 110V/60Hz

Nordic Lab - ULT U100-110V - (-86°C) Ultra Low Temperature Upright Undercounter Freezer, 110V/60Hz
Nordic Lab - ULT U100-110V - (-86°C) Ultra Low Temperature Upright Undercounter Freezer, 110V/60Hz
Nordic Lab - ULT U100-110V - (-86°C) Ultra Low Temperature Upright Undercounter Freezer, 110V/60Hz
Nordic Lab - ULT U100-110V - (-86°C) Ultra Low Temperature Upright Undercounter Freezer, 110V/60Hz
Nordic Lab - ULT U100-110V - (-86°C) Ultra Low Temperature Upright Undercounter Freezer, 110V/60Hz
Nordic Lab - ULT U100-110V - (-86°C) Ultra Low Temperature Upright Undercounter Freezer, 110V/60Hz

Nordic Lab - ULT U100-110V - (-86°C) Ultra Low Temperature Upright Undercounter Freezer, 110V/60Hz

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

It has become more common to centralize sample storage in freezer rooms or biobanks. Labs that process a larger number of samples often experience significant time consumption when handling samples to and from the storage facility.

Features

It has become more common to centralize sample storage in freezer rooms or biobanks. Labs that process a larger number of samples often experience significant time consumption when handling samples to and from the storage facility.

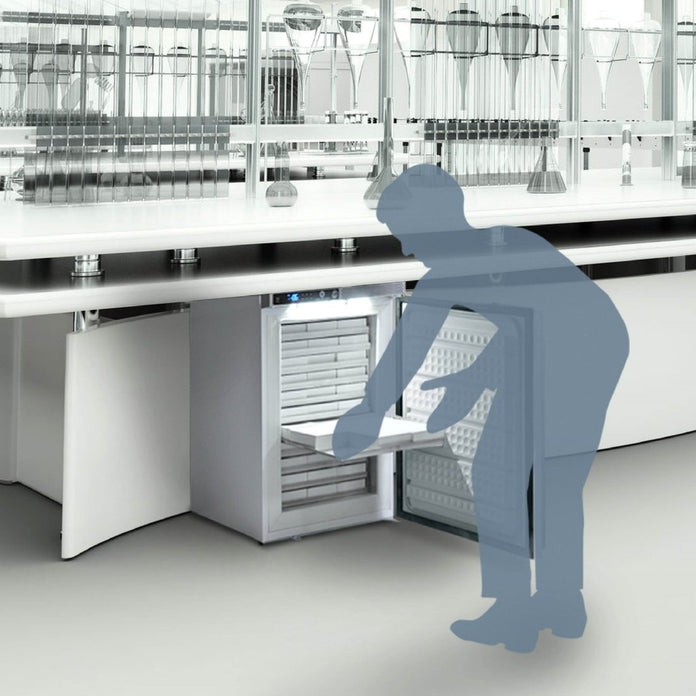

Having a small freezer in the lab can save a lot of time in daily operations. The capacity of the undercounter freezer often provides enough storage space for the user's study.



Choose an undercounter freezer for applications where the user needs quick access, requires a sample hub before sending samples to the central storage freezers, or has limited storage capacity needs.



  • Pull-down time at startup is less than 173 minutes.
  • Power consumption of 6.7 kWh/24h.
  • Large storage capacity.
  • Stackable.
  • Noise level below 57 dB.

Specifications

Overview

  • Nominal Height:
    32.48" (82.5 cm)
  • Nominal Width:
    23.42" (59.49 cm)
  • Nominal Length:
    24.8" (62.99 cm)
  • Capacity:
    3.21

Technical Data

  • Gross Volume:
    3,28 ft³
  • Temp. range:
    -60°C to -86°C
  • Temp. probes:
    1/PT 1000
  • Refrigerant:
    R-489A
  • Compressor :
    Secop
  • Power Consump. 24/h:
    5,6 kWh
  • Voltage/Frequency :
    110V / 60Hz
  • Noise level:
    57 dB
  • Power consumption :
    2.044 kWh / year

Material & Features

  • Audible & Visual Alarm:
    YES
  • Castors:
    NO
  • Inner Doors:
    NO
  • Defrost:
    Manual
  • Integrated Lock:
    YES
  • Battery Backup:
    48h
  • USB:
    YES
  • Data Connection:
    MODBUS

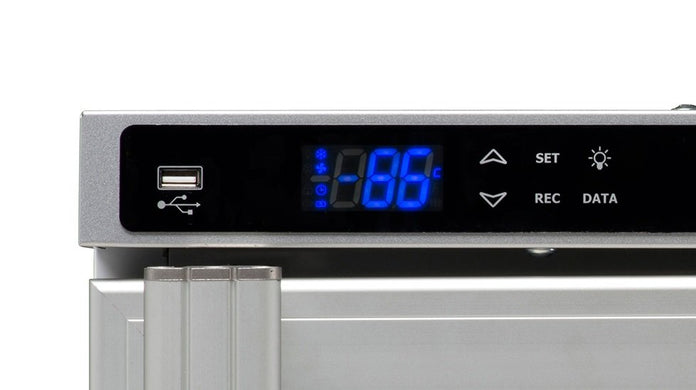

  • Digital Controller:
    XW737K
  • Data Logging:
    35.500 Entries
  • High/Low Temperature Alarm:
    YES
  • Shelves, Stainless Steel:
    2
  • Door Vacuum Release:
    Automatic
  • Portholes For External Probe & CO2 Backup:
    Ø 0,78 in
  • Connection For Remote Alarm:
    YES
  • Inner:
    Stainless steel
  • Outer:
    Galvanized pre-coated steel

Dimensions Details

  • Depth (incl. condenser):
    630 mm
  • Net Weight:
    60 kg
  • Internal Height:
    625/395 mm
  • Internal Width:
    430 mm
  • Internal Depth:
    425/205 mm
  • Insulation:
    80 mm
  • Insulation Type:
    PUR
  • Internal Humidity:
    <5%
