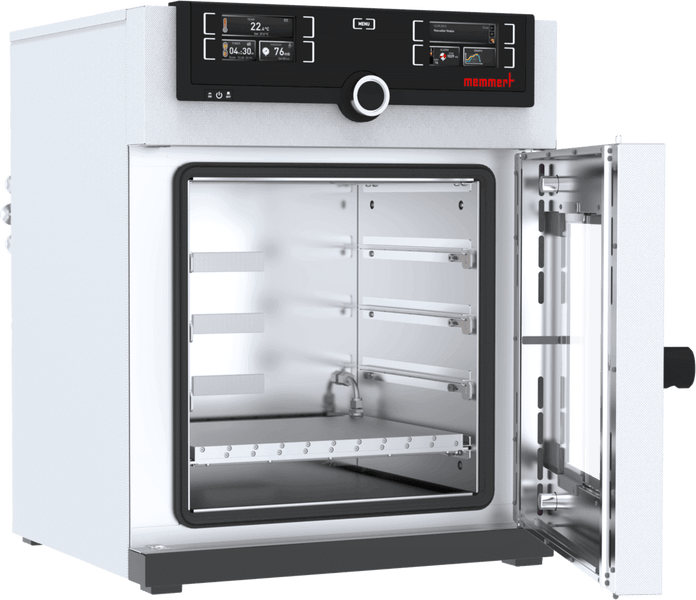

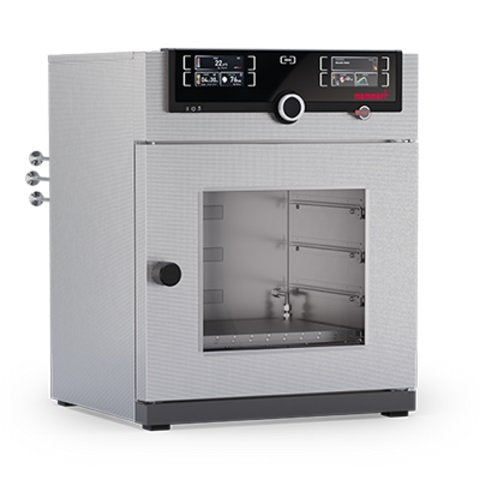

Memmert Vacuum Oven Cool VO 49 cool, 230 Volt, 50/60 Hz., Temperature Range +5°C to 90°C.

Features

The direct contact between the load and the heatable thermoshelves in the chamber of the vacuum oven ensures rapid and uniform temperature control of food, cosmetics, watches, books, PCBs or injection moulds, without the loss of heat.



  • Stainless Steel: Scratch resistant, hygienic and durable.
  • 3 Year Warranty: A limited 3 year warranty is included with the option to purchase an extra year.
  • AtmoCONTROL: Create and monitor programs.
  • TwinDISPLAY: Twice the features of SingleDISPLAY. Monitor programs easily via Ethernet or USB.

Specifications

Overview

  • Nominal Height:
    27" (68.58 cm)
  • Nominal Width:
    21.7" (55.12 cm)
  • Nominal Length:
    16.9" (42.93 cm)
  • Internal Height:
    15.2" (38.61 cm)
  • Internal Width:
    15.2" (38.61 cm)
  • Internal Length:
    13" (33.02 cm)

Temperature - Humidity

  • Working Temperature Range:
    From 5°C (at least 20 below ambient temperature) to +90°C
  • Setting Temperature Range:
    From +5°C up to +90°C
  • Resolution of Display for Actual Values:
    0.1°C
  • Resolution of Display for Setpoint Values:
    0.1°C
  • Pressure - Vacuum Range:
    5 to 1100 mbar
  • Pressure - Pressure Control:
    Digital electronic pressure control for a speed-controlled vacuum pump
  • Pressure - Permitted Final Vacuum:
    0.01 mbar
  • Pressure - Maximum Leakage Rate:
    0.01 bar/h
  • Pressure - Pump control:
    Speed control, optimized rinsing procedures for the pump membranes as well as signal output for pump ON/OFF
  • Pressure - Connection Vacuum:
    Connection with small flange DN16, and gas inlet with small flange DN16

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Material:
    Hermetically welded Stainless Steel Interior- of extremely corrosion-resistant stainless steel, material 1.4404
  • Stainless Steel Interior - Max. Loading of Chamber:
    44 lbs
  • Stainless Steel Interior - Volume:
    49 L / 1.73 cu ft
  • Textured Stainless Steel Casing - Door:
    Full-sight glass door, inside spring-loaded, 15 mm thick glazed panel in Safety- glass, outside with anti-splitter screen
  • Textured Stainless Steel Casing - Housing:
    Rear zinc-plated steel
  • Control Technology - Adjustable Parameters:
    Temperature (Celsius or Fahrenheit), pressure (Vacuum) timer
  • Control Technology - Language Setting:
    German, English, Spanish, French, Polish, Czech, Hungarian, Italian
  • Control Technology - ControlCOCKPIT:
    TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays.
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    Integral fault diagnostics for temperature control
  • Safety - Alarm:
    Visual and acoustic
  • Standard Equipment - Works Calibration Certificate:
    For +10°C/20 mbar
  • Standard Equipment - Interior:
    Additional interior mountings of stainless steel, material 1.4404.
  • Standard Equipment - Interior:
    All tubings made of stainless steel, material no. 1.4571
  • Standard Equipment - Internals:
    Cooling and heating combination of aluminum, material 3.3547 (ASTM B209)
  • Electrical Data - Electrical Load:
    230 V (±10%), 50/60 Hz, Approx. 2.2 A
