Memmert T5D9 Premium Vacuum Oven VO 49, 230Volt 50/60Hz, +5°C Above Ambient up to +200°C, Adjustable pressure 5mbar up to 1100mbar DN25 Port.

Features

Digital pressure control ensures rapid and gentle vacuum drying. The speed-controlled vacuum pump (accessory) saves around 70% energy. The direct contact between the load and the heatable and removable thermoshelves in the chamber of the Memmert vacuum oven VO49 ensures rapid and uniform temperature control of food, cosmetics, watches, books, PCBs or injection molds, without the loss of heat. Two connections for thermoshelves are in the rear (1st and 3rd level). The net weight is approximately 83 kg.

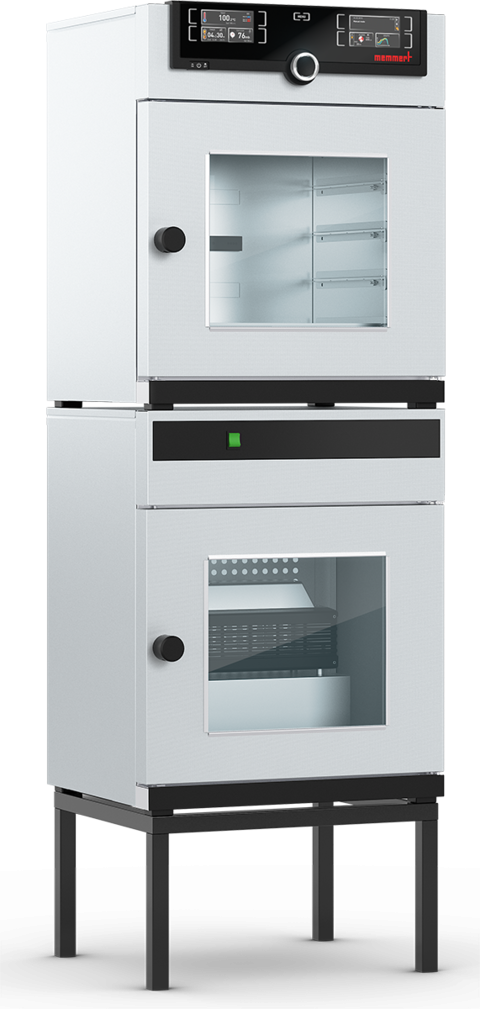

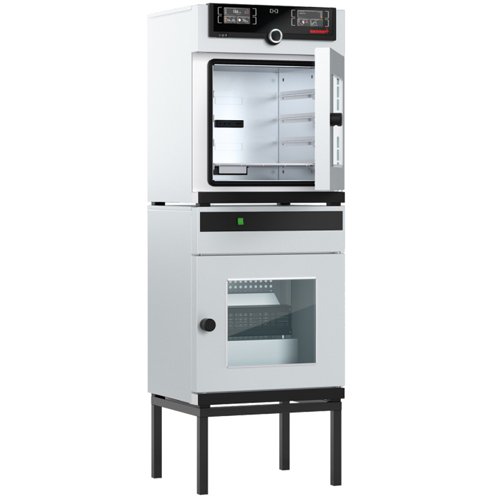

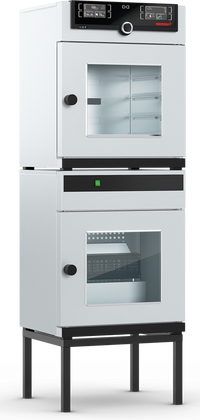

*Pump module PMP49 and stand pictured to the right are sold separately.



  • Stainless Steel: Scratch resistant, hygienic and durable.
  • 3 Year Warranty: A limited 3 year warranty is included with the option to purchase an extra year.
  • AtmoCONTROL: Create and monitor programs.
  • TwinDISPLAY: Twice the features of SingleDISPLAY. Monitor programs easily via Ethernet or USB.

Specifications

Overview

  • Nominal Height:
    27" (68.58 cm)
  • Nominal Width:
    21.7" (55.12 cm)
  • Nominal Length:
    18.9" (48.01 cm)
  • Internal Height:
    15.2" (38.61 cm)
  • Internal Width:
    15.2" (38.61 cm)
  • Internal Length:
    13" (33.02 cm)

Temperature - Humidity

  • Setting Resolution Temperature:
    Up to 99.9°C - 0.1 / from 100°C - 0.5
  • Setting Temperature Range:
    +20 to +200°C
  • Temperature Sensor:
    Temperature measured through 4-wire Pt100 sensor individually for each thermoshelf
  • Working Temperature Range:
    Min. 5°C above ambient up to +200°C

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Material:
    Hermetically welded Stainless Steel Interior - of extremely corrosion-resistant stainless steel, material 1.4404
  • Stainless Steel Interior - Interior:
    Additional interior mountings of stainless steel, material 1.4404 (removable for cleaning)
  • Stainless Steel Interior - Volume:
    49 l / 1.7 cu ft
  • Stainless Steel Interior - Max. Number of Internals:
    4
  • Stainless Steel Interior - Max. Loading of Chamber:
    132 lbs
  • Stainless Steel Interior - Max. Loading per Internal:
    44 lbs
  • Textured Stainless Steel Casing - Door:
    Full-sight glass door, inside spring-loaded, 0.6-inch-thick glazed panel in Safety- glass, outside with anti-splitter screen
  • Textured Stainless Steel Casing - Housing:
    Rear zinc-plated steel
  • Control Technology - Adjustable Parameters:
    Temperature (Celsius or Fahrenheit), pressure (Vacuum), timer
  • Control Technology - Language Setting:
    German, English, Spanish, French, Polish, Czech, Hungarian, Italian
  • Control Technology - ControlCOCKPIT:
    TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definitionTFT-color displays.
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    Integral fault diagnostics for temperature and humidity control
  • Safety - Alarm:
    Visual and acoustic
  • Standard Equipment - Works Calibration Certificate:
    For +160°C at 20 mbar pressure for each supplied thermoshelf together with the vacuum oven
  • Standard Equipment - Internals:
    2 thermoshelves of aluminum, material 3.3547 (ASTM B209) with integrated large-area heating
  • Standard Equipment - Entry Port:
    Entry port installed in the rear, KF25 flange for connection
  • Electrical Data - Electrical Load:
    230 V (±10%), 50/60 Hz, Approx. 2020 W / 8.8 A
