Memmert  T5 Premium Vacuum Oven VO 29, 230Volt 50/60Hz +5°C Above ambient up to +200°C, Adjustable pressure 5mbar up 1100mbar (No inert Gas) DN5 Port (CONSIGNMENT INVENTORY).

Features

Digital pressure control ensures rapid and gentle vacuum drying, its speed-controlled vacuum pump (accessory) saves around 70% energy. The direct contact between the load and the heatable and removable thermoshelves in the chamber of the Memmert vacuum oven VO29 ensures rapid and uniform temperature.

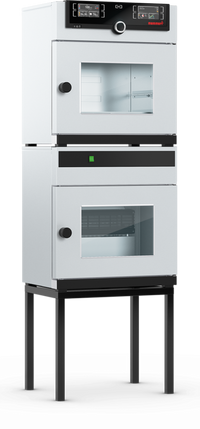

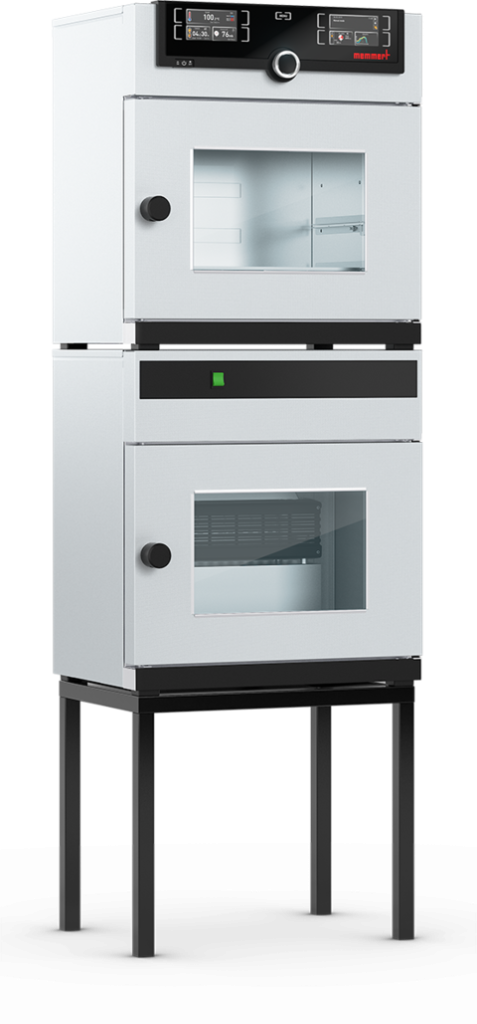

*Pump module PMP29 and stand pictured to the right are sold separately.



  • Stainless Steel: Scratch resistant, hygienic and durable.
  • 3 Year Warranty: A limited 3 year warranty is included with the option to purchase an extra year.
  • AtmoCONTROL: Create and monitor programs.
  • TwinDISPLAY: Twice the features of SingleDISPLAY. Monitor programs easily via Ethernet or USB.

Specifications

Overview

  • Nominal Height:
    23.9" (60.71 cm)
  • Nominal Width:
    21.7" (55.12 cm)
  • Nominal Length:
    15.7" (39.88 cm)
  • Internal Height:
    12" (30.48 cm)
  • Internal Width:
    15.2" (38.61 cm)
  • Internal Length:
    9.8" (24.89 cm)

Temperature - Humidity

  • Setting Resolution Temperature:
    Up to 99.9°C - 0.1 / from 100°C - 0.5
  • Setting Temperature Range:
    +20 to +200°C
  • Temperature Sensor:
    Temperature measured through 4-wire Pt100 sensor individually for each thermoshelf
  • Working Temperature Range:
    Min. 5°C above ambient up to +200°C

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Material:
    Hermetically welded Stainless Steel Interior of extremely corrosion-resistant stainless steel, material 1.4404
  • Stainless Steel Interior - Interior:
    Additional interior mountings of stainless steel, material 1.4404 (removable for cleaning)
  • Stainless Steel Interior - Max. Number of Internals:
    3
  • Stainless Steel Interior - Max. Loading of Chamber:
    88 lbs
  • Stainless Steel Interior - Max. Loading per Internal:
    44 lbs
  • Textured Stainless Steel Casing - Door:
    Full-sight glass door, inside spring-loaded, 0.6-inch-thick glazed panel in safety glass, outside with anti-splitter screen
  • Textured Stainless Steel Casing - Housing:
    Rear zinc-plated steel
  • Control Technology - Adjustable Parameters:
    Temperature (Celsius or Fahrenheit), pressure (Vacuum), timer
  • Control Technology - Language Setting:
    German, English, Spanish, French, Polish, Czech, Hungarian, Italian
  • Control Technology - ControlCOCKPIT:
    TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays.
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    Integral fault diagnostics for temperature and humidity control
  • Safety - Alarm:
    Visual and acoustic
  • Standard Equipment - Works Calibration Certificate:
    For +160°C at 20 mbar pressure for each supplied thermoshelf together with the vacuum oven
  • Standard Equipment - Internals:
    1 thermoshelf of aluminum, material 3.3547 (ASTM B209) with integrated large-area heating
  • Electrical Data - Electrical Load:
    230 V (±10%), 50/60 Hz, Approx. 820 W / 3.6 A
