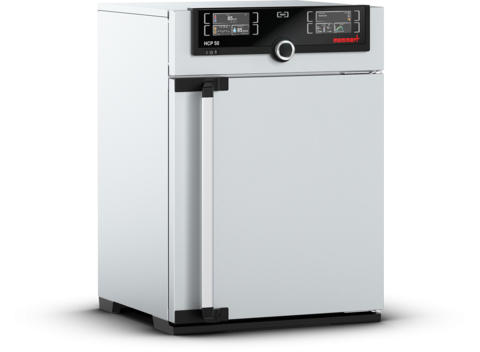

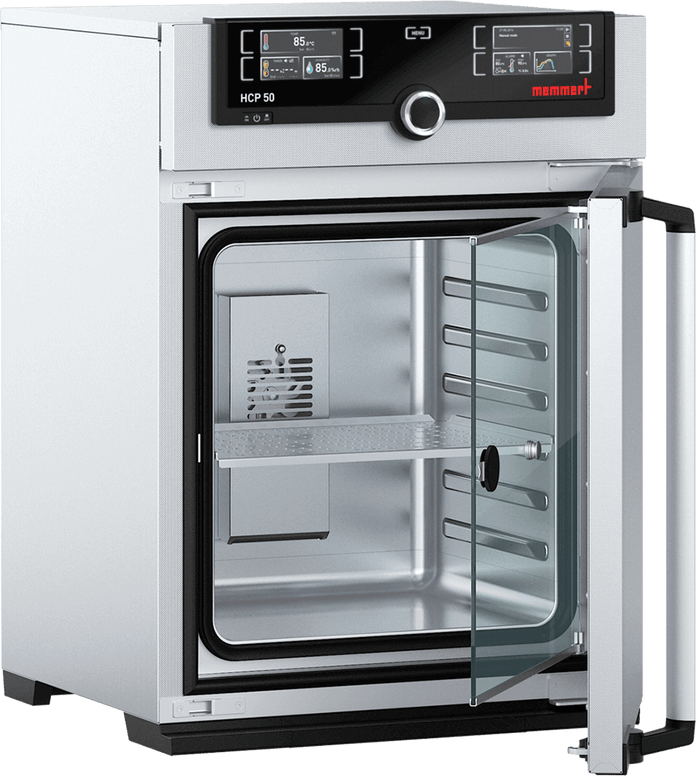

Memmert - HCP 50 115V - Humidity Chamber

Memmert - HCP 50 115V - Humidity Chamber

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

Memmert Humidity Chamber HCP 50, 115Volt +18°C to +90°C, 20-95%RH - 40mm silicone entry port with stopper rear wall.

Features

High-precision control technology creates controlled and physiologically ideal surroundings for the perfect environment simulation in building physics, electronics, biology, zoology and botany. HCP50 Memmert climate chambers guarantee the perfect atmosphere for climate and temperature tests.



  • Stainless Steel: Scratch resistant, hygienic and durable.
  • 3 Year Warranty: A limited 2 year warranty is included with the option to purchase an extra year.
  • AtmoCONTROL: Create and monitor programs.
  • TwinDISPLAY: Twice the features of SingleDISPLAY. Monitor programs easily via Ethernet or USB.

Specifications

Overview

  • Nominal Height:
    31.3" (79.5 cm)
  • Nominal Width:
    22" (55.88 cm)
  • Nominal Length:
    20.5" (52.07 cm)
  • Internal Height:
    16.7" (42.42 cm)
  • Internal Width:
    15.7" (39.88 cm)
  • Internal Length:
    13" (33.02 cm)

Temperature - Humidity

  • Working Temperature Range without Humidity:
    6°C up to +90°C
  • Setting Temperature Range:
    +18 to +90 °C
  • Setting Accuracy Temperature:
    0.1°C
  • Temperature Sensor:
    2 Pt100 sensors DIN Class A in 4-wire-circuit
  • Humidity Control:
    Active microprocessor control for humidifying and dehumidifying (20 - 95 % rh)
  • Setting Range Active Humidity Control:
    20 to 95 % rh and rh-Off
  • Setting Accuracy Humidity:
    0.5 % rh

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Volume:
    56 L
  • Stainless Steel Interior - Max. Number of Internals:
    5
  • Stainless Steel Interior - Max. Loading per Internal:
    33 lbs
  • Stainless Steel Interior - Max. Loading of Chamber:
    165 lbs
  • Control Technology - ControlCOCKPIT:
    TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays.
  • Control Technology - Adjustable Parameters:
    Temperature (Celsius or Fahrenheit), fan speed, relative humidity, timer
  • Control Technology - Language Setting:
    German, English, Spanish, French, Polish, Czech, Hungarian
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Calibration:
    Three freely selectable values each, temperature and humidity

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    Integral fault diagnostics for temperature and humidity control
  • Safety - Alarm:
    Visual and acoustic
  • Standard Equipment - Works Calibration Certificate:
    Works calibration certificate (measuring point chamber center) at 60°C with 75 % rh
  • Standard Equipment - Door:
    Fully insulated stainless steel doors with 2-point locking (compression door lock)
  • Standard Equipment - Shelving:
    1 perforated stainless steel shelf/shelves
  • Electrical Data - Electrical Load:
    115 V (±10%), 50/60 Hz, Approx. 13.2 A
