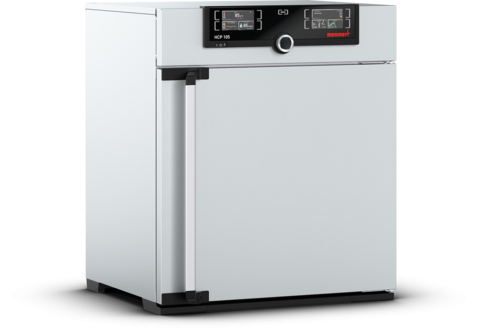

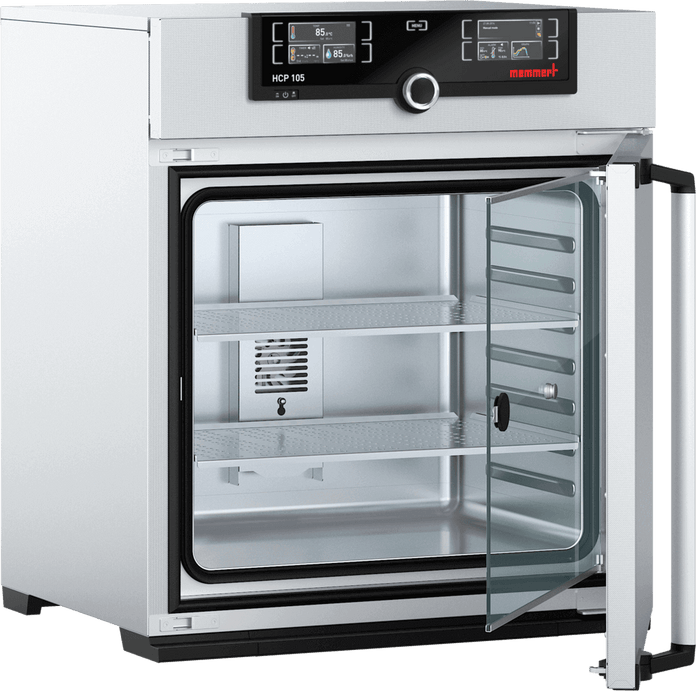

Memmert - HCP 105 115V - Humidity Chamber

Memmert - HCP 105 115V - Humidity Chamber

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

Memmert Humidity Chamber HCP 105, 115V +18°C to +90°C, 20-95%RH- 40mm silicone entry port with stopper rear wall.

Features

HCP105 Memmert climate chambers guarantee the perfect atmosphere for climate and temperature tests.

  • Stainless Steel: Scratch resistant, hygienic and durable.
  • 3 Year Warranty: A limited 2 year warranty is included with the option to purchase an extra year.
  • AtmoCONTROL: Create and monitor programs.
  • TwinDISPLAY: Twice the features of SingleDISPLAY. Monitor programs easily via Ethernet or USB.

Specifications

Overview

  • Nominal Height:
    33.5" (85.09 cm)
  • Nominal Width:
    28.3" (71.88 cm)
  • Nominal Length:
    23.2" (58.93 cm)
  • Internal Height:
    18.9" (48.01 cm)
  • Internal Width:
    22" (55.88 cm)
  • Internal Length:
    15.7" (39.88 cm)

Temperature - Humidity

  • Working Temperature Range without Humidity:
    6°C up to +90°C
  • Setting Temperature Range:
    +18 to +90 °C
  • Setting Accuracy Temperature:
    0.1°C
  • Temperature Sensor:
    2 Pt100 sensors DIN Class A in 4-wire-circuit
  • Humidity Control:
    Active microprocessor control for humidifying and dehumidifying (20 - 95 % rh)
  • Setting Range Active Humidity Control:
    20 to 95 % rh and rh-Off
  • Setting Accuracy Humidity:
    0.5 % rh

Interior - Exterior - Control Technology

  • Stainless Steel Interior - Material:
    1.4301 (ASTM 304), corrosion resistant
  • Stainless Steel Interior - Volume:
    107 L
  • Stainless Steel Interior - Max. Number of Internals:
    6
  • Stainless Steel Interior - Max. Loading per Internal:
    33 lbs
  • Stainless Steel Interior - Max. Loading of Chamber:
    198 lbs
  • Control Technology - ControlCOCKPIT:
    TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays.
  • Control Technology - Adjustable Parameters:
    Temperature (Celsius or Fahrenheit), fan speed, relative humidity, timer
  • Control Technology - Language Setting:
    German, English, Spanish, French, Polish, Czech, Hungarian
  • Control Technology - Timer:
    Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
  • Control Technology - Function SetpointWAIT:
    The process time does not start until the set temperature is reached
  • Control Technology - Calibration:
    Three freely selectable values each, temperature and humidity

Safety - Standard Equipment - Electrical Data

  • Safety - Autodiagnostic System:
    Integral fault diagnostics for temperature and humidity control
  • Safety - Alarm:
    Visual and acoustic
  • Standard Equipment - Works Calibration Certificate:
    Works calibration certificate (measuring point chamber center) at 60°C with 75 % rh
  • Standard Equipment - Door:
    Fully insulated stainless steel doors with 2-point locking (compression door lock)
  • Standard Equipment - Shelving:
    2 perforated stainless steel shelf/shelves
  • Electrical Data - Electrical Load:
    115 V (±10%), 50/60 Hz, Approx. 15.5 A
