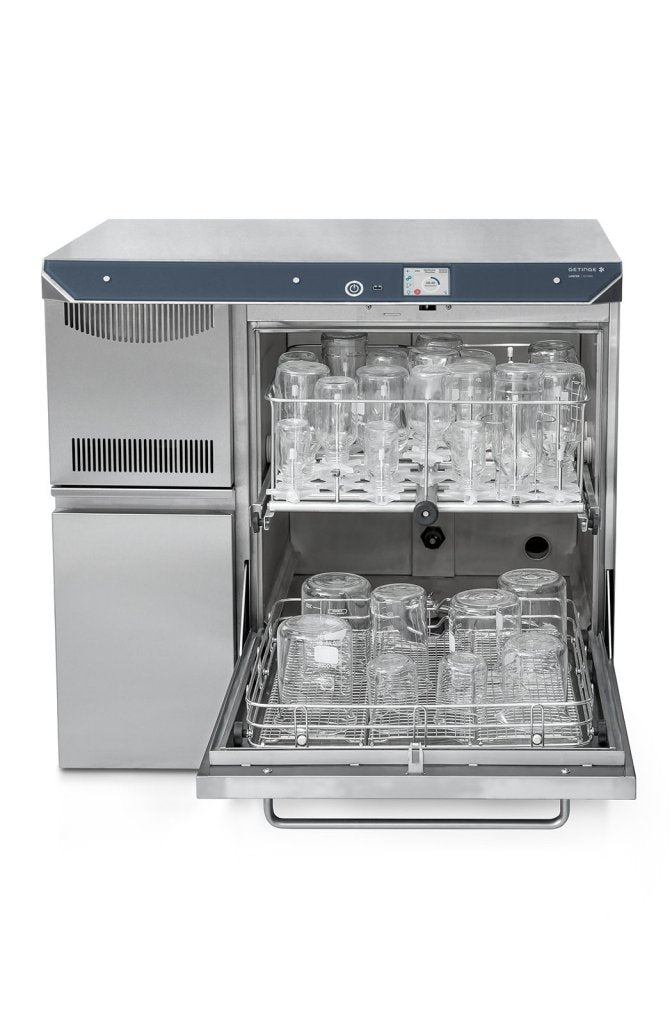

Lancer - 820 LX - Ultima Undercounter Laboratory Washers

Lancer - 820 LX - Ultima Undercounter Laboratory Washers

Lancer - 820 LX - Ultima Undercounter Laboratory Washers

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Getinge Lancer Ultima Washer/Dryers are designed to deliver reliable and repeatable cleaning of glassware and utensils while maximizing valuable floor space in your laboratory. The most common racks are interchangeable between wash levels. All racks can be used with the 810 LX and 815 LX models Undercounter Washers, and the 910 LX, and 1300 LX models of Freestanding Washers, minimizing the need for additional accessories.

Features

Ultima Series 820 LX Undercounter or Freestanding Glassware washing machine with the following features:



  • Chamber dimensions: 19.6"H x 21.1"W x 20.05"D
  • External dimensions: 33.5"H x 35.8"W x 29.1"D
  • 2 Independent wash levels
  • Prolux PLC control system
  • Four pre-set plus 36 customizable programs
  • 3.5" color touchscreen display with intuitive icon-based interface
  • Front panel USB port plus Ethernet, RS232, RS422/485 connections on control board
  • Steam condenser to protect casework
  • On-board chemical storage with liquid level detection
  • LANCER's Super Drying system with HEPA filtered, forced air drying via injectors and chamber
  • 304L stainless steel construction
  • Insulated chamber for quiet operation
  • Built-in detergent and acid neutralizer pumps for labor free dosing
  • Filter system to protect circulation pump
  • Self-diagnostic software
  • Electrically Heated
  • Racks are interchangeable between levels (sold separately)
  • Racks are interchangeable with 810 - 1300 family of washers (sold separately)
  • End user training by local Lancer Sales Representative



As standard, utility requirements (see specification for full detail)



  • Voltage: 208V, 3-Phase, 60 Hz (other voltages available. Additional charges may apply)
  • DI Supply: Pressurized (29 to 87 PSIG, with minimum flow rate of 5 GPM)

Specifications

Overview

  • Nominal Height:
    33.5" (85.09 cm)
  • Nominal Width:
    35.8" (90.93 cm)
  • Nominal Length:
    29.1" (73.91 cm)
  • Internal Height:
    19.6" (49.78 cm)
  • Internal Width:
    21.1" (53.59 cm)
  • Internal Length:
    20.5" (52.07 cm)
  • Capacity:
    4.9

Technical Data

  • Water Per Fill:
    12 (3.1)
  • Programs - Presets:
    5
  • Programs - Custom:
    35
  • Wash Temp. Max. ºC:
    95°C
  • Rinse Purified Water:
    Standard
  • Rinse Acid:
    Standard
  • Drying:
    Forced-air chamber and injectors
  • Drying:
    HEPA filtered
  • Automatic pumps:
    Standard
  • On-Board Chemical Storage:
    On-Board chemical storage
  • Level Sensors:
    Standard
  • Water Softener:
    optional features
  • Net Weight Empty kg (lb):
    115 (254)
  • Site Preparation:
    Drain requirement, vertical standpipe
  • Certifications :
    2006/42/EC

Downloads

  • Lancer Ultima Undercounter Series Brochures
    Download
  • The Complete Bioreactor Preparation Solution Sales Flyer
    Download
  • Install Manual ULTIMA series 820 LX
    Download
