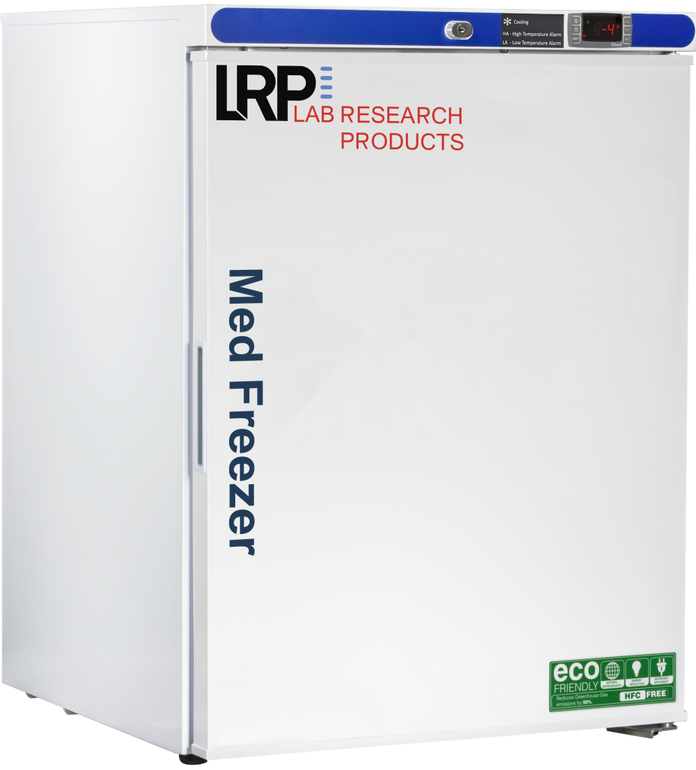

Lab Research Products (LRP) - PH-LRP-HC-UCFS-0520 - 4 Cu. Ft. Plus Series Pharmacy/Vaccine Undercounter Freestanding Freezer (-20°C)

Features
Periodic defrosting is required.
The Freestanding models ("UCFS") require 4" of clearance around the back and sides of the unit for proper ventilation. Improper installation will void the warranty and may lead to temperature maintenance issues, overheating, and possible failure.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C to 8°C) in the refrigerator and -58°F to 5°F (or -50°C and -15°C) in the freezer.
Details
- Two fixed shelves
- Vaccine storage power cord warning label
- Keyed door lock
- Recessed door handle
- Magnetic door gasket for positive seal
- Leveling legs
- HFC-free refrigerant (R600a), foam insulation, and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two-year parts and labor warranty, plus an additional three-year compressor parts-only warranty
Temp Controller
- Microprocessor temperature controller
- Digital temperature display and alarm module with battery backup to support temperature monitoring and alarms
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes; 1 in air and 1 in glycol bottle
- Adjustable operating temperature range: 5°F to -13°F (-15°C to -25°C)
Specifications
Overview
-
Nominal Height:32.1" (81.53 cm)
-
Nominal Width:23.6" (59.94 cm)
-
Nominal Length:24.25" (61.6 cm)
-
Internal Height:26" (66.04 cm)
-
Internal Width:19" (48.26 cm)
-
Internal Length:16" (40.64 cm)
-
Capacity:4
Technical Data
-
Defrost:Manual
-
Door:1 Solid
-
Int Door:0
-
Shelves:2 Fixed
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:1.4
-
Weight:91 lbs.
-
Shipping Weight:128 lbs.
Drawings
-
PH-LRP-HC-UCFS-0520 Ext Cut SheetVisit Link
-
PH-LRP-HC-UCFS-0520 Int Cut SheetVisit Link
