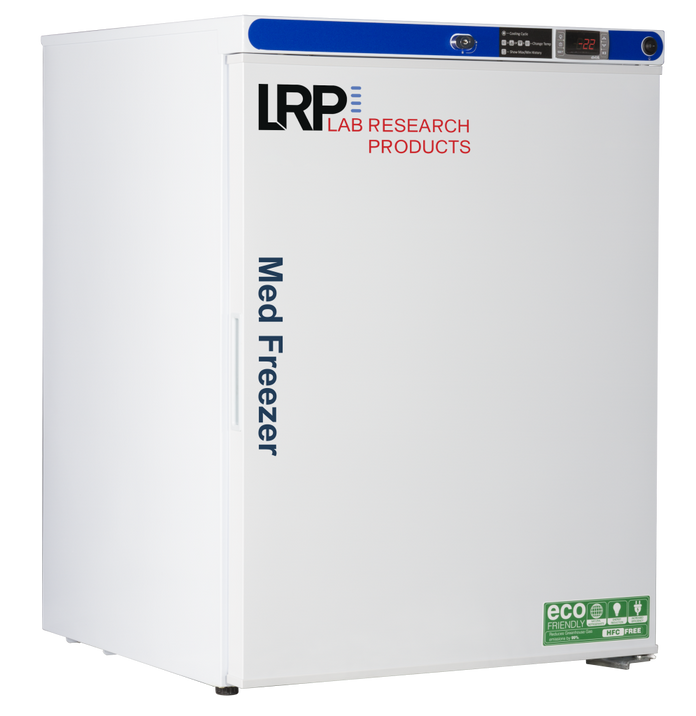

Lab Research Products - PH-LRP-HC-UCFS-0430 - 4 Cu. Ft. Plus Series Pharmacy/Vaccine Undercounter Freestanding Freezer (-30°C)

Lab Research Products - PH-LRP-HC-UCFS-0430 - 4 Cu. Ft. Plus Series Pharmacy/Vaccine Undercounter Freestanding Freezer (-30°C)

Lab Research Products - PH-LRP-HC-UCFS-0430 - 4 Cu. Ft. Plus Series Pharmacy/Vaccine Undercounter Freestanding Freezer (-30°C)

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The Plus Series Pharmacy Freestanding Undercounter Freezers feature a microprocessor temperature controller and display, allow for precise temperature control, verification and recovery versus mechanical style thermostats. Critical samples and supplies are security backed with an extensive package of audible and visual alarms.

Features

Periodic defrosting is required.



The Freestanding models ("UCFS") require 4" of clearance around the back and sides of the unit for proper ventilation. Improper installation will void the warranty and may lead to temperature maintenance issues, overheating, and possible failure.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



For more information on Vaccine Storage: Vaccine Storage.



The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C to 8°C) in the refrigerator and -58°F to 5°F (or -50°C to -15°C) in the freezer.



Adjustable operating temperature range: -4°F to -22°F (-20°C to -30°C). Factory preset at -30°C. See "View/Print Product Information" drop down for instructions.



Details



  • Three adjustable shelves with guard rail on back to prevent product from being pushed against the back wall
  • Bottom footed shelf to allow air circulation
  • Back wall evaporator cover
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Recessed door handle
  • Leveling legs
  • LED interior light
  • Pharmacy refrigerator/freezer toolkit and temperature logs
  • HFC-free refrigerant (R290), foam insulation and packaging
  • Two year parts and labor warranty, plus an additional three year compressor parts only warranty
  • Note: This unit must have 4" clearance on sides and back for adequate ventilation



Temp Controller



  • Microprocessor temperature controller
  • Digital temperature display and alarm module with battery back-up to support temperature monitoring and alarms
  • Audible and visual high and low temperature alarms
  • Remote alarm contacts
  • Two probes; 1 in air and 1 in glycol bottle
  • Adjustable operating temperature range: -4°F to -22°F (-20°C to -30°C), factory preset at -30°C
  • Calibrated using a NIST traceable device, certificate included

Specifications

Overview

  • Nominal Height:
    32.1" (81.53 cm)
  • Nominal Width:
    23.75" (60.33 cm)
  • Nominal Length:
    24" (60.96 cm)
  • Internal Height:
    24.8" (62.99 cm)
  • Internal Width:
    17.6" (44.7 cm)
  • Internal Length:
    15.8" (40.13 cm)
  • Capacity:
    4

Technical Data

  • Defrost:
    Manual
  • Door:
    1 Solid
  • Int Door:
    0
  • Shelves:
    3 Adj.+Footed Bottom
  • Refrigerant:
    R290
  • H.P.:
    0.25
  • Amps:
    2.2
  • Weight:
    93 lbs
  • Shipping Weight:
    128 lbs.

Drawings

Useful Links

  • -30°C and -40°C Operation Temperature Setting Instructions
    Visit Link
  • -30°C and -40°C Operation Temperature Setting Instructions
    Visit Link
