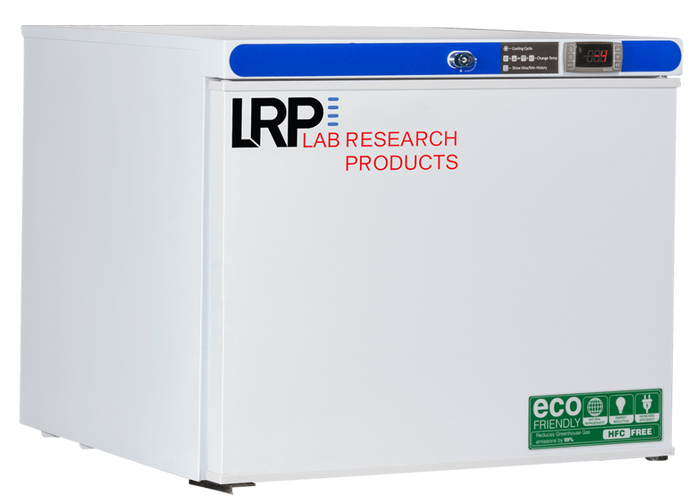

Lab Research Products - PH-LRP-HC-UCFS-0120-LH - 1.7 Cu. Ft. Plus Series Pharmacy/Vaccine Countertop Laboratory Freezer Freestanding, Left Hinged

Features
Freestanding models ("UCFS") require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- 2 adjustable shelves with guard rail to prevent product from being pushed against back wall
- Bottom footed shelf to allow air circulation
- Vaccine storage power cord warning label
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- Integrated door handle
- HFC-free refrigerant (R600a), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty

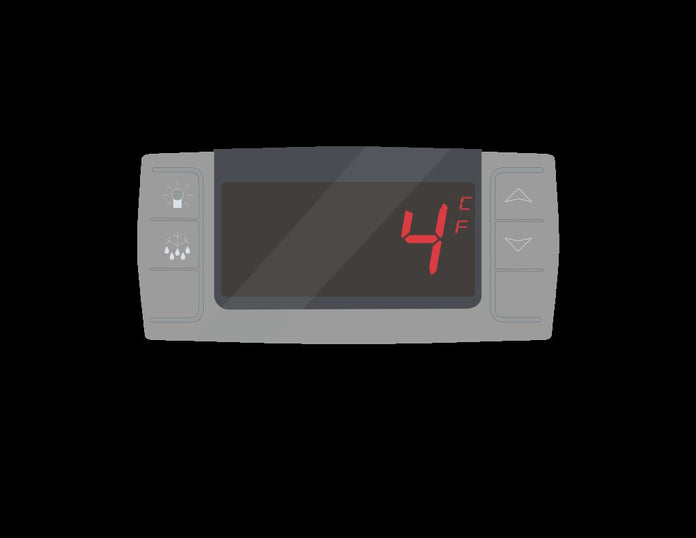

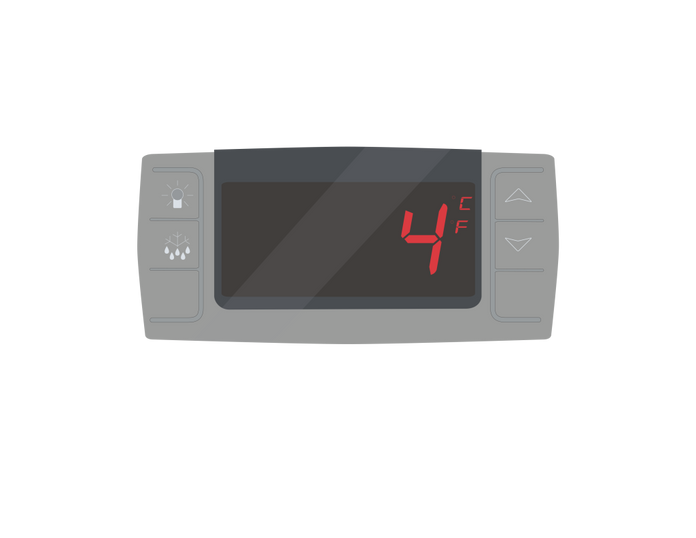

Temp Controller
- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes; 1 in air and 1 in glycol bottle
- Adjustable operating temperature range: 5°F - -13°F (-15°C - -25°C)
- Calibrated using a NIST traceable device, certificate included
Specifications
Overview
-
Nominal Height:20.38" (51.77 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24" (60.96 cm)
-
Internal Height:13.88" (35.26 cm)
-
Internal Width:17.75" (45.09 cm)
-
Internal Length:16" (40.64 cm)
-
Capacity:1.7
Technical Data
-
Defrost:Manual
-
Door:1 Solid LH
-
Int Door:0
-
Shelves:2Adj + Footed Bottom
-
Refrigerant:R600a
-
H.P.:1/8
-
Amps:1
-
Weight:80 lbs.
-
Shipping Weight:106 lbs.
Drawings
-
PH-LRP-HC-UCFS-0120-LH Ext Cut SheetVisit Link
-
PH-LRP-HC-UCFS-0120-LH Int Cut SheetVisit Link
Useful Links
-
PH-LRP-HC-UCFS-0120-LH Spec SheetVisit Link
