Lab Research Products - LRP-230V-2186 - 21 Cu. Ft. Ultra Low Temperature Freezer, 230V

Features
The interior of the unit features a triple gasket seal, vacuum relief port, five double walled insulated doors & 5 1/2 - 6" of urethane insulation in critical areas. Units are made in the USA and are UL and C-UL listed.
Details
- 21 Cu.Ft. Capacity
- Four stainless steel shelves, adjustable on ½" centers
- Cam action handle for one hand latching of exterior door.
- Handle supplied with key lock and door switch for audible and visual alarms
- Four heavy duty swivel casters with locks
- Vacuum relief port for quick access after door closures
- CFC-free refrigerant
- Two year parts and labor warranty, plus an additional three year compressor parts warranty

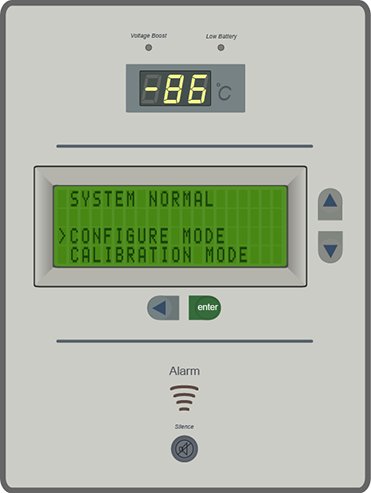

Temp Controller
- Microprocessor controller specifications
- Touch pad keys and four line display for easy programming
- Large LED temperature readout
- Audible and visual alarms with silence key for audible alarms
- Programmable high and low temperature alarm set points
- Programmable access code to limit access to set points and controller configuration
- Automatic voltage boost to compensate for low line voltages
- Normally open, normally closed alarm contacts and 4-20mA signal available to connect to central alarm system
- RS-232 serial output
- Battery backup on electronics during power outages
- Temperature range: -50°C to -86°C
Specifications
Overview
-
Nominal Height:79.6" (202.18 cm)
-
Nominal Width:43.3" (109.98 cm)
-
Nominal Length:36.3" (92.2 cm)
-
Internal Height:50" (127.0 cm)
-
Internal Width:29.1" (73.91 cm)
-
Internal Length:23" (58.42 cm)
-
Capacity:21
Technical Data
-
Defrost:Manual
-
Door:1 Solid
-
Int Door:5
-
Shelves:4 Fixed
-
H.P.:0.5 x 0.5
-
Amps:10
-
Weight:680 lbs.
Drawings
-
LRP-230V-2186 Ext Cut SheetVisit Link
-
LRP-230V-2186 Int Cut SheetVisit Link
