Fast and flexible

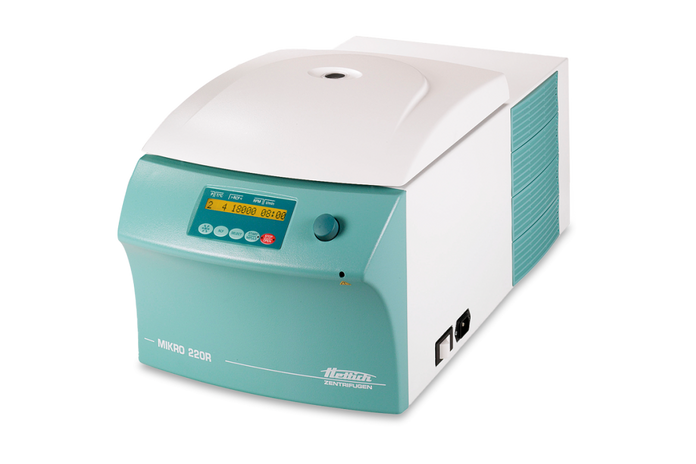

The MIKRO 220 R spins at an unmatched speed of 18,000 RPM and delivers an RCF of 31,514 in just 26 seconds. It offers flexibility with a choice of 8 different rotors, accommodating tube sizes from 0.2 ml microliters to 50 ml conical tubes, enabling numerous research applications on a single machine.

The MIKRO 220 R is equipped with refrigeration and offers a temperature range from -20 °C to +40 °C.

Facilities

• Hospitals
• Paediatric hospitals
• Blood centers
• Pharmaceutical hospitals
• Food analyzing labs
• Scientific labs in universities
• Forensic labs
• Paternity testing labs

Highlights

• RPM 500 - 18,000 min -1. Adjustable in increments of 10
• Max. RCF 31,514
• Max. capacity 60 x 2.0 ml
• Compact, high-performance microlitre centrifuge
• Choice of 8 rotors
• IVDR-conform according to regulation (EU) 2017/746
• Noise level of ≤ 54 dB (A) with rotor 1252-A
• Impulse key for short cycle mode
• Easy operation with keypad and control knob
• 9 program memories for more individuality
• 9 individual acceleration and deceleration stages
• Model 220 R coolable from -20 to +40 °C with pre-cooling function

Features

• Metal housing and lid
• Viewing port in the lid
• powered lid lock
• Lid dropping protection
• Emergency lid lock release
• Stainless steel chamber
• Automatic rotor recognition
• Brushless drive
• Error display
• Display in °C and °F possible
• Imbalance switch-off
• Backlit panel with actual values of all parameters
• Auditory message after completion of the centrifugation run

Areas of applications

Clinical

Spin pediatric tubes in a small compact footprint as well as PCR mini kits including spin columns up to 31,514 RCF and lipemic samples with a g-force of 21,185 at a fraction of the cost of an ultracentrifuge.

Industry and research

Spin PCR Mini Kits including spin columns and microliter tubes to sediment subcellular particles or bacteria.
