Includes: (1) Mikro 220 centrifuge, (1) horizontal rotor, (24) adapters 1.5 ml.

Features

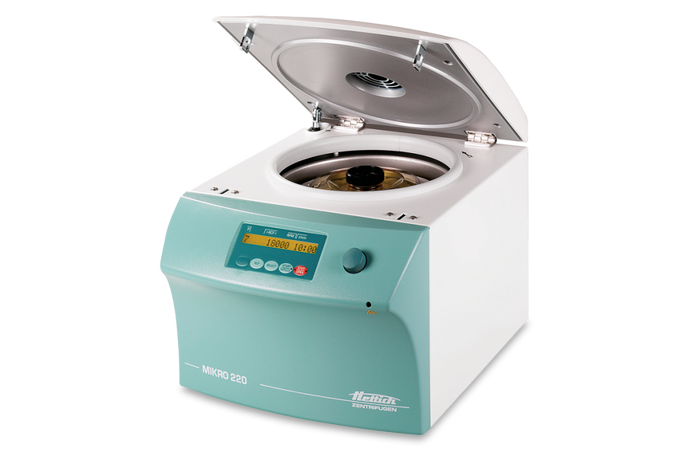

The MIKRO 220 Microliter Tube Package 90 BC comes complete with everything you need to perform your application. This includes the MIKRO 220 or MIKRO 220 R centrifuge, horizontal rotor, adapters for 1.5 mL tubes and a bio-containment lid. In addition to this package, many a-la-carte options are available.


Fast and flexible


The MIKRO 220 spins at an unmatched speed of 18,000 RPM and delivers an RCF of 31,514 in just 26 seconds. Ultimate flexibility is provided by a choice of 8 different rotors from 0.2 ml microliter tubes to 50 ml conical tubes, allowing for numerous research applications on a single machine.


Highlights


  • RPM 500 - 18,000 min -1. Adjustable in increments of 10
  • Max. RCF 31,514
  • Max. capacity 60 x 2.0 ml
  • Compact, high-performance microlitre centrifuge
  • Choice of 8 rotors
  • IVDR-conform according to regulation (EU) 2017/746
  • Noise level of ≤ 54 dB (A) with rotor 1252-A
  • Impulse key for short cycle mode
  • Easy operation with keypad and control knob
  • 9 program memories for more individuality
  • 9 individual acceleration and deceleration stages
  • Model 220 R coolable from -20 to +40 °C with pre-cooling function

Features


  • Metal housing and lid
  • Viewing port in the lid
  • powered lid lock
  • Lid dropping protection
  • Emergency lid lock release
  • Stainless steel chamber
  • Automatic rotor recognition
  • Brushless drive
  • Error display
  • Display in °C and °F possible
  • Imbalance switch-off
  • Backlit panel with actual values of all parameters
  • Auditory message after completion of the centrifugation run

Areas of applications


Clinical


Spin pediatric tubes in a small compact footprint as well as PCR mini kits including spin columns up to 31, 514 RCF and lipemic samples with a g-force of 21, 185 at a fraction of the cost of an ultracentrifuge.


Industry and research


Spin PCR Mini Kits including spin columns and microliter tubes to sediment subcellular particles or bacteria.


Facilities


  • Hospitals
  • Paediatric hospitals
  • Blood centers
  • Pharmaceutical hospitals
  • Food analyzing labs
  • Scientific labs in universities
  • Forensic labs
  • Paternity testing labs

Specifications

Overview

Technical Data

  • Voltage: 100 - 127 V 1 ~;Frequency: 60 Hz;Consumption: 510 VA;Emission, Immunity: FCC class B;Max. Capacity: 48 x 1.5 / 2.0 ml, 6 x 50 ml;Max. RPM: 18,000 min-1;Max. RCF: 31,514;Running Time: 1 - 99 min 59 s, ∞ continuous run, short cycle mode (impulse button);Dimensions: 330 x 420 x 313 mm:
  • Weight: approx. 21 kg;Noise Level: ≤ 58 dB (A) with rotor 1189-A:

Microliter Tube Package - 90

  • Tube Qty.:
    24
  • Volume (ml):
    1.5 - 2.0
  • RPM:
    ≤ 13,000
  • RCF:
    ≤ 18,516

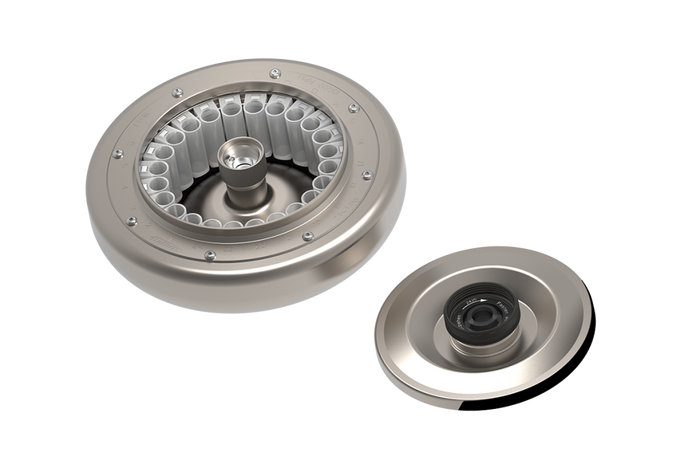

Swing-out Rotor, 24-place

  • Max. RCF:
    18,516
  • Max. RPM:
    13,000 min-1
  • Max. capacity:
    24 x 2 ml
  • Angle:
    90°
  • Standard equipment:
    Incl. Bio-containment lid
  • Cat.No.:
    1154-L
