Hettich - 220RMICRO90 - Mikro 220R Microlitre Centrifuge, Microliter Tube Package 90 (Bio-Containment)

Hettich - 220RMICRO90 - Mikro 220R Microlitre Centrifuge, Microliter Tube Package 90 (Bio-Containment)
Hettich - 220RMICRO90 - Mikro 220R Microlitre Centrifuge, Microliter Tube Package 90 (Bio-Containment)

Hettich - 220RMICRO90 - Mikro 220R Microlitre Centrifuge, Microliter Tube Package 90 (Bio-Containment)

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Includes: (1) Mikro 220R centrifuge, (1) horizontal rotor, (24) adapters 1.5 ml, (1) bio-containment lid.

Features

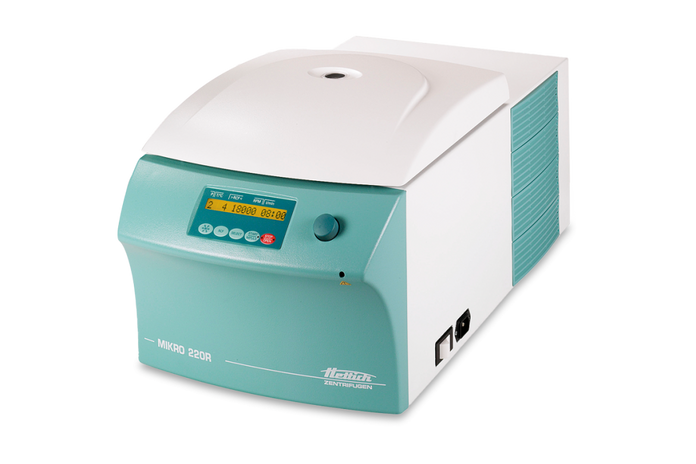

The MIKRO 220 Microliter Tube Package 90 BC comes complete with everything you need to perform your application. This includes the MIKRO 220 or MIKRO 220 R centrifuge, horizontal rotor, adapters for 1.5 mL tubes and a bio-containment lid. In addition to this package, many a-la-carte options are available.


Fast and flexible


The MIKRO 220 R spins at an unmatched speed of 18,000 RPM and delivers an RCF of 31,514 in just 26 seconds. It offers flexibility with a choice of 8 different rotors, accommodating tube sizes from 0.2 ml microliters to 50 ml conical tubes, enabling numerous research applications on a single machine.

The MIKRO 220 R is equipped with refrigeration and offers a temperature range from -20 °C to +40 °C.


Facilities


  • Hospitals
  • Paediatric hospitals
  • Blood centers
  • Pharmaceutical hospitals
  • Food analyzing labs
  • Scientific labs in universities
  • Forensic labs
  • Paternity testing labs

Highlights


  • RPM 500 - 18,000 min -1. Adjustable in increments of 10
  • Max. RCF 31,514
  • Max. capacity 60 x 2.0 ml
  • Compact, high-performance microlitre centrifuge
  • Choice of 8 rotors
  • IVDR-conform according to regulation (EU) 2017/746
  • Noise level of ≤ 54 dB (A) with rotor 1252-A
  • Impulse key for short cycle mode
  • Easy operation with keypad and control knob
  • 9 program memories for more individuality
  • 9 individual acceleration and deceleration stages
  • Model 220 R coolable from -20 to +40 °C with pre-cooling function

Features


  • Metal housing and lid
  • Viewing port in the lid
  • powered lid lock
  • Lid dropping protection
  • Emergency lid lock release
  • Stainless steel chamber
  • Automatic rotor recognition
  • Brushless drive
  • Error display
  • Display in °C and °F possible
  • Imbalance switch-off
  • Backlit panel with actual values of all parameters
  • Auditory message after completion of the centrifugation run

Areas of applications


Clinical


Spin pediatric tubes in a small compact footprint as well as PCR mini kits including spin columns up to 31,514 RCF and lipemic samples with a g-force of 21,185 at a fraction of the cost of an ultracentrifuge.


Industry and research


Spin PCR Mini Kits including spin columns and microliter tubes to sediment subcellular particles or bacteria.


Specifications

Overview

Technical Data

  • Voltage: 100 - 127 V 1 ~;Frequency: 60 Hz;Consumption: 950 VA;Emission, Immunity: FCC class B;Max. Capacity: 48 x 1.5 / 2.0 ml, 6 x 50 ml;Max. RPM: 18,000 min-1;Max. RCF: 31,514;Running Time: 1 - 99 min 59 s, ∞ continuous run, short cycle mode (impulse button);Dimensions: 335 x 650 x 313 mm;Weight: approx. 42 kg;Noise Level: ≤ 59 dB (A) with rotor 1016;Temperatur Control, Infinitely Variable: from -20 to +40°C:

Microliter Tube Package - 90 - Bio-Containment

  • Tube Qty.:
    24
  • Volume (ml):
    1.5 - 2.0
  • RPM:
    ≤ 13,000
  • RCF:
    ≤ 18,516

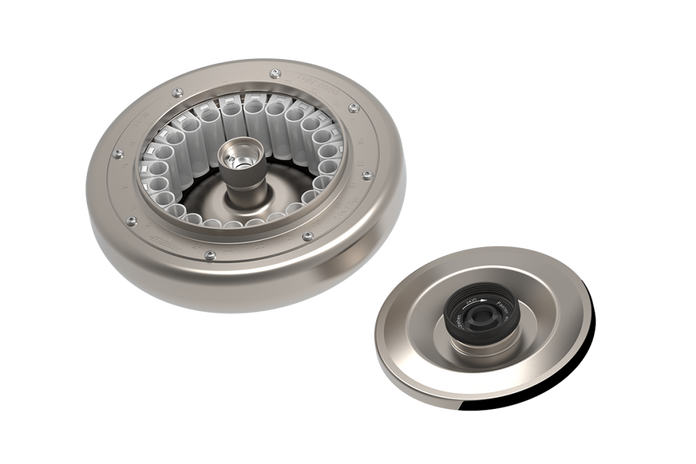

Swing-out Rotor, 24-place

  • Max. RCF:
    18,516
  • Max. RPM:
    13,000 min-1
  • Max. capacity:
    24 x 2 ml
  • Angle:
    90°
  • Standard equipment:
    Incl. Bio-containment lid
  • Cat.No.:
    1154-L
