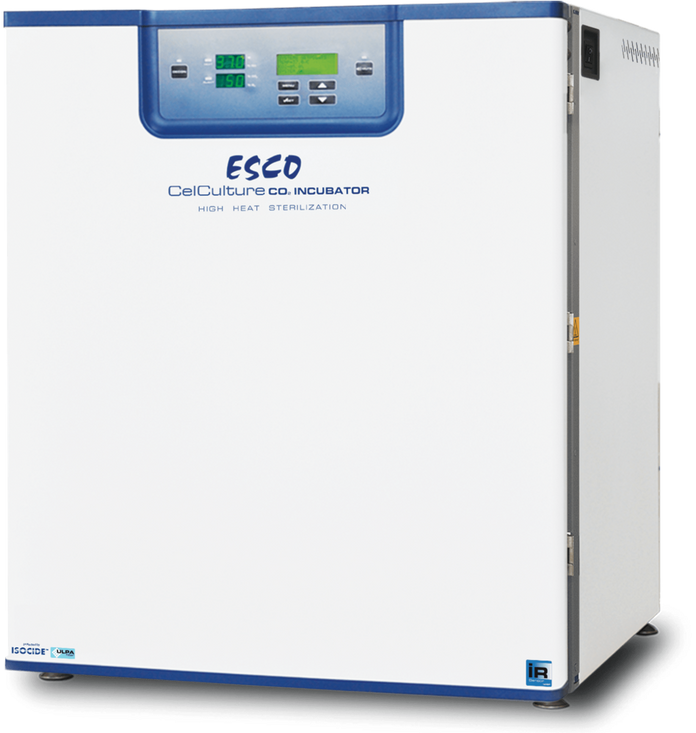

ESCO - CCL-HHS - CelCulture® CO2 Incubator (CCL) High Heat Sterilization
Product Range
| SKU | Name |
|---|---|
| CCL-170B-9-HHS-NF | ESCO - CCL-170B-9-HHS-NF - CelCulture® CO2 Incubator (CCL) High Heat Sterilization |
| CCL-240B-9-HHS-NF | ESCO - CCL-240B-9-HHS-NF - CelCulture® CO2 Incubator (CCL) High Heat Sterilization |
| CCL-240B-9-HHS | ESCO - CCL-240B-9-HHS - CelCulture® CO2 Incubator (CCL) High Heat Sterilization |
| CCL-170B-9-HHS | ESCO - CCL-170B-9-HHS - CelCulture® CO2 Incubator (CCL) High Heat Sterilization |
Features
True leaders rise above the ordinary. Such a statement does not only hold true in the entrepreneurial world, but also in the scientific world. At any aspect of a scientific study, researchers and scientists aspire to discover, innovate, and lead. This is why Esco builds top-of-the-line equipment for every laboratory. We believe that science is meant to lead, motivate, and inspire humanity.
Thus, we present to you the sleek, reliable and intuitive Esco CelCulture® CO2 incubator, designed to bring out the leader in every cell culture laboratory. It provides all-rounded sample protection that brings your scientific dreams one step closer to reality. Various options are available.
Applications
- Neuroscience
- Stem Cell Research
- In Vitro Fertilization
- Tissue Engineering
- Cancer Research
- Mammalian Cell Research
Robust Contamination Control
- SteriSafe™ ULPA filtration ensures air chamber cleanliness
- SwiftCon™ 90˚C validated moist heat decontamination cycle (15 hours)
- In-line filters remove gas impurities and contaminants
Direct Heat and Air Jacket
- Fast and uniform heating
- Rapid temperature recovery
- Air jacket improves chamber stability
Shelving
- Perforated shelving to improve uniformity
- Anti-tip
- Stainless steel
- Built-in grip
Rounded Corners
- Seamless design
- Facilitates easier cleaning
CO₂ Sensor
- IR Sensor
- Single-beam, dual-wavelength IR sensor is drift-free
- CARBOCAP® technology makes it stable for a long time and resistant to high heat
Isocide™ Antimicrobial Powder Coating
- Eliminates 99.9% of surface bacteria within 24 hours of exposure
Specifications
Overview
General Specifications
-
Temperature Control Method:Direct Heat and Air Jacket using Microcontroller PI
-
Ambient Temperature Range:18 to 32°C (64.4 to 89.6°F)
-
Temperature Control Range:Ambient +5 to 60
-
Temperature Uniformity:Standard Unit <± 0.35, Suppressed O2 model <± 0.4
-
Temperature Fluctuation:±0.2
-
Temperature Recovery Time:≤5 minutes
-
CO2 Control System:Microcontroller PI
-
CO2 Control Range:0-19.5
-
CO2 Sensor:Infrared (IR) Sensor
-
O2 Control System:Microcontroller PI
-
O2 Control Range:1-18
-
O2 Fluctuation:± 0.3
-
O2 Sensor:Zirconia O2 Sensor
-
Humidification Method:Humidity pan
-
Humidity Range (at 37°C):85-90
Chamber Construction
-
Main Body:Electrogalvanized steel with Isocide™ antimicrobial coating
-
Interior Material:Stainless steel, type 304
-
Number of Shelves:4
-
Maximum Number of Shelves:7
Electrical Configuration 110-130 VAC, 50/60 Hz
-
Nominal Power at 37°C:42.2 W
