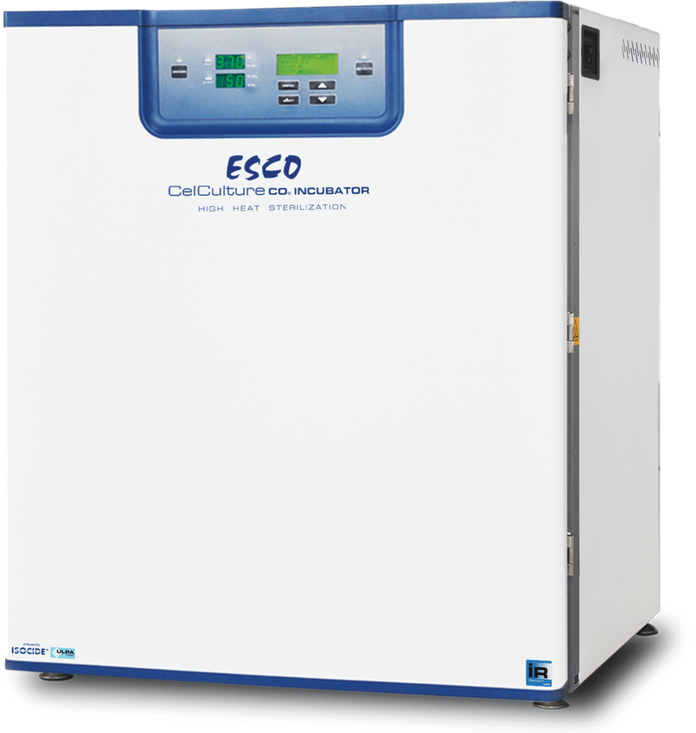

ESCO - CCL-170B-9-HHS - CelCulture® CO2 Incubator (CCL) High Heat Sterilization

ESCO - CCL-170B-9-HHS - CelCulture® CO2 Incubator (CCL) High Heat Sterilization

ESCO - CCL-170B-9-HHS - CelCulture® CO2 Incubator (CCL) High Heat Sterilization

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
CelCulture Incubator 170L IR Sensor CO2 Control, ULPA Filter, 180C High Heat Dry Sterilization, 115VAC, 50/60 Hz.

Features

True leaders rise above the ordinary. Such a statement does not only hold true in the entrepreneurial world, but also in the scientific world. At any aspect of a scientific study, researchers and scientists aspire to discover, innovate, and lead. This is why Esco builds top-of-the-line equipment for every laboratory. We believe that science is meant to lead, motivate, and inspire humanity.



Thus, we present to you the sleek, reliable and intuitive Esco CelCulture® CO₂ incubator, designed to bring out the leader in every cell culture laboratory. It provides all-rounded sample protection that brings your scientific dreams one step closer to reality. Various options are available.



Applications



  • Neuroscience
  • Stem Cell Research
  • In Vitro Fertilization
  • Tissue Engineering
  • Cancer Research
  • Mammalian Cell Research



Robust Contamination Control



  • SteriSafe™ ULPA filtration ensures air chamber cleanliness
  • SwiftCon™ 90˚C validated moist heat decontamination cycle (15 hours)
  • In-line filters remove gas impurities and contaminants



Direct Heat and Air Jacket



  • Fast and uniform heating
  • Rapid temperature recovery
  • Air jacket improves chamber stability



Shelving



  • Perforated shelving to improve uniformity
  • Anti-tip
  • Stainless steel
  • Built-in grip



Rounded Corners



  • Seamless design
  • Facilitates easier cleaning



CO₂ Sensor



  • IR Sensor
  • Single-beam, dual-wavelength IR sensor is drift-free
  • CARBOCAP® technology makes it stable for a long time and resistant to high heat



Isocide™ Antimicrobial Powder Coating



  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Specifications

Overview

  • Nominal Height:
    35.6" (90.42 cm)
  • Nominal Width:
    26" (66.04 cm)
  • Nominal Length:
    26" (66.04 cm)
  • Internal Height:
    24.9" (63.25 cm)
  • Internal Width:
    19.9" (50.55 cm)
  • Internal Length:
    21.1" (53.59 cm)
  • Capacity:
    6

General Specifications

  • Temperature Control Method:
    Direct Heat and Air Jacket using Microcontroller PI
  • Ambient Temperature Range:
    18 to 32°C (64.4 to 89.6°F)
  • Temperature Control Range, °C:
    Ambient +5 to 60
  • Temperature Uniformity, °C:
    Standard Unit <± 0.35, Suppressed O2 model <± 0.4
  • Temperature Fluctuation, °C:
    ±0.2
  • Temperature Recovery Time (after 30 seconds door opening, 98% from initial value):
    ≤5 minutes
  • CO2 Control System:
    Microcontroller PI
  • CO2 Control Range, % CO2:
    0-19.5
  • CO2 Fluctuation, % CO2:
    ± 0.2
  • CO2 Sensor:
    Infrared (IR) Sensor
  • CO2 Recovery Time (after 30 seconds door opening, 98% from initial value):
    At 5.0% CO2 by volume (Standard unit) ≤5 minutes Suppressed O2 model
  • O2 Control System:
    Microcontroller PI
  • O2 Control Range, % O2:
    1-18
  • O2 Fluctuation, % O2:
    ± 0.3
  • O2 Sensor:
    Zirconia O2 Sensor
  • Humidification Method:
    Humidity pan
  • Humidity Range, %RH (at 37°C):
    85-90
  • Shipping Weight:
    140 kg (308.6 lbs)
  • Shipping Dimensions (W x D x H):
    850 x 720 x 1120 mm (33.5” x 28.3” x 44.1”)
  • Shipping Volume:
    0.70 m³ (24.85 ft³)

Chamber Construction

  • Main Body:
    Electrogalvanized steel with Isocide™ antimicrobial coating
  • Interior Material:
    Stainless steel, type 304
  • Number of Shelves:
    4
  • Maximum Number of Shelves:
    7
  • Shelves Dimensions (W x D x H):
    470 x 476 x 16 mm (18.5” x 18.75” x 0.63”)
  • Maximum Load per Shelf:
    11 kg/shelf (24.3 lbs./shelf)

Electrical Configuration 110-130 VAC, 50/60 Hz

  • Nominal Power at 37°C:
    42.2 W
  • Maximum Power Consumption:
    1400 W
  • Full Load Amps:
    10 A
