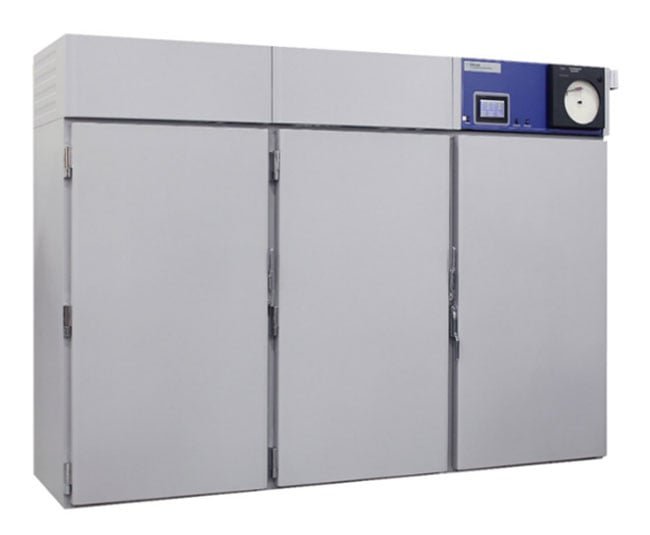

Environmental Specialties LLC - Triplewide Model
Product Range
| SKU | Name |
|---|---|
| ES2000 Model A-TW-Bahnson | Environmental Specialties LLC - ES2000 Model A-TW - Triplewide Warm Temp-Only Chamber 114 Cu. Ft. |
| ES2000 Model AM-TW-Bahnson | Environmental Specialties LLC - ES2000 Model AM-TW - Triplewide Temp + RH Chamber 114 Cu. Ft. |
Features
- Touchscreen LCD controller
- High and low voltage wiring separated for safe servicing (NFPA 70E Compliant)
- 2-way (RS-485) or 1-way (4-20mA) communication to controller
- Horizontal air flow across full vertical height of chamber for uniform distribution
- Integrated refrigeration equipment on top of chamber
- Redundant refrigeration system available upon request
- 3A duplex receptacle available upon request
- Chart recorder available upon request
- Class I Div 2 construction available upon request
- Electrofin coil coating for corrosive environments available upon request
- Internal lighting available upon request
- UPS available upon request
- 20-year design life
- MET listed
- Warranty: 12 months parts and labor
Specifications
Overview
-
Nominal Height:91.5" (232.41 cm)
-
Nominal Width:123" (312.42 cm)
-
Nominal Length:34.5" (87.63 cm)
-
Internal Height:60" (152.4 cm)
-
Internal Width:116" (294.64 cm)
-
Internal Length:28.5" (72.39 cm)
-
Capacity:114.8
Technical Data
-
Volumetric Uniformity:±1.0°C, ±.5.0% RH
-
4-Wire Electrical Volts/Ø/Amps:208-230 / 1 / 30
-
Shelves Std/Max:12/57
Downloads
-
Literature & Manuals - Bahnson Environmental Specialties Reach-In Chamber BrochureDownload
