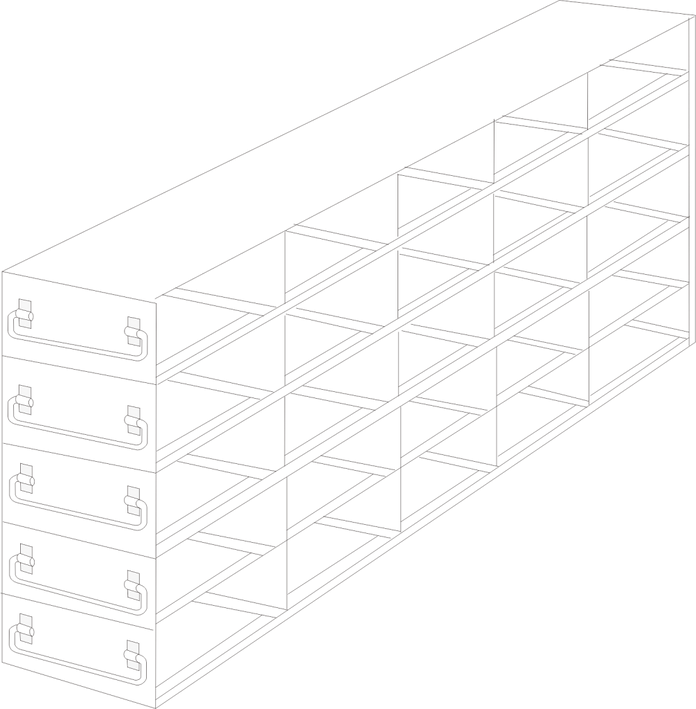

UFDMX-552 - Drawer Freezer Rack for SBS Formatted Boxes, 5x5 Configuration

Features
Upright Freezer Drawer Rack
For Matrix
1.0ml Screw-Top Latch Rack (H=2 1/8 inch / 54.8mm)
For Micronic
Roborack-96 with High Cover (H=2 1/4 inch / 56.1mm)
For Fluidx
96-Format Rack for Tube with Protective Jacket with Tall Profile Lid (H=2 3/16 inch / 55mm)
24-Format Rack (H=2 1/4 inch / 56mm)
96-Format Rack for 1.0ml and 1.4ml Tube with Tall Profile Lid (H=2 7/16 inch / 61.8mm)
For Abgene
1.2ml 2D Barcoded Tube in Stackable Rack (H=2 1/4 inch / 56.13mm)
1.2ml 2D Barcoded Storage Tube Rack (H=2 1/4 inch / 56.13mm)
- Made of corrosion resistant stainless steel.
- Drawer racks allow easy access to and storage of samples without having to remove the whole rack from the freezer.
Specifications
Overview
-
Nominal Height:13.19" (33.5 cm)
-
Nominal Width:5.44" (13.82 cm)
-
Nominal Length:17.88" (45.42 cm)
Technical Data
-

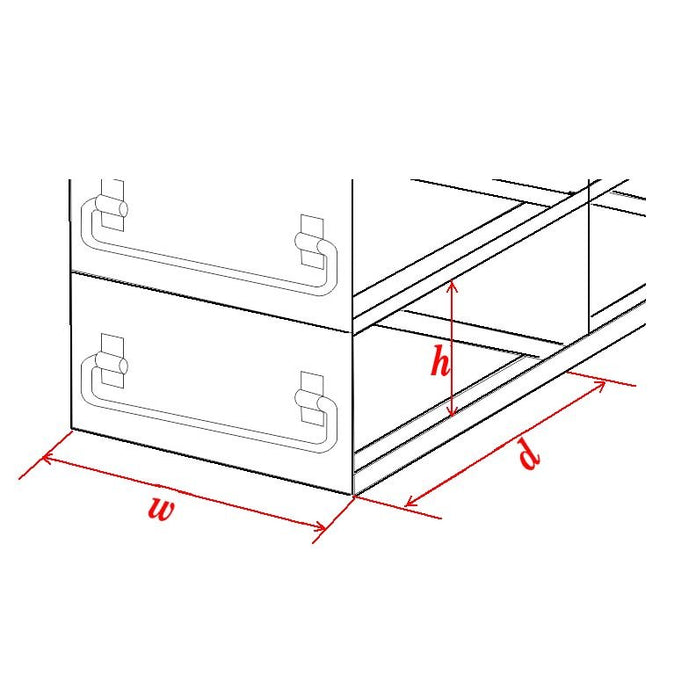

Compartment Size (l x h x w):3.44 x 2.44 x 5.06 inch (88 x 62.4 x 129 mm)
-
Capacity:5x5 = 25
-
Shipping Weight (lb) (Kg):12.7 (5.78)
