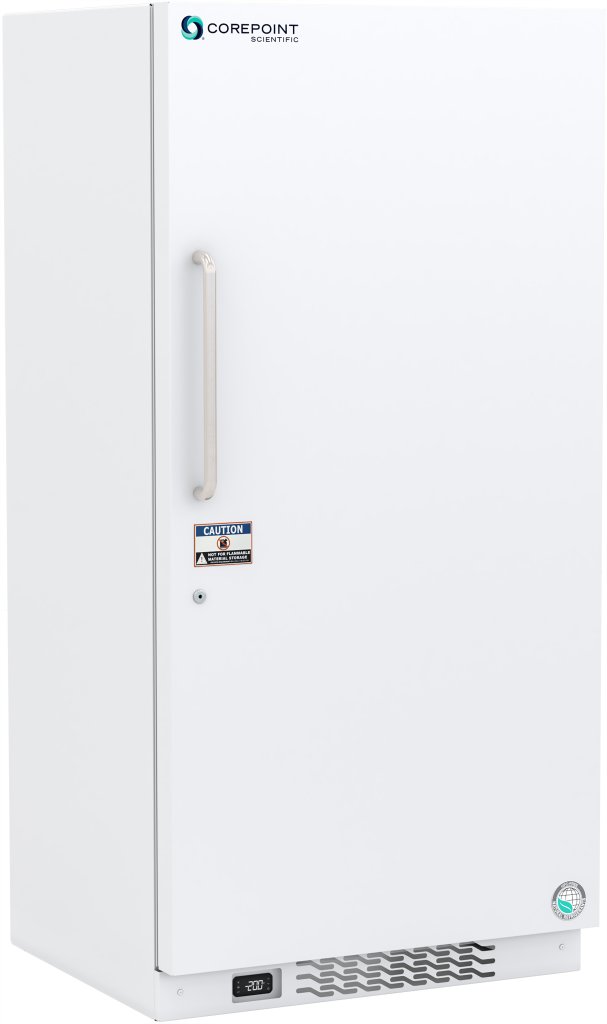

Corepoint Scientific - CPS-HC-MFS-30 - 30 Cu. Ft. Standard Manual Defrost Laboratory Freezer with Natural Refrigerants

Corepoint Scientific - CPS-HC-MFS-30 - 30 Cu. Ft. Standard Manual Defrost Laboratory Freezer with Natural Refrigerants
Corepoint Scientific - CPS-HC-MFS-30 - 30 Cu. Ft. Standard Manual Defrost Laboratory Freezer with Natural Refrigerants

Corepoint Scientific - CPS-HC-MFS-30 - 30 Cu. Ft. Standard Manual Defrost Laboratory Freezer with Natural Refrigerants

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
This standard manual defrost freezer offers 30 cubic feet of versatile storage for laboratory environments.

Features

The temperature control is powered by microprocessor technology, protecting samples down to -25°C. A series of audible and visual alarms safeguards stored contents. Utilizing hydrocarbon refrigerants, this unit meets EPA SNAP compliance, protecting environmental safety. With low energy consumption and environmental benefits, this model is an efficient and dependable solution for general laboratory applications.

Specifications

Overview

  • Nominal Height:
    72.5" (184.15 cm)
  • Nominal Width:
    35.75" (90.81 cm)
  • Nominal Length:
    35.5" (90.17 cm)
  • Internal Height:
    61.75" (156.85 cm)
  • Internal Width:
    32" (81.28 cm)
  • Internal Length:
    22.5" (57.15 cm)
  • Capacity:
    30

General Description and Application

  • Door:
    One (1) solid swing, right hinged, stainless steel door handle, magnetic door gasket
  • Shelves:

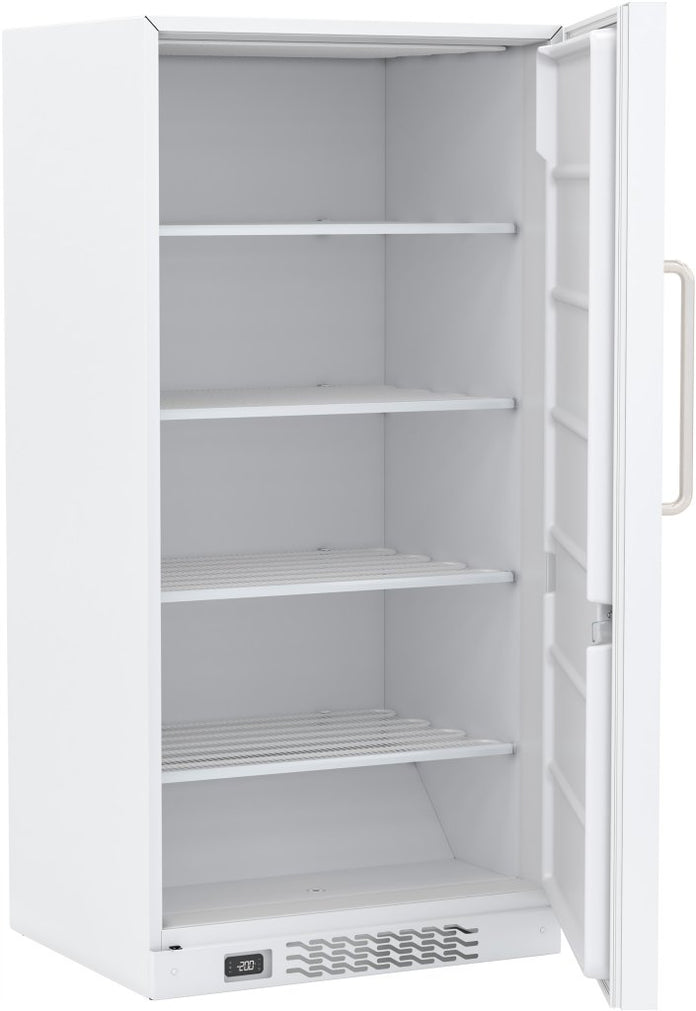

    Four (4) fixed evaporator shelves
  • Mounting and Installation:
    Leveling legs
  • External Probe Access:
    3/4" Probe access port on rear wall
  • Insulation:
    EPA Compliant high density urethane foam
  • Exterior Materials:
    Powder coated steel
  • Access Control:
    Keyed door lock
  • General Warranty:
    Two (2) year parts and labor warranty
  • Compressor Warranty:
    Five (5) year compressor parts warranty
  • Product Weight (lbs):
    300
  • Shipping Weight (lbs):
    330
  • Rated Amperage:
    3.3 Amps
  • Power Plug/Power Cord:
    NEMA 5-15P plug, 6 ft long cord
  • Facility Electrical Requirement:
    110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
  • Agency Listing and Certification:
    UL listed per UL 60335-1 and UL 60335-2-89 standards, c UL listed per CSA C22.2 No. 120 standard

Performance

  • Uniformity (Cabinet Air):
    +/- 3°C
  • Stability (Cabinet Air):
    +/- 3°C
  • Maximum Temperature Variation (Cabinet Air):
    7°C Total
  • Energy Consumption (kWh/day):
    4.9 kWh/day
  • Average Heat Rejection (BTU/hr):
    690 BTU/hr
  • Pull Down Time to Nominal Operating Temp:
    65 min (empty)

Refrigeration System

  • Compressor:
    Hermetic, variable speed
  • Refrigerant:
    EPA SNAP compliant R290 propane
  • Condenser:
    Static - exterior walls of cabinet with auxiliary fan
  • Evaporator:
    Evaporator shelves
  • Defrost:
    Manual defrost
