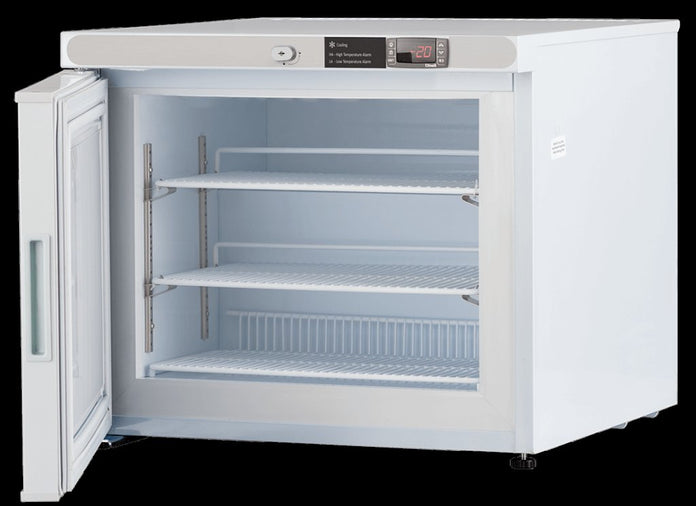

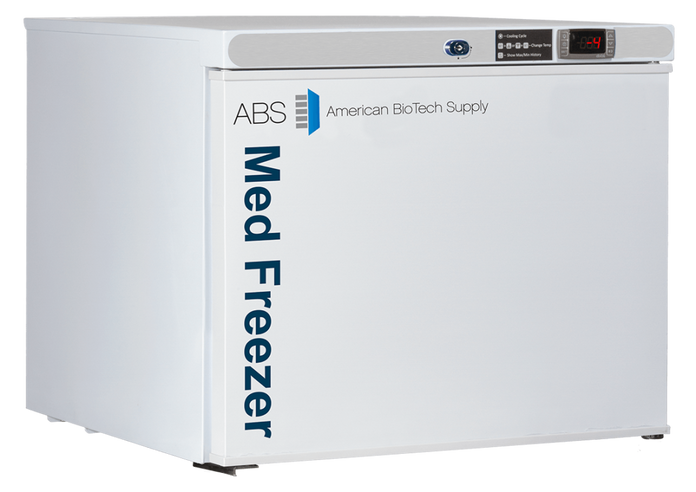

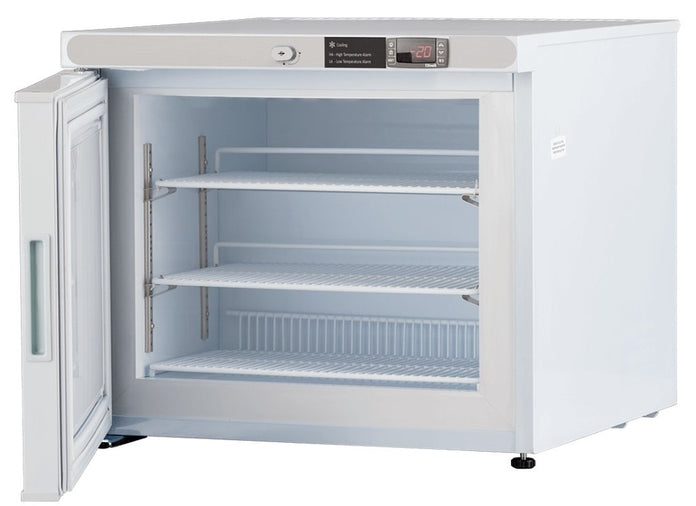

American Biotech Supply - PH-ABT-HC-UCFS-0120-LH - 1.7 Cu. Ft. Capacity Premier Pharmacy/Vaccine Countertop Laboratory Freezer Freestanding, Left Hinged

American Biotech Supply - PH-ABT-HC-UCFS-0120-LH - 1.7 Cu. Ft. Capacity Premier Pharmacy/Vaccine Countertop Laboratory Freezer Freestanding, Left Hinged
American Biotech Supply - PH-ABT-HC-UCFS-0120-LH - 1.7 Cu. Ft. Capacity Premier Pharmacy/Vaccine Countertop Laboratory Freezer Freestanding, Left Hinged

American Biotech Supply - PH-ABT-HC-UCFS-0120-LH - 1.7 Cu. Ft. Capacity Premier Pharmacy/Vaccine Countertop Laboratory Freezer Freestanding, Left Hinged

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The Premier Pharmacy Freestanding Undercounter Freezers feature a microprocessor temperature controller and display, allow for precise temperature control, verification and recovery versus mechanical style thermostats. Critical samples and supplies are security backed with an extensive package of audible and visual alarms.

Features

Periodic defrosting is required.



The Freestanding models ("UCFS") require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating, and possible failure.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Details



  • 2 adjustable shelves with guard rail to prevent product from being pushed against back wall
  • Bottom footed shelf to allow air circulation
  • Vaccine storage power cord warning label
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Leveling legs
  • Integrated door handle
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Pharmacy refrigerator/freezer toolkit and temperature logs
  • Two year parts and labor warranty, plus an additional three year compressor parts only warranty
  • Pyxis®, Omnicell® and AcuDose RX® compatible
  • Note:This unit must have 4" clearance on sides and back for adequate ventilation.

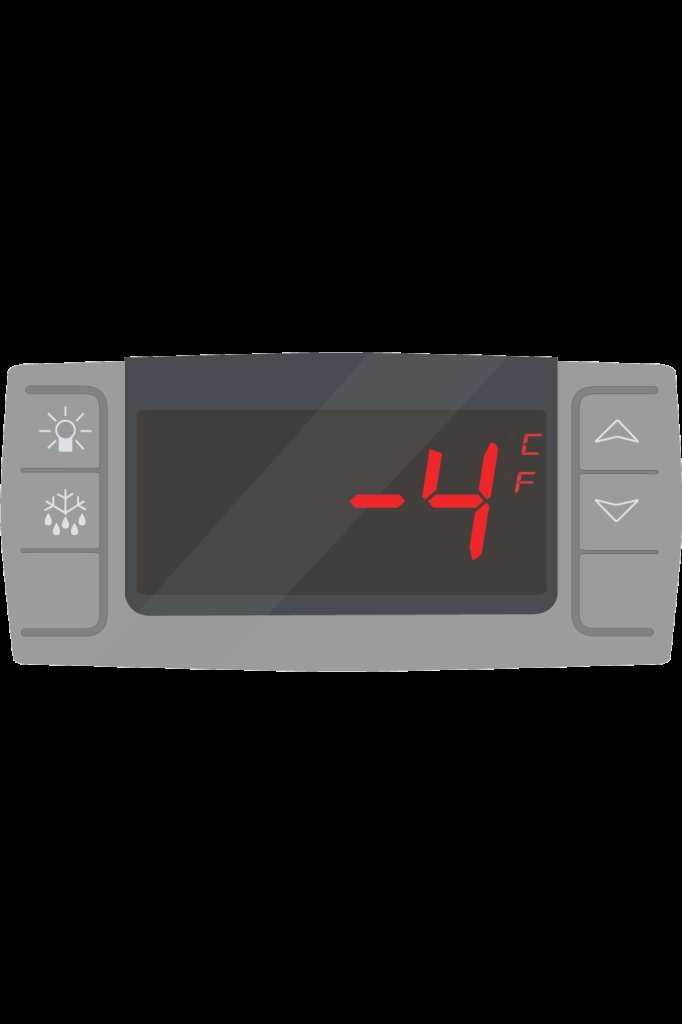

Temp Controller



  • Microprocessor temperature controller
  • Digital temperature display
  • Audible and visual high and low temperature alarms
  • Remote alarm contacts
  • 2 probes; 1 in air and 1 in glycol bottle
  • Adjustable operating temperature range: 5°F to -13°F (-15°C to -25°C)
  • Calibrated using a NIST traceable device, certificate included

Specifications

Overview

  • Nominal Height:
    20.38" (51.77 cm)
  • Nominal Width:
    23.63" (60.02 cm)
  • Nominal Length:
    24" (60.96 cm)
  • Internal Height:
    13.88" (35.26 cm)
  • Internal Width:
    17.75" (45.09 cm)
  • Internal Length:
    16" (40.64 cm)
  • Capacity:
    1.7

Technical Data

  • Defrost:
    Manual
  • Door:
    1 Solid LH
  • Int Door:
    0
  • Shelves:
    2 Adj + Footed Bottom
  • Refrigerant:
    R600a
  • H.P.:
    0.125
  • Amps:
    1
  • Weight:
    80 lbs.
  • Shipping Weight:
    106 lbs.
