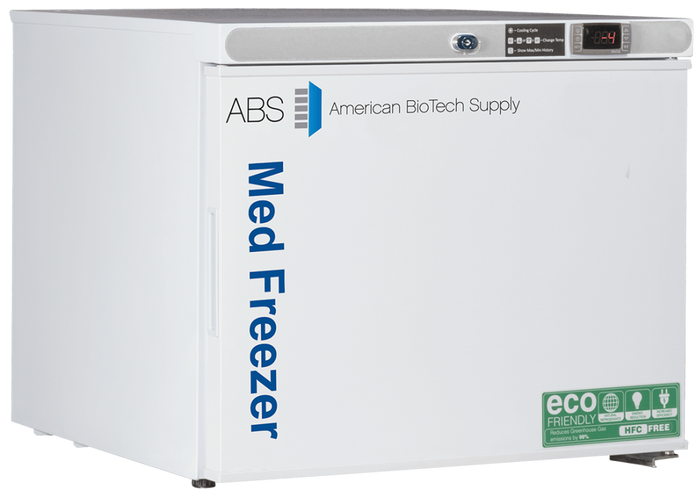

American Biotech Supply - PH-ABT-HC-UCFS-0120 - 1.7 Cu. Ft. Capacity Premier Pharmacy/Vaccine Countertop Laboratory Freezer Freestanding

Product Range
| SKU | Name |
|---|---|
| PH-ABT-HC-UCFS-0120A | American Biotech Supply - PH-ABT-HC-UCFS-0120A - 1.3 Cu. Ft. Capacity Premier Pharmacy/Vaccine Countertop Auto Defrost Freezer Freestanding |
| PH-ABT-HC-UCFS-0120A-LH | American Biotech Supply - PH-ABT-HC-UCFS-0120A-LH - 1.3 Cu. Ft. Capacity Premier Pharmacy/Vaccine Countertop Auto Defrost Freezer Freestanding, Left Hinged |
| PH-ABT-HC-UCFS-0120-LH | American Biotech Supply - PH-ABT-HC-UCFS-0120-LH - 1.7 Cu. Ft. Capacity Premier Pharmacy/Vaccine Countertop Laboratory Freezer Freestanding, Left Hinged |
| PH-ABT-HC-UCFS-0120A-CAD | American Biotech Supply - PH-ABT-HC-UCFS-0120A-CAD - 1 Cu. Ft. Pharmacy Countertop Controlled Auto Defrost Freezer Freestanding |
Features
Periodic defrosting is required.
The Freestanding models ("UCFS") require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating, and possible failure.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details

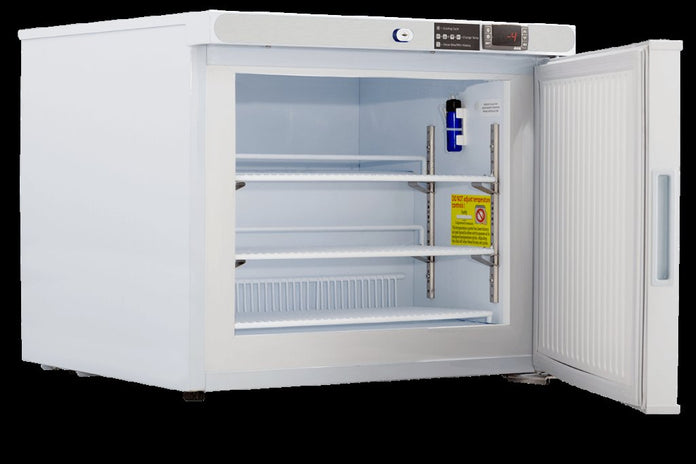

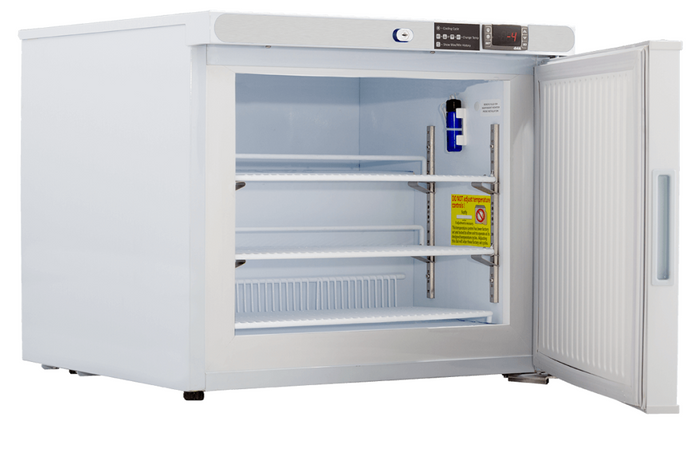

- 2 adjustable shelves with guard rail to prevent product from being pushed against back wall
- Bottom footed shelf to allow air circulation
- Vaccine storage power cord warning label
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- Integrated door handle
- HFC-free refrigerant (R600a), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two year parts and labor warranty, plus an additional three year compressor parts only warranty
- Pyxis®, Omnicell® and AcuDose RX® compatible
- Note: This unit must have 4" clearance on sides and back for adequate ventilation.
Temp Controller

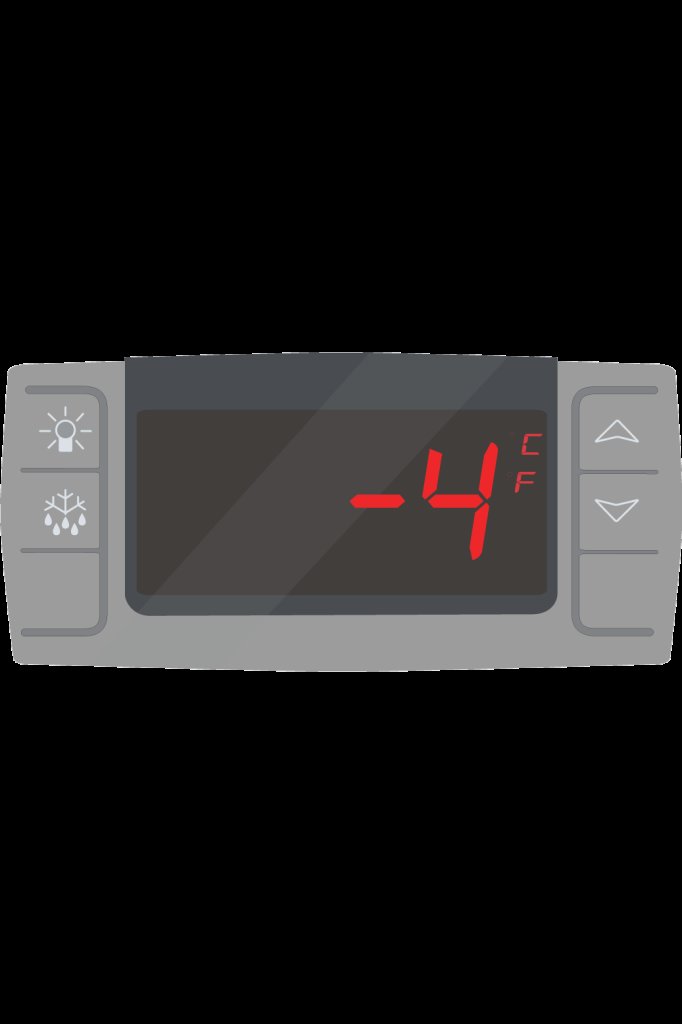

- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes; 1 in air and 1 in glycol bottle
- Adjustable operating temperature range: 5°F to -13°F (-15°C to -25°C)
- Calibrated using a NIST traceable device, certificate included
Specifications
Overview
-
Nominal Height:20.38" (51.77 cm)
-
Nominal Width:23.63" (60.02 cm)
-
Nominal Length:24" (60.96 cm)
-
Internal Height:13.88" (35.26 cm)
-
Internal Width:17.75" (45.09 cm)
-
Internal Length:16" (40.64 cm)
-
Capacity:1.7
Technical Data
-
Defrost:Manual
-
Door:1 Solid
-
Int Door:0
-
Shelves:2 Adj + Footed Bottom
-
Refrigerant:R600a
-
H.P.:0.125
-
Amps:1
-
Weight:80 lbs.
-
Shipping Weight:106 lbs.
Drawings
-
PH-ABT-HC-UCFS-0120 Ext CutsheetVisit Link
-
PH-ABT-HC-UCFS-0120 Int CutsheetVisit Link
Useful Links
-
PH-ABT-HC-UCFS-0120 SpecSheetVisit Link
-
ABS Natural Refrigerants FlyerVisit Link
