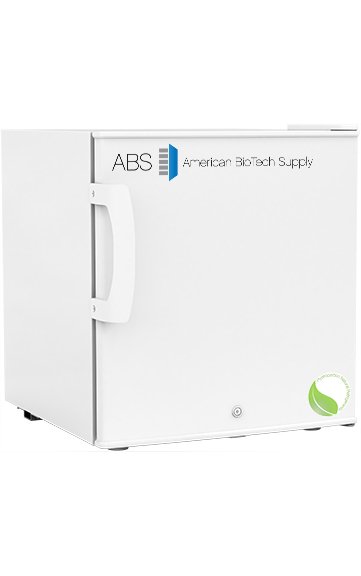

American Biotech Supply - ABT-HC-UCFS-0220M - 1.5 Cu. Ft. General Purpose Undercounter Freestanding Freezer

American Biotech Supply - ABT-HC-UCFS-0220M - 1.5 Cu. Ft. General Purpose Undercounter Freestanding Freezer
American Biotech Supply - ABT-HC-UCFS-0220M - 1.5 Cu. Ft. General Purpose Undercounter Freestanding Freezer

American Biotech Supply - ABT-HC-UCFS-0220M - 1.5 Cu. Ft. General Purpose Undercounter Freestanding Freezer

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The General Purpose Free Standing Undercounter Freezers are intended for general purpose applications only where precise temperature control and maintenance are not essential and there are no requirements for temperature alarms.

Features

Freestanding models ("UCFS") require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Detail

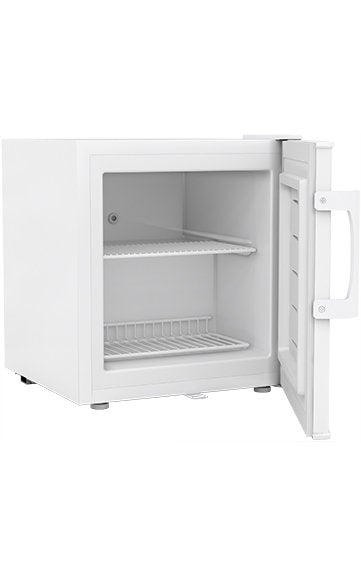

  • One fixed shelf upper/ bottom footed shelf for airflow management
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • Leveling legs
  • High density urethane foam cabinet and door insulation
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • One year parts and labor warranty



Temp Controller



  • Controller technology: Mechanical Thermostat
  • Average Cycle Temperature: -20°C

Specifications

Overview

  • Nominal Height:
    19.25" (48.9 cm)
  • Nominal Width:
    17.5" (44.45 cm)
  • Nominal Length:
    19.5" (49.53 cm)
  • Internal Height:
    13.75" (34.93 cm)
  • Internal Width:
    13" (33.02 cm)
  • Internal Length:
    13.88" (35.26 cm)
  • Capacity:
    1.5

General Description and Application

  • Door:
    One solid swing door, right hinged
  • Shelves:
    1 fixed shelf upper / bottom footed shelf for airflow management
  • Freezer Compartments:
    1
  • Baskets:
    Non-applicable
  • Mounting:
    Leveling Legs
  • Interior Lighting:
    Non-applicable
  • Airflow Management:
    Non-applicable
  • External Probe Access:
    Rear wall port (3/4" dia.)
  • Insulation:
    Cabinet is foamed-in-place with EPA compliant high density urethane foam
  • Exterior Materials:
    White powder coated steel
  • Access Control:
    Keyed Door Lock
  • Product Weight (lbs):
    35
  • Shipping Weight (lbs):
    40
  • Rated Amperage:
    0.8 Amps
  • Power Plug/Power Cord:
    NEMA 5-15 Plug, 8-10 ft. typical, conforms to UL471 requirements
  • Facility Electrical Requirement:
    110-120V AC - 15 A (minimum)
  • General Warranty:
    One (1) year parts and labor warranty

Refrigeration System

  • Refrigerant:
    R600a
  • Defrost:
    Manual Defrost
