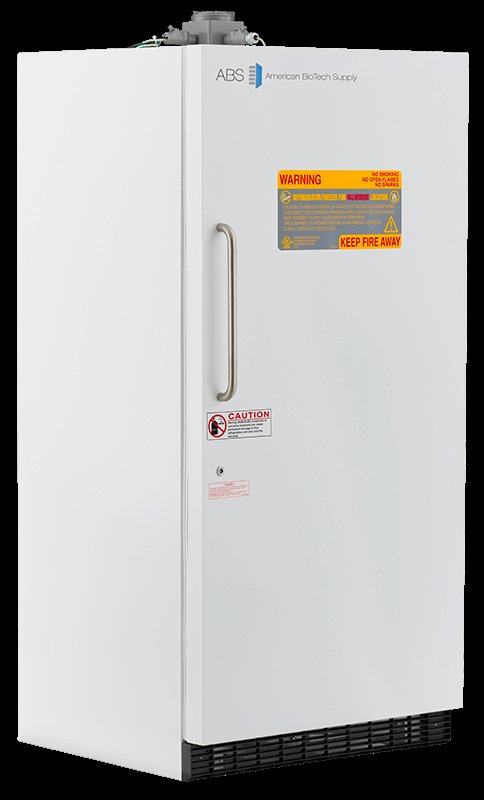

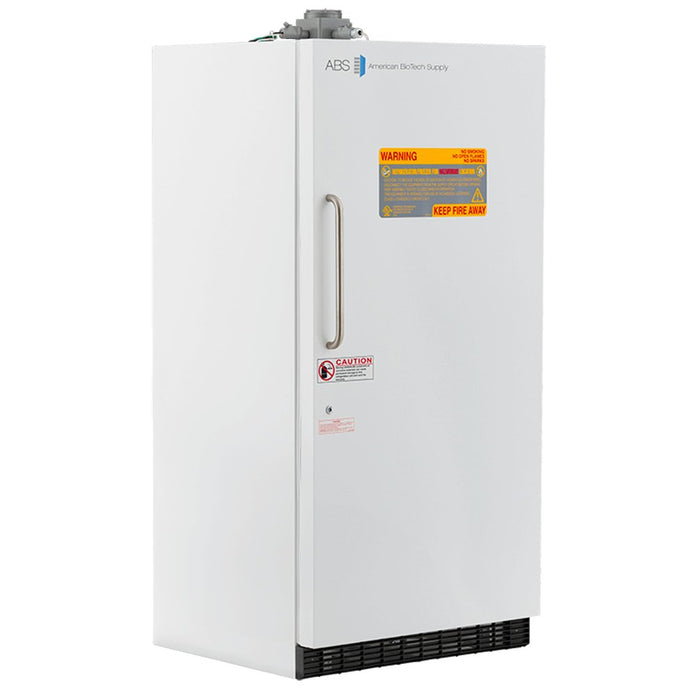

American Biotech Supply (ABS) - ABT-EFS-30 - 30 Cu. Ft. General Purpose Hazardous Location Freezer
Features
All spark generating electrical components and connections (compressor, thermostat) are isolated and sealed in vapor-proof enclosures. Electrical wiring is hardwired for additional safety measures.
Power cord is not included. Final power connections at site must be hardwired to meet local codes.
Periodic Manual Defrosting is required.
Details
- 30 Cu. Ft. Capacity

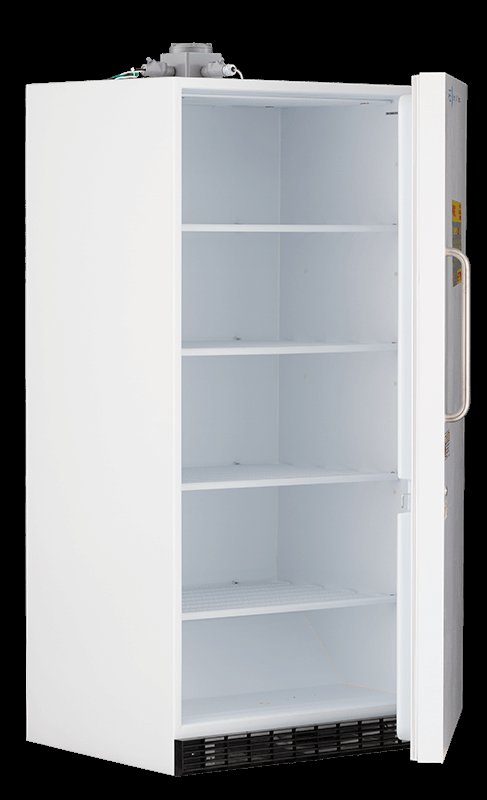

- Four fixed shelves
- Keyed door lock
- Magnetic door gasket for positive seal
- Stainless steel door handle
- Leveling legs
- CFC-free refrigerant (R404a), foam insulation and packaging
- One year parts and labor warranty
- Meet NFPA and OSHA guidelines for hazardous locations, Class 1, Division II, Groups C & D.
- These units are not intended for use in general clinical or research laboratories.
Temp Controller
- Mechanical thermostat sealed in UL listed explosion proof box
- Adjustable operating temperature range: -15°C to -25°C
Specifications
Overview
-
Nominal Height:77.50" (196.85 cm)
-
Nominal Width:35.00" (88.9 cm)
-
Nominal Length:35.75" (90.81 cm)
-
Internal Height:65.00" (165.1 cm)
-
Internal Width:22.50" (57.15 cm)
-
Internal Length:32.00" (81.28 cm)
-
Capacity:30
Technical Data
-
Defrost:Manual
-
Door:1 Solid
-
Int Door:0
-
Shelves:4 Fixed
-
Refrigerant:R404a
-
H.P.:1/3
-
Amps:6
-
Weight:330 lbs.
Drawings
-
ABT-EFS-30 Ext Cut SheetVisit Link
-
ABT-EFS-30 Int Cut SheetVisit Link
Useful Links
-
Manual 21642 Hazardous LocationsVisit Link
