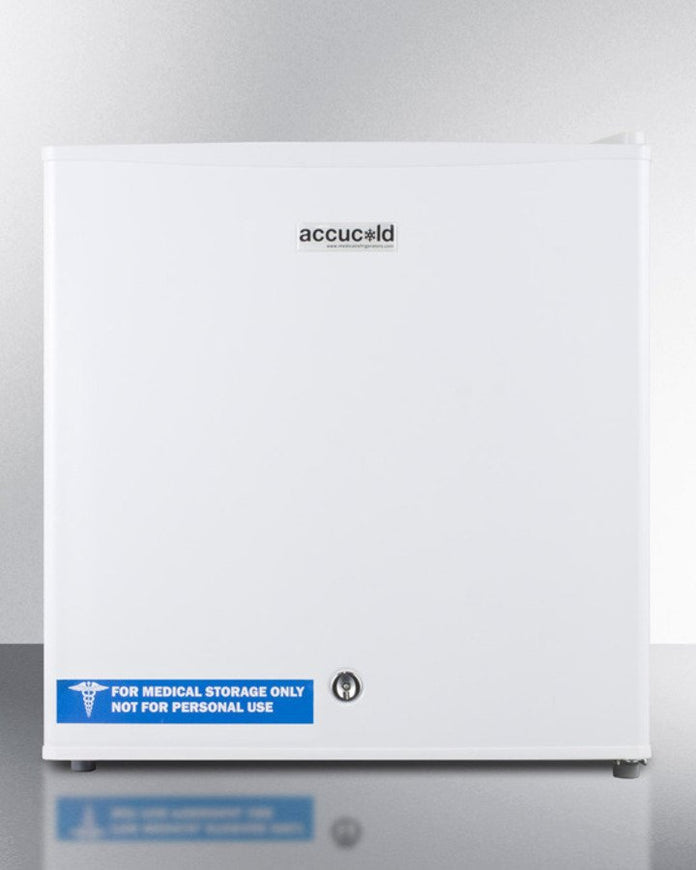

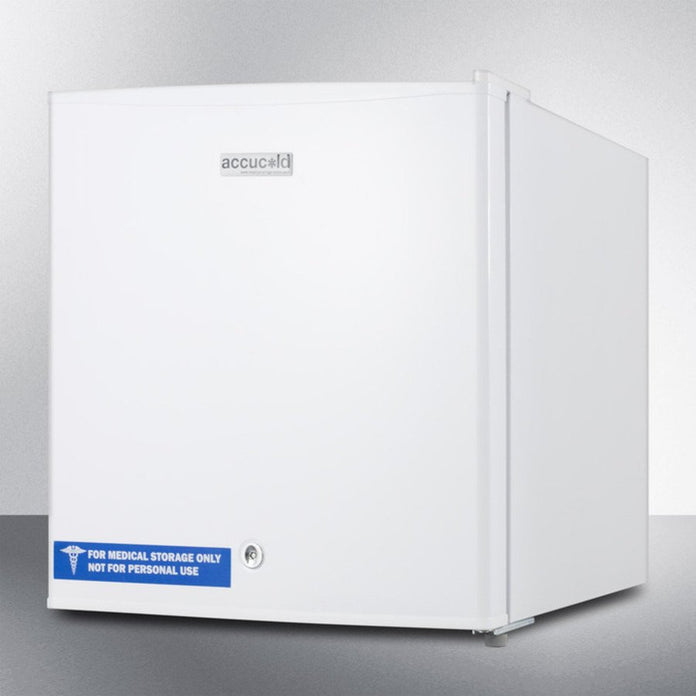

Accucold - FS24LVACLHD - Compact All-Freezer, Left Hand Door

Features
The Accucold® VAC Series freezers are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.
The FS24LVACLHD is a compact all-freezer designed to reach -20° C, the ideal temperature for long-term storage of select sensitive materials. The 1.4 cu.ft. manual defrost interior offers static cooling for stable results. A removable wire shelf allows easy storage options, with a seamless interior liner to simplify cleanup. This unit has a flat door liner as recommended by the CDC.
For optimum temperature assurance, the FS24LVACLHD includes a digital thermostat and a high/low temperature alarm with a NIST calibrated temperature display to the nearest tenth of a degree. A hospital grade cord includes a 'green dot' plug for added safety in high traffic settings, while the self-closing door ensures stored items aren't accidentally exposed to room temperature. This model comes in a white finish and includes a factory installed lock. A pre-installed probe hole/access port allows users to install additional monitoring equipment.
NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.
Compact dimensions
Ideal size for use on top of counters
-20° capable
Low temperature capability ideal for certain sensitive items
Digital thermostat
Electronic controls for more precise temperature management
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display
Alarm includes NIST calibrated display of the current interior and high/low temperature to the nearest tenth of a degree
Factory installed lock
Keyed lock for secure interior
Self-closing door
Door closes automatically when opened at angles less than 90º
3/8" access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Manual defrost
Static cooling system for reduced temperature fluctuations

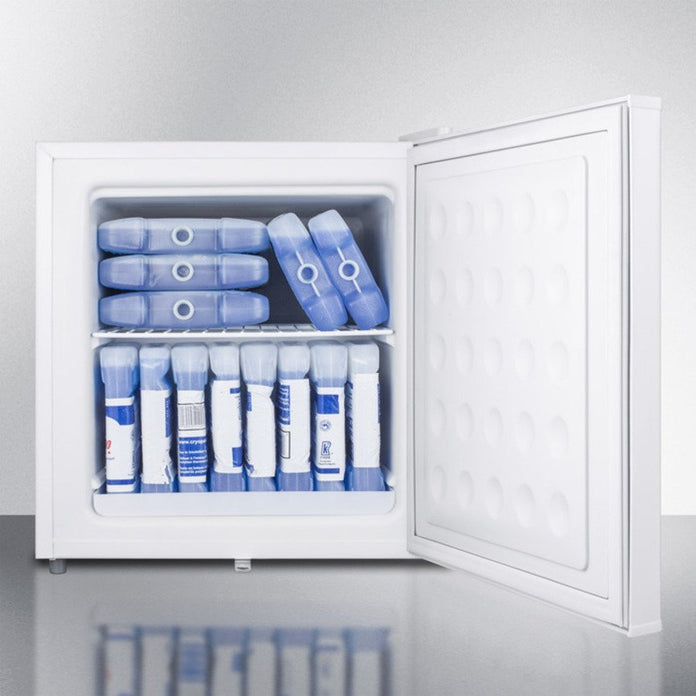

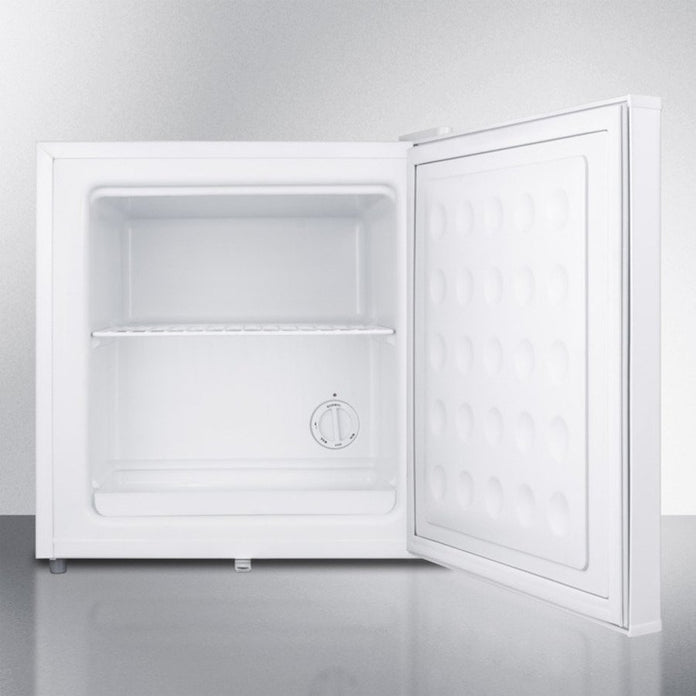

Removable shelf
Includes one wire shelf for easier storage
One-piece interior liner
Seamless interior for easier cleanup
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Factory reversible door
Standard unit ships RHD but can be ordered LHD
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
-
Nominal Height:22" (55.88 cm)
-
Nominal Width:19" (48.26 cm)
-
Nominal Length:18" (45.72 cm)
-
Internal Height:14.38" (36.53 cm)
-
Internal Width:13.5" (34.29 cm)
-
Internal Length:13.25" (33.66 cm)
-
Capacity:1.4
Overview
-
Height of Cabinet:21.38" (54 cm)
-
Width:18.5" (47 cm)
-
Depth:17.63" (45 cm)
-
Depth with Door at 90°:34.5" (88 cm)
-
Defrost Type:Manual
-
Door:White
-
Cabinet:White
-
US Electrical Safety:ETL
-
Canadian Electrical Safety:ETL-C
-
Amps:1.0
-
Voltage/Frequency:115 V AC/60 Hz
-
Weight:35.0 lbs. (16 kg)
-
Parts & Labor Warranty:2 Years
-
Compressor Warranty:5 Years
Freezer
-
Door Swing:LHD
-
Reversible:Factory Reversible
-
Shelf Type:Wire
-
Shelf Qty:1
-
Thermostat Type:Digital
-
Refrigerant Type:R600a
-
Refrigerant Amount:0.8 oz.
-
High Side PSI:110.0
-
Low Side PSI:70.0
-
Level Legs:2
-
Compressor Step Height:8.5" (22 cm)
-
Compressor Step Width:13.5" (34 cm)
-
Compressor Step Depth:6.0" (15 cm)
