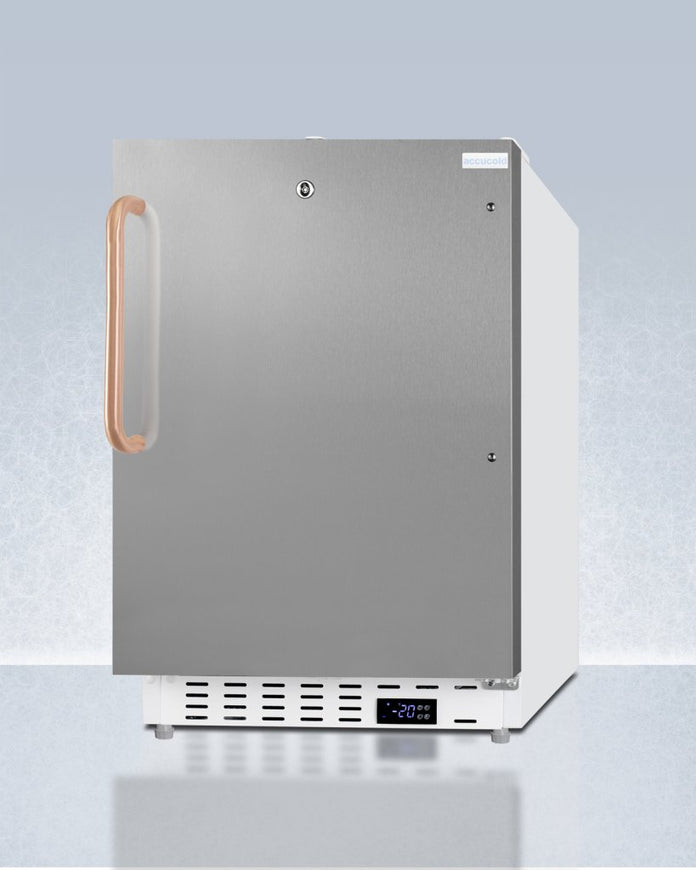

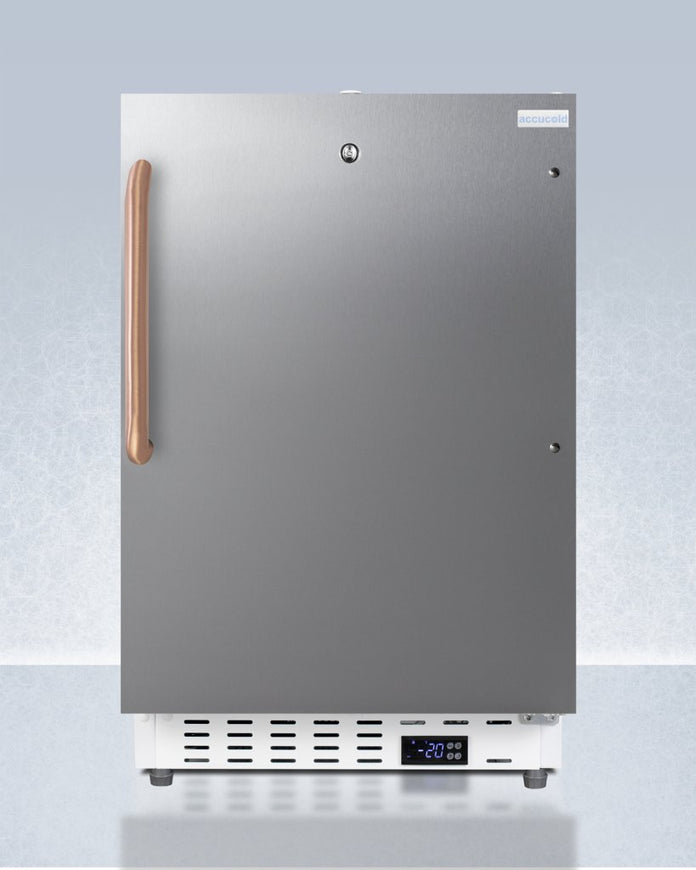

Slim-fitting ADA compliant undercounter freezer ideal for providing extra storage to small-spaced medical settings, with a pure copper handle for added protection from bacteria.

Features

Accucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for the safe storage of select vaccines, pharmaceuticals, and other materials with strict storage conditions.



The ADA305AFSSTBC is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user reversible stainless steel door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal.



The ADA305AFSSTBC includes a factory-installed towel bar style handle made from pure copper. Through its natural antimicrobial properties, copper will kill microbes, including viruses, in a shorter timeframe than most other metal surfaces allowing for a safer, cleaner user experience.



Inside, the ADA305AFSSTBC can reach temperatures as low as -25°C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.



Sized at just under 20" wide, the ADA305AFSSTBC makes an ideal choice for various facilities in need of a dependable freezer capable of -20°C/-25°C operation. For a complete set, pair this unit with the matching ADA404REFSSTBC all-refrigerator.



NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.



ADA compliant design

32" height allows easy installation under lower ADA compliant counters



-25°C capable

Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials



Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

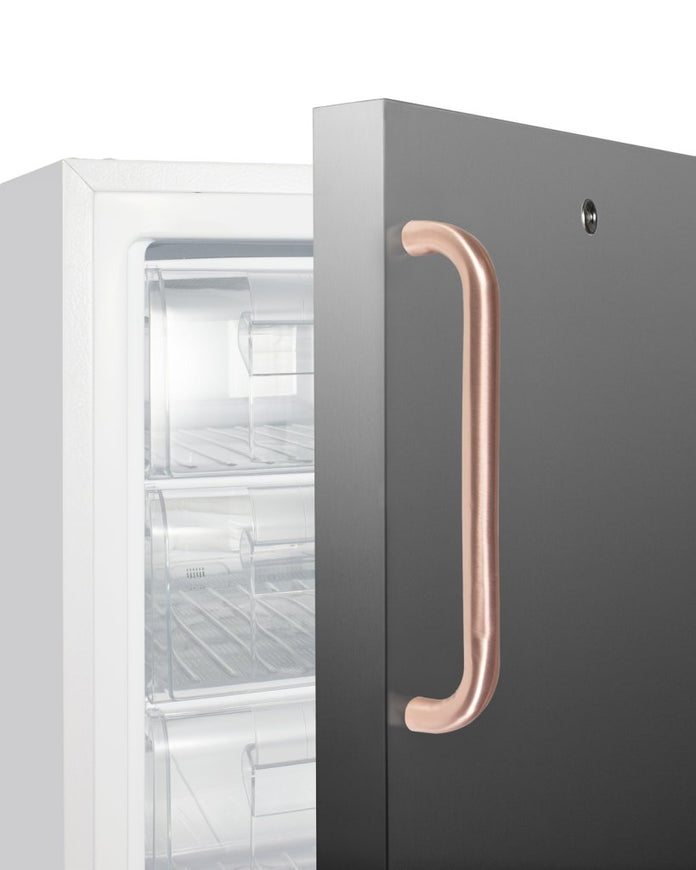

Copper handle

Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness



Factory-installed lock

Located towards the top of the door for easy access and to provide added security of unit (2 keys included)



Access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

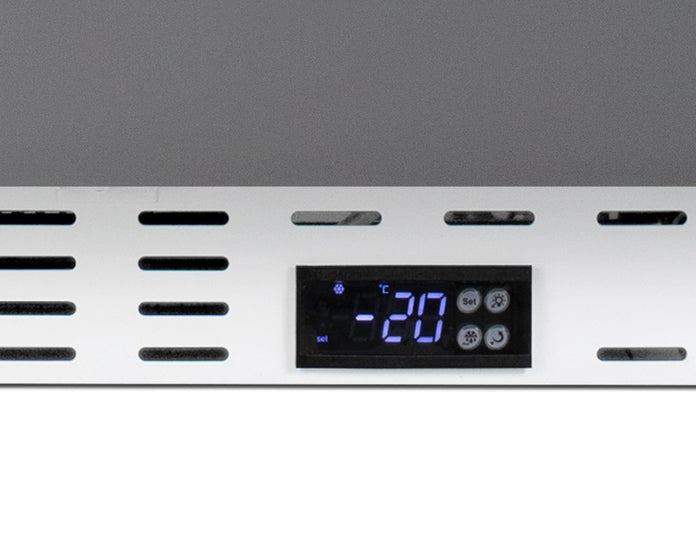

Adjustable digital thermostat

Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

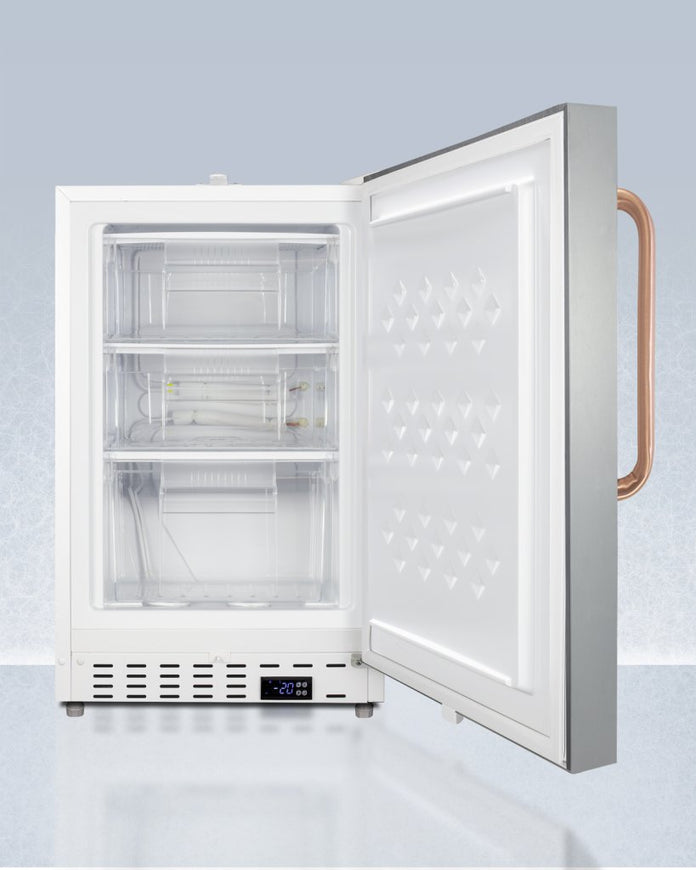

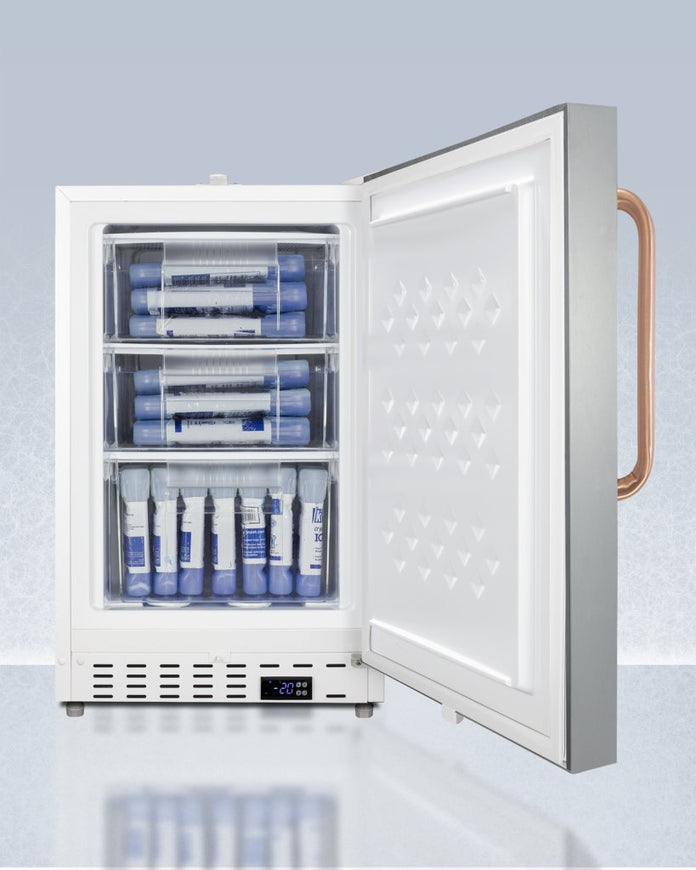

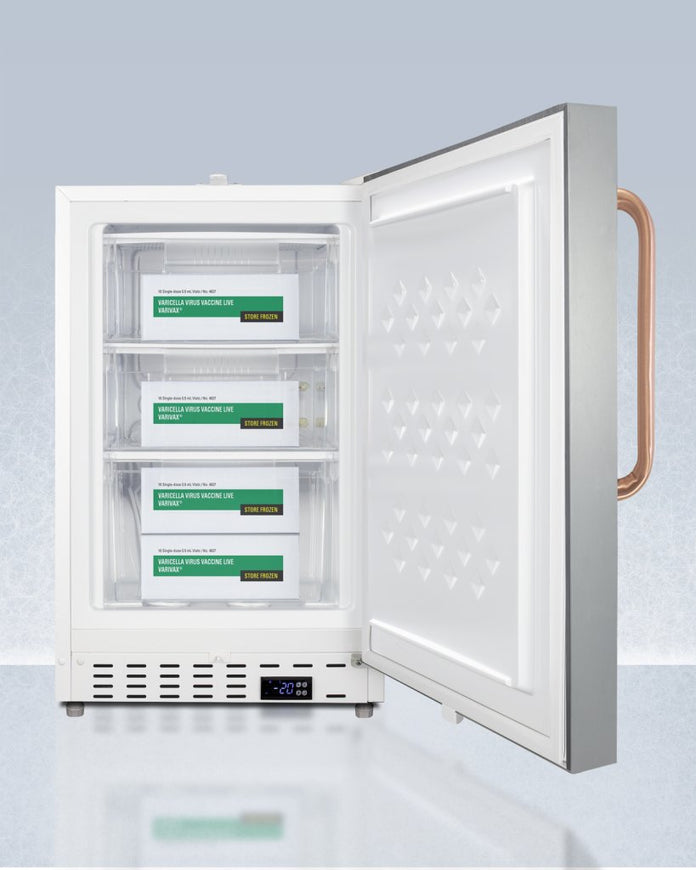

Basket shelves

Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened



3" thick door

Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space



Temperature alarms

User-set high/low temperature alarms provide added security if temperature goes beyond setpoint



Open door alarm

Audible alarm will sound if the door is left ajar for over a minute

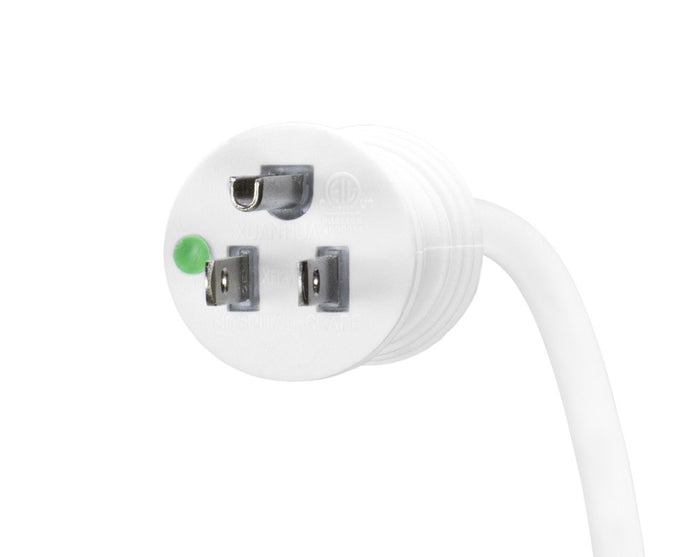

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety



Manual defrost

More temperature stability with an energy efficient manual defrost system



Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials



No internal fans

Temperature remains more stable with a static cooling system



Reversible stainless steel door

User-reversible stainless steel door for added flexibility to best accommodate your setting



Sealed back

Space-saving design that offers easier cleanability



Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance



Matching all-refrigerator

This unit can be paired with the ADA404REFSSTBC all-refrigerator for a complete set



Fully finished white cabinet

Allows the unit to be freestanding



100% CFC free

Environmentally friendly design without ozone-damaging chemicals



CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

  • Nominal Height:
    32" (81.28 cm)
  • Nominal Width:
    20" (50.8 cm)
  • Nominal Length:
    23" (58.42 cm)
  • Internal Height:
    23.75" (60.33 cm)
  • Internal Width:
    14.5" (36.83 cm)
  • Internal Length:
    17" (43.18 cm)
  • Capacity:
    2.47

Overview

  • Height of Cabinet:
    31.75" (81 cm)
  • Height to Hinge Cap:
    32.0" (81 cm)
  • Width:
    19.75" (50 cm)
  • Width with Door Open:
    20.25" (51 cm)
  • Depth:
    22.5" (57 cm)
  • Depth with Handle:
    25.0" (64 cm)
  • Depth with Door at 90°:
    40.25" (102 cm)
  • Defrost Type:
    Manual
  • Door:
    Stainless Steel
  • Cabinet:
    White
  • US Electrical Safety:
    ETL
  • Canadian Electrical Safety:
    ETL-C
  • Amps:
    1.1
  • Voltage/Frequency:
    115 V AC/60 Hz
  • Weight:
    75.0 lbs. (34 kg)
  • Parts & Labor Warranty:
    1 Year
  • Compressor Warranty:
    5 Years

Freezer

  • Door Swing:
    RHD
  • Reversible:
    Yes
  • Interior Height:
    23.75" (60 cm)
  • Interior Width:
    14.5" (37 cm)
  • Interior Depth:
    17.0" (43 cm)
  • Shelf Type:
    Drawers
  • Shelf Qty:
    3
  • Thermostat Type:
    Digital
  • Fan Type:
    Exterior
  • Refrigerant Type:
    R600a
  • Refrigerant Amount:
    1.34 oz.
  • High Side PSI:
    180.0
  • Low Side PSI:
    80.0
  • Level Legs:
    2
  • Interior Drawers:
    Yes
  • Drawers Qty:
    3
  • Compressor Step Height:
    5.75" (15 cm)
  • Compressor Step Width:
    14.5" (37 cm)
  • Compressor Step Depth:
    6.0" (15 cm)
  • Temperature Range:
    -25° to -15°C
