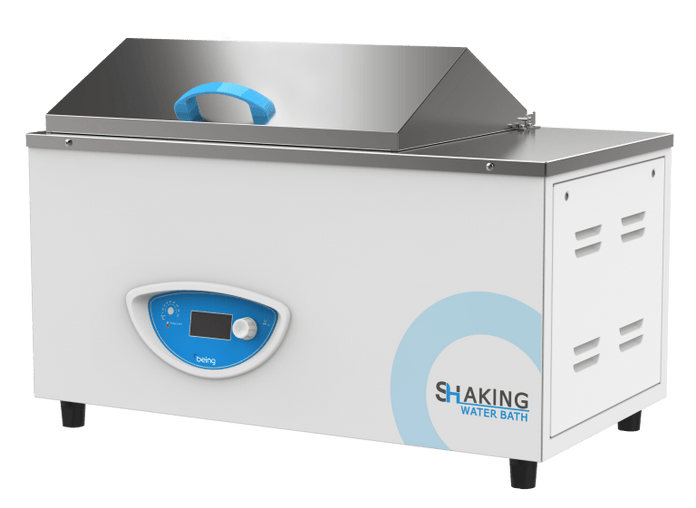

Being - BWZ-Series - Shaking Water Bath
Features
The BEING BWZ shaking water baths combine a general-purpose water bath with a reciprocating shaker motion to provide gentle stirring with precise laboratory temperature control suitable for direct and auxiliary heating of biological, chemical, physical, plant, chemical, and other experimental samples for Escherichia coli detection, sample thawing, bacterial detection, incubation microbial experiments, cell culture, food testing pretreatment, and more.
Construction Features
- Available in 2 sizes: 33L and 48L chambers.
- Corrosion-resistant stainless steel chamber and heater International standard requirements.
- Reciprocating motion on guide rail with heavy-duty corrosion-resistant drivetrain driven by brushless DC motor.
- Hinged stainless steel gable chamber cover holds heat in.
Performance Features
- Temperature Range: Ambient +5℃ - 100℃.
- Temperature Uniformity: ± 0.2℃.
- Temperature Stability: ± 0.3℃.
- Speed: 30 - 180 rpm.
- Amplitude: 30mm.
Controller Features
- Large intuitive LCD display.
- Dual independent controllers.
- PID automatic control provides accurate and reliable temperature control.
- Automatic power on/off.
- Programmable function.
Safety Features
- Built-in power interruption protection function, automatic run after power interruption.
- Independent Over-temperature protection meets DIN 12880 International standard requirements.
- Temperature deviation alarm.
- Over-current protection alarm.
- Power off memory.
Specifications
Overview
Shaking Water Bath Specifications
-
Temperature Range:Ambient +5°C to 100°C (Ambient +9°F to 212°F)
-
Temperature Stability @37°C:±0.3°C
-
Temperature Uniformity @37°C:±0.2°C
-
Display Resolution:0.1
-
Timer:1~9959 mins
-
Speed Range (Cycles per Min.):0 and 30 - 180
-
Amplitude:30 mm
-
Power Requirement:120VAC / 60Hz
-
Electrical Plug Type:NEMA 5-15
-
Tray Depth:6.1 in (155 mm)
