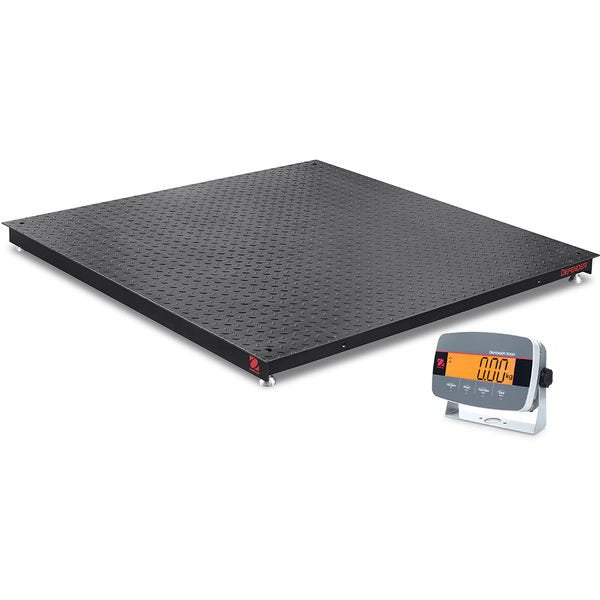

Ohaus - Defender™ 3000 Floor Scale

Ohaus - Defender™ 3000 Floor Scale
Ohaus - Defender™ 3000 Floor Scale

Ohaus - Defender™ 3000 Floor Scale

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Floor Scales for Basic Industrial Applications.

Product Range

SKU Name
30837603 Ohaus - 30837603 - Defender™ 3000 Floor Scale i-DF33P2500B1L
30837692 Ohaus - 30837692 - Defender™ 3000 Floor Scale i-DF33XW2500B1L
30837691 Ohaus - 30837691 - Defender™ 3000 Floor Scale i-DF33XW2500B1R
30837693 Ohaus - 30837693 - Defender™ 3000 Floor Scale i-DF33XW5000B1L
30716508 Ohaus - 30716508 - Defender™ 3000 Floor Scale i-DF33P5000B1X
30716510 Ohaus - 30716510 - Defender™ 3000 Floor Scale i-DF33XW5000B1X
30837601 Ohaus - 30837601 - Defender™ 3000 Floor Scale i-DF33P2500B1R
30837604 Ohaus - 30837604 - Defender™ 3000 Floor Scale i-DF33P5000B1L

Features

Defender 3000 Floor Platforms meet dry weighing needs for industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features a bright display that changes color when in check mode. Scale also includes counting and totalization modes. Ramps and mounting plates are available.


Applications


Weighing, Checkweighing, Counting, Totalization


Display


7 Segment LCD with multicolor backlight


Operation


Internal power supply with power cord (included), 6C (LR14) batteries (not included) or rechargeable battery (not included)


Communication


Standard RS232 and optional USB Device or Ethernet


Construction


ABS plastic or 304 stainless steel indicator, 5 mm/0.196 in. fixed top plate, black painted steel treaded platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available


Design Features


Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)

Specifications

Overview

Technical Data

  • Legal for Trade:
    NTEP Certified
  • Tare Range:
    To capacity by subtraction
  • Working Environment:
    -10°C - 40°C, 85%RH, non-condensing (14°F - 104°F, 85%RH, non-condensing)
  • Platform Construction:
    Painted Steel Diamond Plate
  • Protection Rating:
    Not Applicable
  • Communication:
    Ethernet (Available as an Accessory), RS232 (Included), USB (Available as an Accessory)
  • Power:
    6 C (LR14) Batteries (Not Included), Rechargeable Battery (Not Included), AC Power (Included)
  • Units of Measurement:
    Metric Tons, Kilogram, Pound
  • Display:
    7 Segment LCD with multicolor backlight
  • Outputs:
    Not Applicable
