Floor Scales for Basic Industrial Applications.

Features

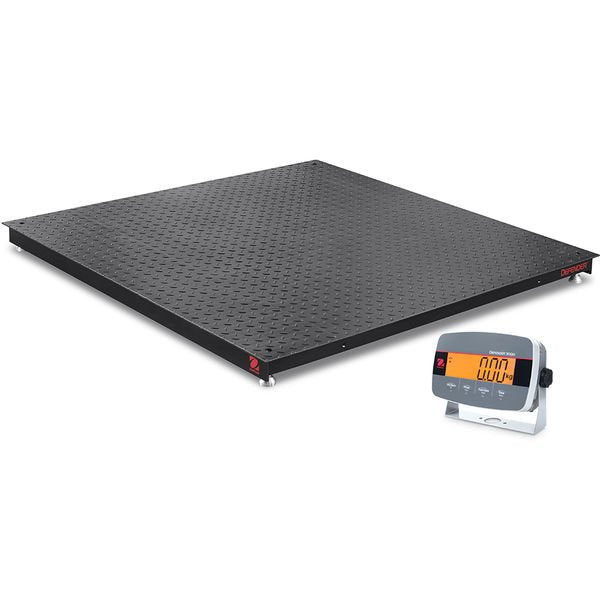

Defender 3000 Floor Platforms meet dry weighing needs for industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features a bright display that changes color when in check mode. Scale also includes counting and totalization modes. Ramps and mounting plates are available.

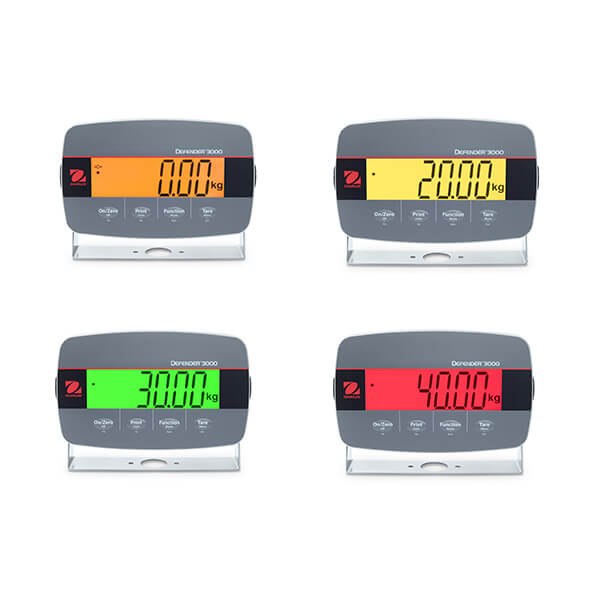

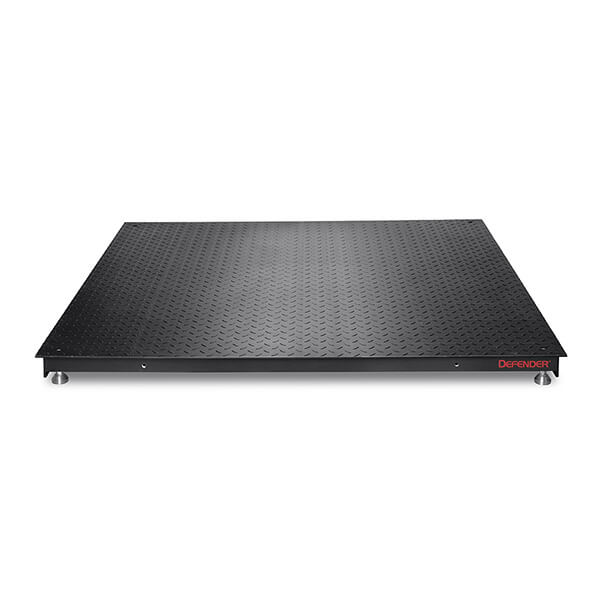

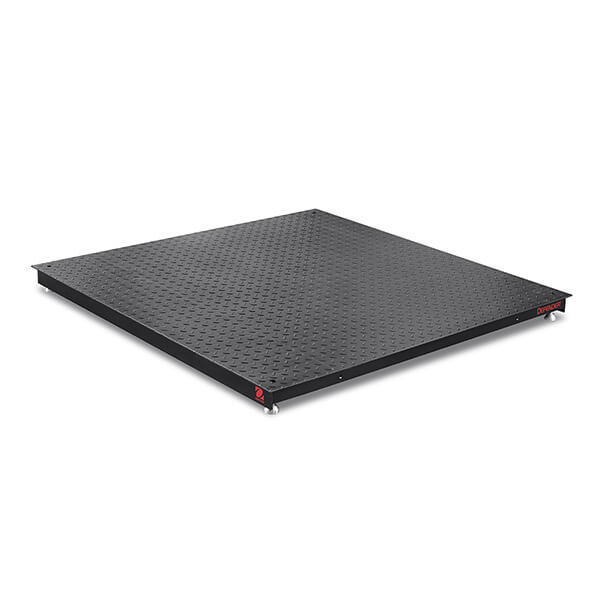

Painted carbon steel treaded decks with four alloy steel load cells, fixed top plate (5 mm/0.196 in. thick) with structural bracing for stiff construction. Platforms available in sizes of 3x3 ft, 4x4 ft, and 5x5 ft and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs. Results are clearly shown on the large, bright backlit LCD display. In Checkweighing mode, display changes color (yellow/green/red) to alert users when within the target weight range.



Applications



Weighing, Checkweighing, Counting, Totalization



Display



7 Segment LCD with multicolor backlight



Operation



Internal power supply with power cord (included), 6C (LR14) batteries (not included) or rechargeable battery (not included)



Communication



Standard RS232 and optional USB Device or Ethernet



Construction



ABS plastic or 304 stainless steel indicator, 5 mm/0.196 in. fixed top plate, black painted steel treaded platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available



Design Features



Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)

Specifications

Overview

  • Nominal Height:
    3.54" (8.99 cm)
  • Nominal Width:
    36" (91.44 cm)
  • Nominal Length:
    36" (91.44 cm)

Technical Data

  • Maximum Capacity:
    2,500 lb (1,250 kg)
  • Readability:
    0.5 lb (0.2 kg)
  • Readability (Certified):
    0.5 lb (0.5 kg)
  • Platform Size:
    3 ft x 3 ft (914 mm x 914 mm)
  • Battery Life:
    30 Hours with Rechargeable Battery, 100 Hours with Disposable Batteries
  • Legal for Trade:
    NTEP Certified
  • Tare Range:
    To capacity by subtraction
  • Working Environment:
    -10°C - 40°C, 85%RH, non-condensing (14°F - 104°F, 85%RH, non-condensing)
  • Platform Construction:
    Painted Steel Diamond Plate
  • Net Weight:
    225 lb (102 kg)
  • Protection Rating:
    Not Applicable
  • Communication:
    Ethernet (Available as an Accessory), RS232 (Included), USB (Available as an Accessory)
  • Power:
    6 C (LR14) Batteries (Not Included), Rechargeable Battery (Not Included), AC Power (Included)
  • Units of Measurement:
    Metric Tons, Kilogram, Pound
  • Display:
    7 Segment LCD with multicolor backlight
  • Outputs:
    Not Applicable
