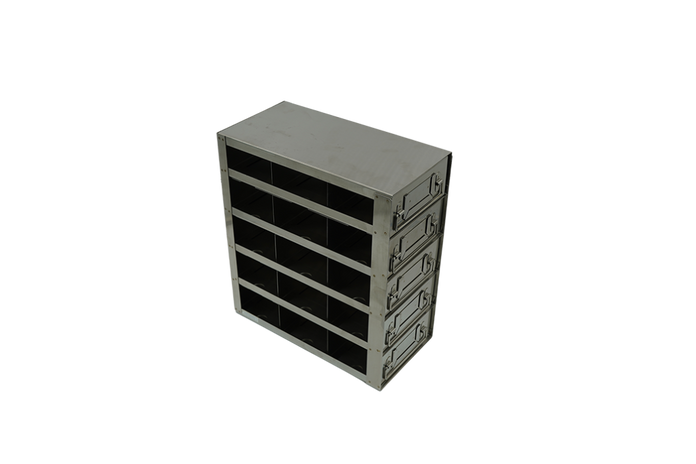

UFDMP-35 - Drawer Rack for Microtiter Plates, 3x5 Configuration
Features
Upright Freezer Drawer Rack
For 96-Well & 384-Well Microtiter Plates
- Made of corrosion resistant stainless steel.
- Drawer racks allow easy access to fewer microtiter plates at a time thus protecting other samples in the rack from warming up.
- Security lock devices are available for each rack.
Specifications
Overview
-

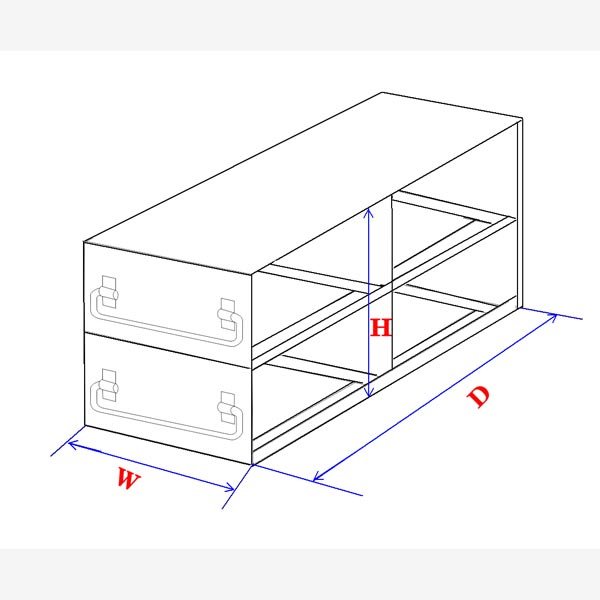

Nominal Height:12.13" (30.81 cm)
-
Nominal Width:5.44" (13.82 cm)
-
Nominal Length:11.13" (28.27 cm)
Technical Data
-
Description:Rack with 5 drawers (3 compartments per drawer) for Microtiter Plates
-

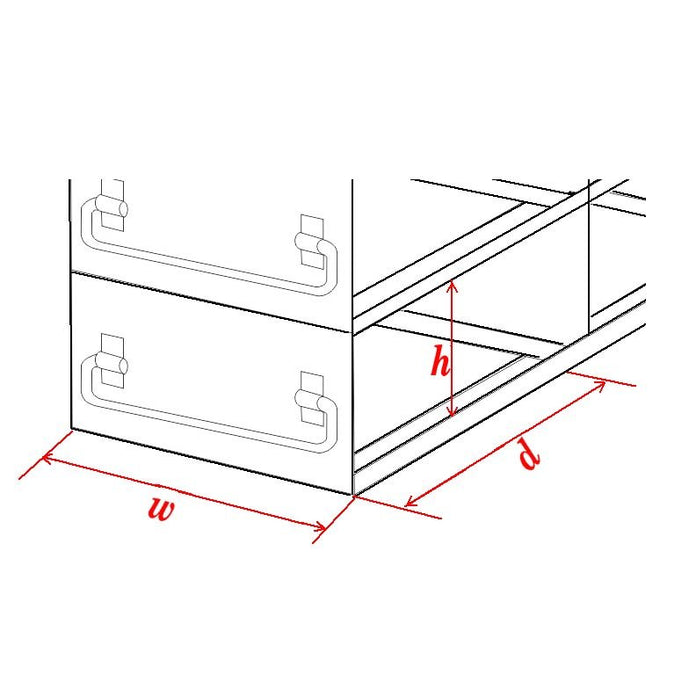

Compartment Size (l x h x w):3.5 x 2.19 x 5.13 inch (89 x 55.8 x 130 mm)
-
Capacity (Plate):45 with lids, 60 without lids
-
Lock Device Option:DD-11
-
Shipping Weight (lb) (Kg):8.6 (3.90)
