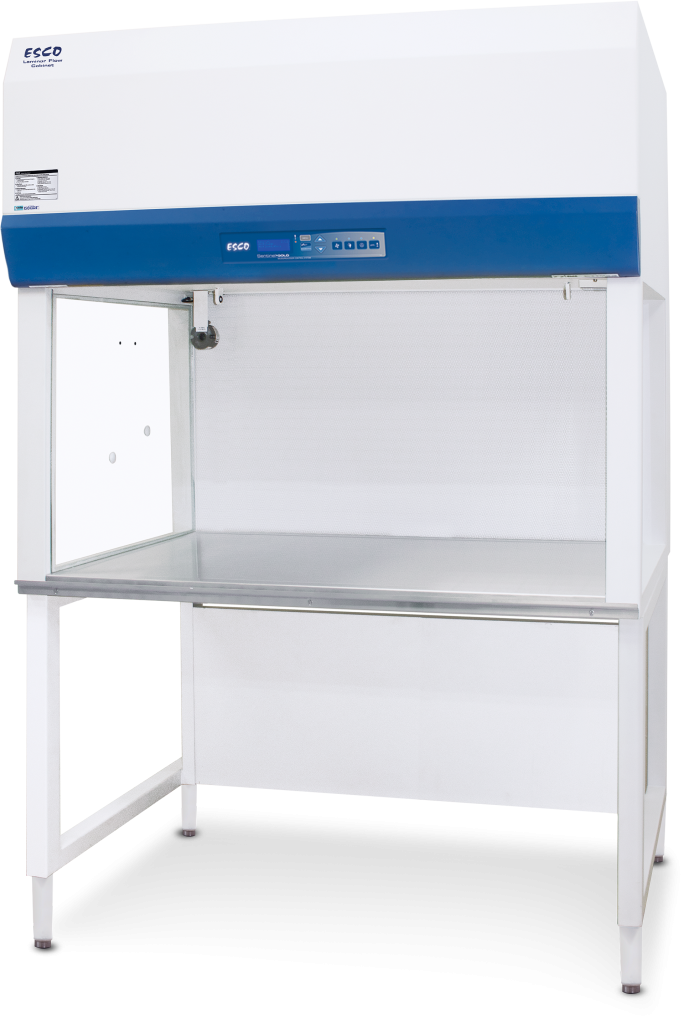

ESCO - LHG-6BG-F9 - Airstream® Gen 3 Horizontal Laminar Flow Cabinet

Features
Scientific researches require complicated laboratory procedures and an expensive set of equipment. These laboratory equipment normally run for an average of 8 hours a day, which leads to substantial consumption of your power and expensive electricity bill. But worry no more, we have a solution for you! Airstream® Gen 3 Horizontal Laminar Flow Cabinets use energy-efficient technology. As a manufacturer of premium laminar flow cabinets, Esco does not settle until the best is achieved. To deliver the finest experience possible, every feature of a cabinet is carefully considered and fulfilled.
Esco's laminar air flow cabinet is a product of robust engineering combined with strategic ergonomic design. It provides long-term reliability and ultimate user comfort making it ideal for non-hazardous applications that need a sterile environment.
Applications
- Plant Tissue Culture
- Media Plate Preparation
- Electronics Inspection
- Medical Device Assembly
High-Quality Construction
- Stainless steel worktop
- Spill-retaining design will ensure containment of accidental liquid spills
Quiet Operation
- Comfortable low noise at 52 dBA
- Reduce fatigue and improve work concentration
ULPA Filter
- 10x Filtration efficiency of HEPA filter
- Creates ISO Class 3 work zone instead of industry-standard ISO Class 5
Energy Efficient
- Powered by latest generation DC ECM motor, that is more efficient than legacy ECM and VFD motors
- 70% Energy savings compared to AC motor
- Stable airflow, despite building voltage fluctuations & filter loading
Isocide™ Antimicrobial Powder Coating
- Eliminates 99.9% of surface bacteria within 24 hours of exposure
Specifications
Overview
-
Nominal Height:50" (127.0 cm)
-
Nominal Width:76.8" (195.07 cm)
-
Nominal Length:31" (78.74 cm)
-
Internal Height:28.5" (72.39 cm)
-
Internal Width:71.4" (181.36 cm)
-
Internal Length:24.8" (62.99 cm)
General Specifications
-
Nominal Size:1.8 meter (6’)
-
Internal Work Area - Space:1.0 m² (10.8 ft²
-
Average Airflow Velocity:90 fpm at initial setpoint
-
Air Volume:1253 cfm
-
ULPA Filter Typical Efficiency:> 99.999% at particle size between 0.1 to 0.3 μm
-
Sound Emission per IEST-RP-CC002.2:59.6 dBA
-
LED Lamp Intensity at Zero Ambient:1494 Lux (139 foot candles)
-
Net Weight:228 Kg (503 lbs)
-
Shipping Weight:293 Kg (646 lbs)
-
Shipping Dimensions - Maximum (W x D x H):2200 x 900 x 1590 mm (87” x 35” x 62”)
-
Shipping Volume - Maximum:3.3 m³ (116.5 ft³)
Construction - Electrical
-
Main Body:1.2 mm (0.05”) 18-gauge electro-galvanized steel with white oven-baked epoxy-polyster powder-coated finish
-
Work Zone:1.2 mm (0.05”) 18-gauge stainless steel, grade 304, with 4B finish
-
Side Walls:UV absorbing tempered glass, 5 mm (0.2”), colorless and transparent
-
Cabinet Full Load Amps (FLA):11.5 A and 6.5 A (2 Power Inlet)
-
Optional Outlets (FLA):5 A
-
Cabinet Nominal Power (W):308
-
Heat Rejected - BTU per Hour:1051
