The CO2 Incubator Shaker features controlled Temperature, Shaking, CO2 Concentration and Humidity.

Product Range

SKU Name
IS18C5A Crystal Industries - IS18C5A - AEOLUS™ Stackable CO2 Incubator Shaker, 50mm Orbit
IS-18CA Crystal Industries - IS-18CA - AEOLUS™ Stackable CO2 Incubator Shaker
IS18B5A Crystal Industries - IS18B5A - AEOLUS™ Stackable Incubator Shaker, 50mm Orbit
IS-18A Crystal Industries - IS-18A - AEOLUS™ Stackable Incubator Shaker

Features

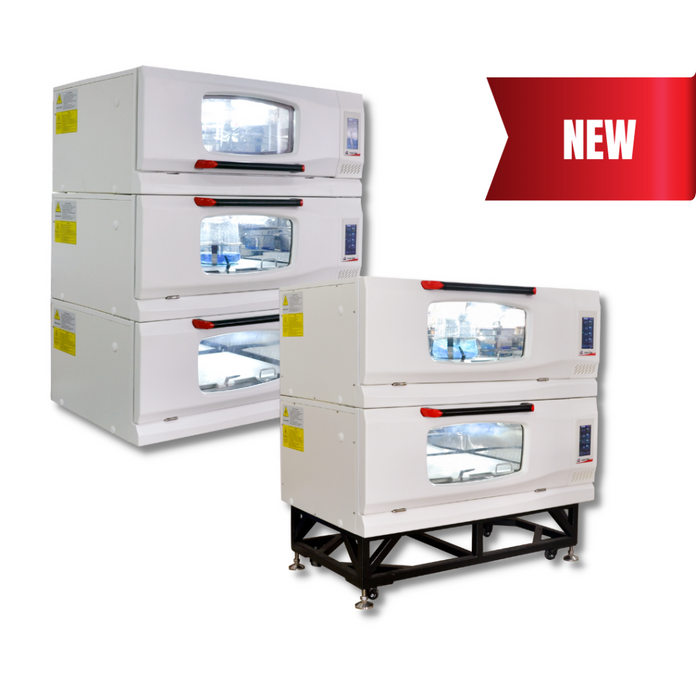

The CO2 Incubator Shaker features controlled Temperature, Shaking, CO2 Concentration and Humidity. It can be stacked 3 units high while only requiring the area of a single unit.


  • 7" High-Res Color Touch Screen with intuitive graphic interface
  • Chamber design features smooth rounded internal corners for easy cleaning
  • Capacity is 6 x 5L Erlenmeyer shaker flasks
  • Infra-Red(IR) CO2 sensor for precise and reliable CO2 detection
  • Optional WiFi and RS485 monitoring and control
  • 2 Sets of UV lights for easy sterilization
  • Audible and visual alarms
  • Mirror finish, pharmaceutical-grade stainless steel chamber
  • Stackable design up to 3 units
  • 25mm and 50mm Orbit Models available

Specifications

Overview

  • Nominal Height:
    21.06" (53.49 cm)
  • Nominal Width:
    55.35" (140.59 cm)
  • Nominal Length:
    33.66" (85.5 cm)
  • Internal Height:
    12.13" (30.81 cm)
  • Internal Width:
    35.43" (89.99 cm)
  • Internal Length:
    22.05" (56.01 cm)

Product Data

  • Platform Dimensions (WxD):
    900 x 560 mm (35.4 x 22 in)
  • Capacity:
    302 L
  • Max Load:
    20 kg (44.1 lb)
  • Temperature Range:
    Room Temp. Minus 20°C to 60°C (Lowest Temp is 4°C)
  • Temperature Accuracy:
    ±0.1°C (@37°C)
  • Temperature Uniformity:
    ±0.1°C (@37°C)
  • Temperature Stability:
    ±0.1°C (@37°C)
  • Temp Recover Time After Door is Opened for 30s:
    ≤6min (@37°C)
  • Speed:
    0 (stop), 30~300 RPM
  • Speed Accuracy:
    ±1 RPM
  • Programmable Segments:
    12 Segments
  • Timer:
    0~999hr 59min
  • Illumination:
    LED Lamps on Left and Right Walls
  • Disinfection:
    UV Lamps on Left and Right Walls
  • Door Opening Direction:
    Down-Swing (Optional up-swing door for top unit of triple stack)
  • Internal Walking Height:
    308mm (12.1in)
  • Net Weight:
    195 kg (430 lb)
  • Display:
    7" Color Capacitive Touch Screen
  • Parameter Protection:
    Password Protected
  • Data Stored:
    Time, Temperature, Speed, Instrument Status
  • Data Storage Interval:
    1 Minute
  • Screen Data Display:
    Displays Most Recent 7 Days of Data
  • USB Data Export:
    Most Recent 912 Days of Data
  • Automatic Defrost:
    Yes
  • Noise Level:
    ≤55dB (When Compressor is Running)
  • Auto-Recovery After Power Interruption:
    Yes
  • Power Supply:
    AC 110V±11V, 60Hz
  • Power when Heating:
    ≤800w
  • Power when Cooling:
    ≤300w
  • Max Power:
    ≤1000w
  • Mobile Monitoring and Control by WiFi:
    Optional through IS-A64W Accessory and App
  • Warranty:
    2 Years Parts and Service
  • Certification:
    CE
