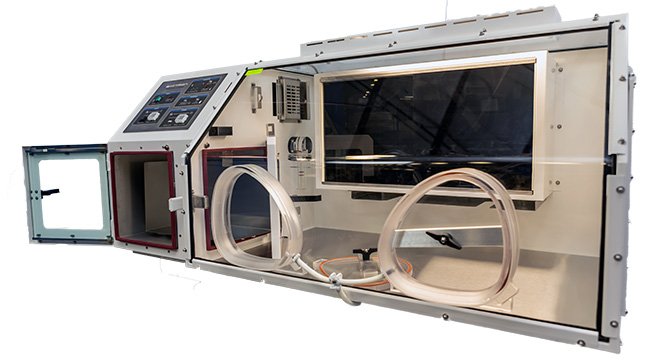

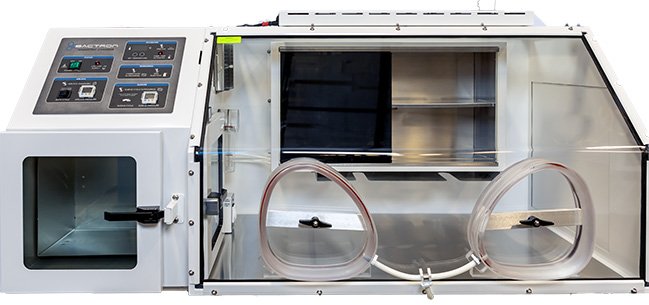

MODEL BACTRON300, Economical Anaerobic Chamber with a 16.0 cu. ft. workspace with an inner accessible incubator that creates a 300-plate capacity to deliver optimum productivity in a compact design for nominal to vaster research lab spaces.

Features

MODEL BACTRON300, Economical Anaerobic Chamber with a 16.0 cu. ft. workspace with an inner accessible incubator that creates a 300-plate capacity to deliver optimum productivity in a compact design for nominal to vaster research lab spaces. Our BACTRON Anaerobic Chambers have an airtight construction of stainless steel and rigid acrylic glass for unobstructed vision and integrity. The chamber cuffs form a comfortable seal around the operator’s arms that enables complete manipulation of plates and specimens inside the working chamber forming a work user-friendly in most applications. When sitting undisturbed and unopened at a steady state, the BACTRON Anaerobic Chamber typically rests oxygen-free and anaerobic. Our Anaerobic Chambers meet EN61010, UL61010, and Can/CSA61010 standards.


Our BACTRON300 Anaerobic Chamber features:

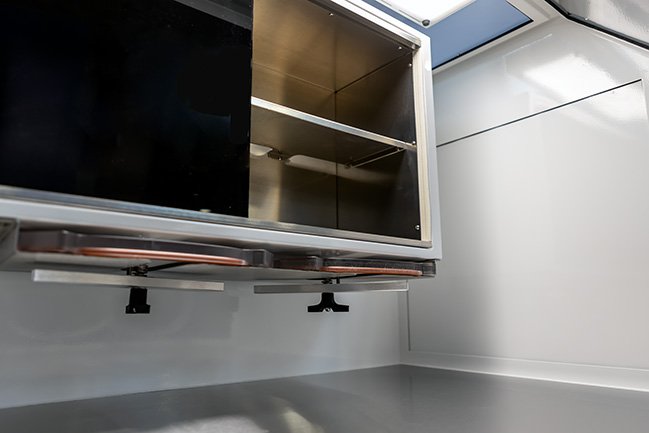

  • 300-plate capacity and inner accessible incubator 27.5 x 8.5 x 13.5 in
  • Compact design for any lab space
  • Low gas supply alarm
  • Integrated internal regulators
  • User-adjustable airlock cycling
  • Auto-commissioning cycle 5hrs to anaerobic
  • Activated carbon/o2  palladium cartridge scrubber catalyst
  • Interior work area 42.5 x 28.9 x 25.0 in
  • Interior electrical outlet for lab instruments

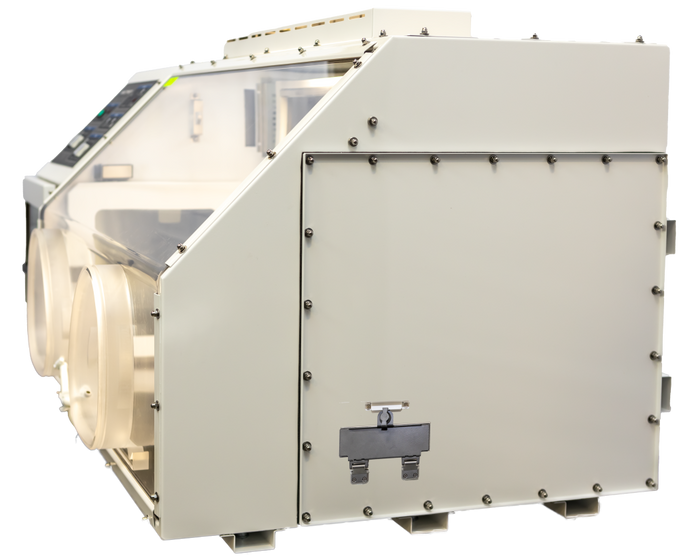

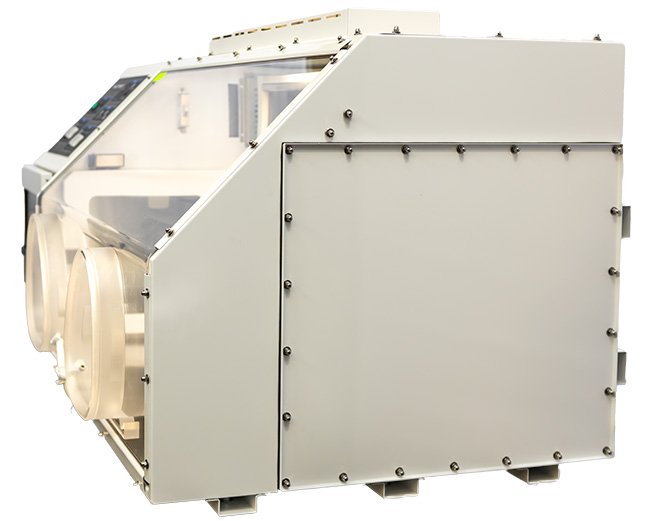

  • New side access panel, standard on the bactron300
  • Optional single plate access panel upon request
  • 2-year warranty - ask us about our extended warranties usa domestic offering only

Watch the video

Specifications

Overview

  • Nominal Height:
    27.6" (70.1 cm)
  • Nominal Width:
    62.3" (158.24 cm)
  • Nominal Length:
    32" (81.28 cm)
  • Internal Height:
    25" (63.5 cm)
  • Internal Width:
    42.5" (107.95 cm)
  • Internal Length:
    28.9" (73.41 cm)
  • Capacity:
    16

Technical Data

  • Airlock Capacity:
    216 Plates
  • Airlock Dimensions (W x D x DIAG):
    16.0" x 10.0" x 11.5" (406.4 mm x 254.0 mm x 292.0 mm)
  • Incubator Dimensions (W x D x H):
    27.5" x 8.5" x 13.5" (699 mm x 216 mm x 343 mm)
  • Shelf Dimensions (W x D):
    27.3" x 7.4" (694.0 mm x 188.0 mm)
  • Unit Weight:
    304.0 lbs (138.0 kg)
  • Interior Metal:
    300 SST
  • Exterior Metal:
    300 SST & CR
  • Operating Temperature Range:
    Amb +5°C - 70°C
  • Temperature Uniformity - Midrange:
    1.0°C
  • Temperature Stability - Midrange:
    0.2°C
  • Controller Type:
    Digital
  • Display Resolution:
    0.1°C
  • Power Voltage, Frequency and Current:
    110-120 VAC, 50/60 Hz, 11.0 Amps
  • Safety Certifications:
    UL 61010-1, EN 61010-1, CSA 61010-1, CE

Power

  • AC Voltage:
    110-120/220-240
  • Amperage:
    9/6
  • Frequency:
    50-60Hz
