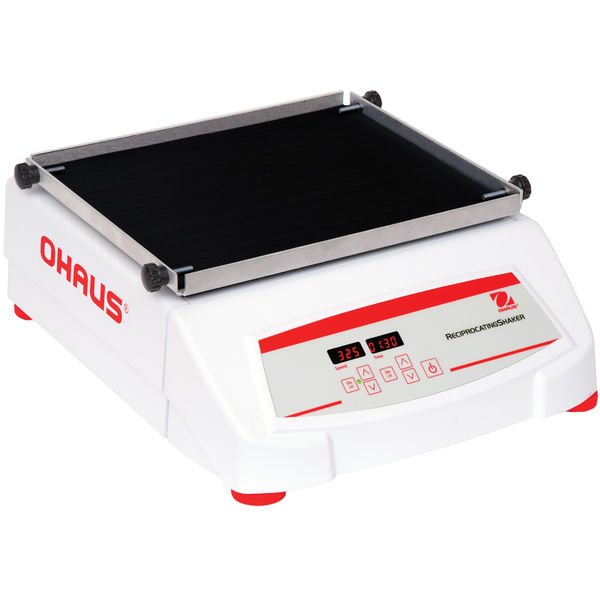

Ohaus - 30391828 - Reciprocating Shakers SHRC0719DG
Features
OHAUS Reciprocating Shakers are designed for a range of applications including cell cultures and extraction procedures that require accurate, repeatable results. Our shakers are designed to provide consistent, uniform shaking action. The back-and-forth reciprocating motion has a 19 mm stroke length. Permanently lubricated ball bearings and maintenance-free, brushless DC motor provide reliable service and continuous-duty operation.
Applications
Chemical Extractions, Blood Sample Mixing, Gel Staining, Cell Cultures, Solubility Studies
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously
Operation
Detachable 3-wire cord and plug (included)
Construction
Cold rolled steel (CRS)
Design Features
Built-in tray (11x13 inch or 28x33 cm) with a non-slip rubber mat (included)
Specifications
Overview
-
Nominal Height:5.9" (14.99 cm)
-
Nominal Width:14" (35.56 cm)
-
Nominal Length:16.3" (41.4 cm)
Technical Data
-
Motion:Reciprocating, 19 mm
-
Capacity:6.8 kg
-
Speed Range:20 rpm - 300 rpm
-
Tray Size:11 in x 13 in (27.9 cm x 33 cm) (LxW)
-
Control:Digital
-
Drive System:Brushless DC Motor, Single Eccentric
-
Calibration:Speed calibration
-
Communication:RS232 (Included)
-
Net Weight:48.1 lb (21.8 kg)
-
Power:120V, 5A, 50/60Hz
-
Power Consumption:40 W
-
Safety Certification:TUV
-
Speed Accuracy:±2 rpm, Above 100 rpm ±2% of set speed
-
Stroke:0.75 in (19 mm)
-
Timer:1 second - 160 hours
-
Tray Construction:Aluminum
-
Working Environment:14°F - 140°F, 80%RH, non-condensing (-10°C - 60°C, 80%RH, non-condensing)
