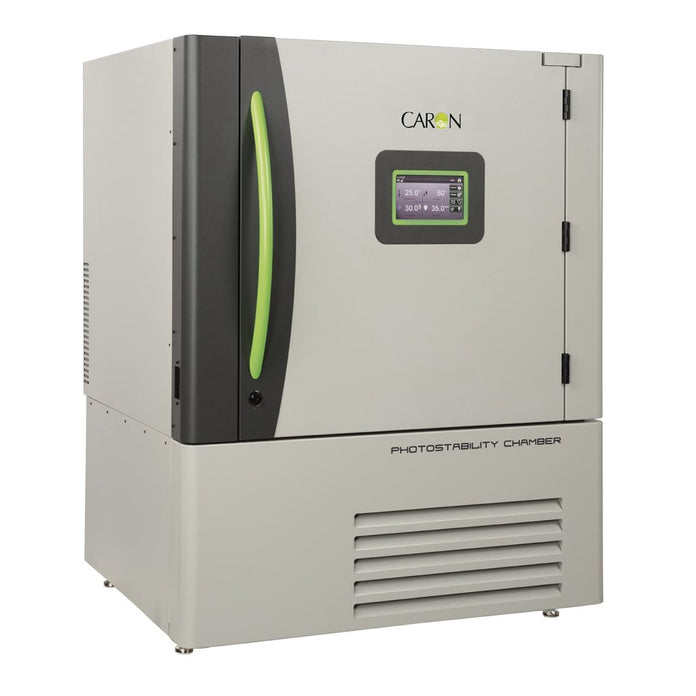

Caron - 7540-11-1 - Photostability Chambers

Features
Key features
- Benchtop UV & Vis light/temp single-door
- Complete ICH Q1B Option II testing in half the time of competing chambers
- Purpose built for photostability testing; this isn’t just a stability chamber with lights
- Precisely tuned light banks allowing for even powerful light distribution
- Controllable visible, UV, and relative humidity
- Temperature range of 10°C to 35°C
- User-friendly, large-format touchscreen controller simplifies:
- The setup of custom testing cycles
- Provides clear, immediate feedback on current operating conditions
- Gives quick user feedback on how far along the testing cycle is
Simplicity Redefined
At Caron, we understand that complexity should not be a barrier. That's why our photostability chambers boast powerful features including:
- Intuitive Controls: The 7" color touchscreen control interface is powerful, while also user-friendly.
- Automatic Operation: Set-and-forget functionality with an automatic cycle for hassle-free operation.
- Clear Status Display: Easily monitor cycle status, and straightforward setup for custom exposure protocols.
- Compact Footprint: The compact benchtop design takes up less than 8 square feet, maximizing your valuable lab space.
- Maintenance Made Easy: Maintenance is a breeze with service alerts and front and rear-mount slide-out assemblies.
Consistent and Precise Outcomes
When it comes to your samples, we know that uniform conditions are non-negotiable. Caron's hardware delivers:
- Uniform Lighting Conditions: Densely spaced bulbs, reflective aluminum panels, and precise light sensors create a work area with 10-15% VIS uniformity.
- ICH Compliance: Meets ICH requirements consistently, thereby eliminating the risk of overexposure which is commonly seen in Xenon-powered units.
- Temperature Control: Built-in tight ±2.5°C temperature uniformity prevents thermal effects, ensuring the accuracy of your test results.
Specifications
Overview
-
Nominal Height:45.7" (116.08 cm)
-
Nominal Width:37.7" (95.76 cm)
-
Nominal Length:30.8" (78.23 cm)
-
Internal Height:28" (71.12 cm)
-
Internal Width:26.9" (68.33 cm)
-
Internal Length:24" (60.96 cm)
-
Capacity:11
General Specifications
-
Lamp Type - UVA:Fluorescent, near UV (black lamp)
-
Lamp Type - VIS:Fluorescent, cool white (ISO 10977 compliant)
-
Light Detectors:UVA and visual, calibrated
-
UVA Light Intensity - Typical:20 W/m²
-
VIS Light Intensity - Typical:20 klux
-
Typical Time Required to Reach ICH Recommendation of 200 W-hr/m²:10 hrs
-
Typical Time Required to Reach ICH Recommendation of 1.2 million lux-hr:60 hrs
-
Light Uniformity - UVA:±10%
-
Light Uniformity - VIS:±15%
-
Temperature Range:10°C to 35°C (lights on)
-
Temperature Control:±0.2°C
-
Temperature Uniformity:±2.5°C (lights on)
-
Interior Surfaces:Reflective specular aluminum
-
Interior Construction:Stainless steel
Electrical
-
Voltage:115 V
-
Frequency:60Hz
-
FLA:15A
Dimensions - Weights - Shelving
-
Shelves Total:Two sliding
-
Shelf Dimensions:26.0" W x 23.1" D x 8" H (660mm W x 587mm D x 203mm H) each
-
Usable Shelf Area - Each:19.0" x 23.0" (483mm x 584mm)
-
Usable Shelf Area - Total:6.1 ft2 (0.56m2) - 76% of total shelf
-
Maximum Weight per Shelf:22 lbs. (10 kg)
-
Shipping Weight:580 lbs. (700 lbs. with export crate)
