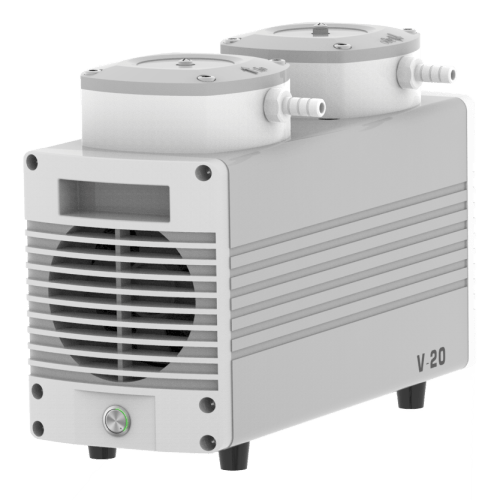

THE BEING V Series pumps are characterized in particular by using corrosion-resistant materials such as all-around PTFE for the pump head, FFPM for the valves, and structured diaphragm with a PTFE coating.

Features

Performance and Features


  • The BEING V Series pumps are characterized in particular by using corrosion-resistant materials such as all-around PTFE for the pump head, FFPM for the valves, and a structured diaphragm with a PTFE coating.

Convenience


  • By providing full solvent recovery, the BEING V Series pumps eliminate the chance of dangerous solvents entering the working lab environment.
  • Maintenance-Free Operation - The BEING V Series pumps are easy to operate and literally maintenance-free. No need to change pump oil or look for a water source.

Specifications

Overview

  • Internal Height:
    8.3" (21.08 cm)
  • Internal Width:
    6.5" (16.51 cm)
  • Internal Length:
    12.4" (31.5 cm)

Diaphragm Pump Specifications

  • Maximum Flow:
    20L/min
  • Pump Type:
    Dual-stage diaphragm
  • Ultimate Vacuum Level:
    8 mbar
  • Maximum Operating Pressure:
    1 bar
  • Vacuum Adjustment:
    No
  • Clean/Dry Valve:
    Yes
  • Connector Size (ID mm):
    10
  • Pump Head Material:
    PTFE
  • Composite Diaphragm Material:
    PTFE
  • Valve Material:
    FFPM
  • Working System:
    Continuous duty
  • Environmental Relative Humidity:
    <80% RH
  • Medium and Ambient Temperature:
    5°C to 40°C
  • Speed:
    1450 RPM
  • Power Consumption:
    120W
  • Electrical Plug Type:
    NEMA 5-15
  • Electrical Requirement:
    110VAC / 60Hz
