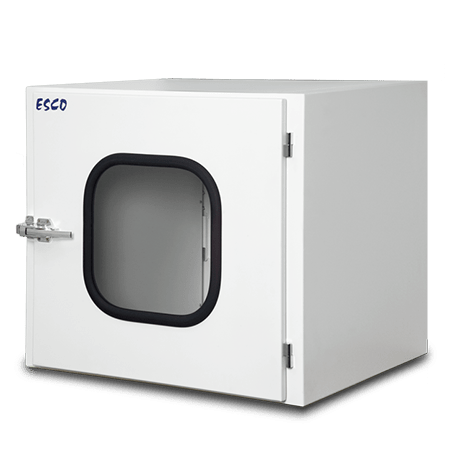

ESCO - EPB-B504050 - Infinity® Pass Boxes, Mechanical Interlock, Stainless steel (SS) Doors, Polycarbonate Viewing Window

Features
- Mechanical interlock is reliable, maintenance-free, fail-safe, and maintains cleanroom integrity by preventing both doors from being opened at the same time.
- Manufactured for the most demanding controlled environment applications.
- All components are designed for maximum chemical resistance and enhanced durability for a long service life.
- The pass box base surface is constructed of stainless steel 304, making it easy to clean.
- Polycarbonate viewing windows provide a clear view of the internal chamber.
Key Benefits
- Reliable Mechanical Interlock
- SS 304 base surface
- Polycarbonate viewing windows
Principle
Accessories
- Flange for sealing the gap between the pass box and the cleanroom wall, when the cleanroom wall can support the weight of the pass box. (Set of 2 flanges)
- Optional UV lamp, must be factory fitted, (only available for EPB-A606060)
- Support stand (for cleanrooms with thin wall partitions, which cannot support the weight of the pass box) to mount the pass box to the floor. Specify mounting height when ordering.
- Full stainless steel 304 (optional: SS 316L interior) with non-coved corners (EPB-B model) or with coved corners at its base (SPB model).
Specifications
Overview
-
Nominal Height:22" (55.88 cm)
-
Nominal Width:26" (66.04 cm)
-
Nominal Length:17.7" (44.96 cm)
-
Internal Height:19.7" (50.04 cm)
-
Internal Width:19.7" (50.04 cm)
-
Internal Length:15.7" (39.88 cm)
Technical Data
-
Net Weight:42.5 kg (93.7 lbs)
-
Shipping Weight:61.6 kg (136 lbs)
-
Shipping Dimensions, Maximum (W x D x H):850 x 740 x 800 mm (33.5" x 29.1" x 31.5")
-
Shipping Volume, Maximum:0.5 m³ (17.6 cu.ft.)
