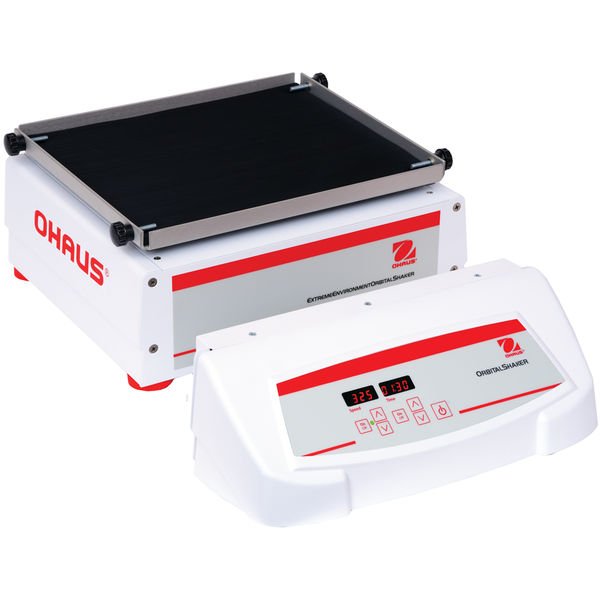

Ohaus - 30391809 - Extreme Environment Shakers SHEX1619DG

Features
OHAUS Extreme Environment Shakers are designed for use in applications that require CO2 and humidity for optimal cell growth. The remote controller magnetically attaches to the outside of most incubators or easily sits on the lab bench. The shaker base is placed inside the incubator and connected to the touchpad controller with a 170 cm cable allowing for simple external control of speed & time settings. This shaker features an IP65-rated motor.
Applications
Cell Cultures, Solubility Studies, Extraction Procedures, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques.
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously.
Operation
Detachable 3-wire cord and plug (included)
Communication
RS232 interface provides two-way communication for data logging and unit control (digital models)
Construction
Cold rolled steel (CRS) and stainless steel, external control module, thin ribbon cable (5.5 feet or 1.7 m) easily passes underneath an incubator door or via incubator’s utility port.
Design Features
Built-in tray (11x13 inch or 28x33 cm) with a non-slip rubber mat (included)
Specifications
Overview
-
Nominal Height:5.8" (14.73 cm)
-
Nominal Width:13.9" (35.31 cm)
-
Nominal Length:17.3" (43.94 cm)
Technical Data
-
Motion:Orbital, 19 mm
-
Speed Range:15 rpm - 500 rpm
-
Tray Size:13 in x 13 in (33 cm x 33 cm) (LxW)
-
Control:Digital
-
Drive System:Triple Eccentric, Brushless DC Motor
-
Calibration:Speed calibration
-
Communication:RS232 (Included)
-
Net Weight:48.1 lb (21.8 kg)
-
Orbit:0.8 in (19 mm)
-
Power:120V, 0.5A, 50/60Hz
-
Power Consumption:30 W
-
Safety Certification:TUV
-
Speed Accuracy:±1 rpm, Above 100 rpm ±1% of set speed
-
Timer:1 second - 160 hours
-
Tray Construction:Aluminum
-
Working Environment:14°F - 140°F, 100%RH (-10°C - 60°C, 100%RH)
