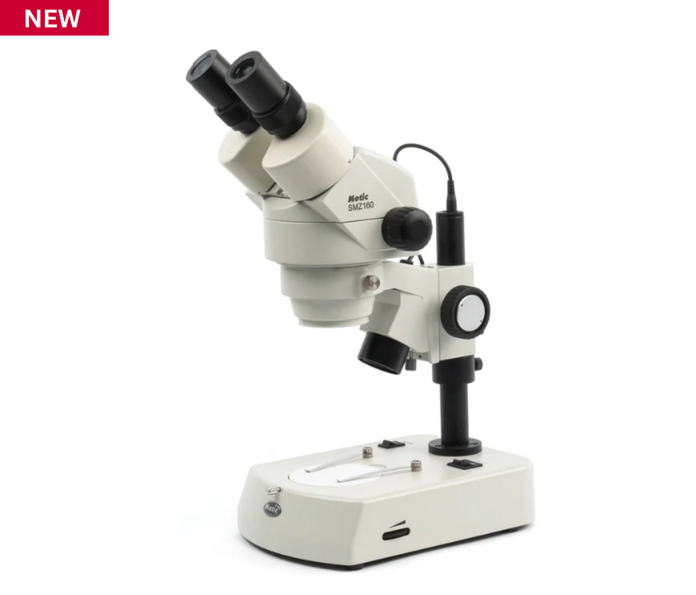

Motic Instruments - SMZ-160 - Stereo Microscopes
Product Range
| SKU | Name |
|---|---|

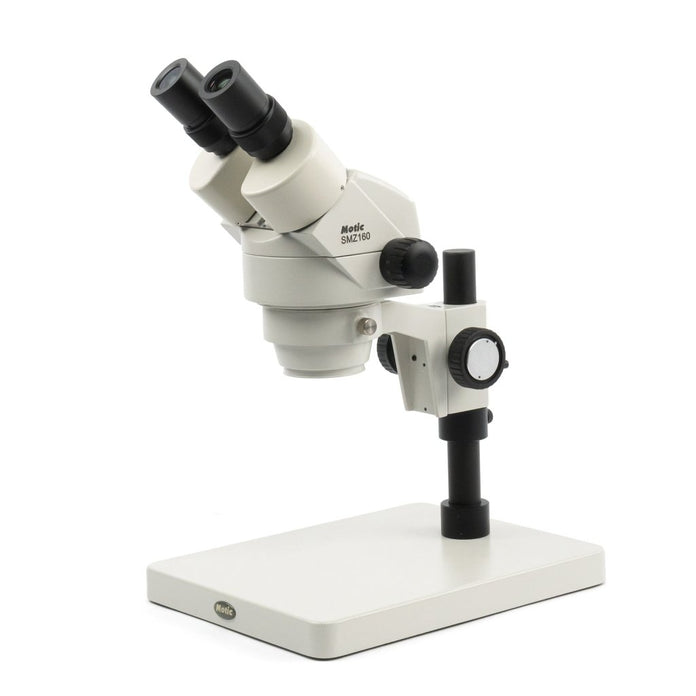

| 1100201300151 | Motic Instruments - 1100201300151 - SMZ-160-BP Stereo Microscopes |

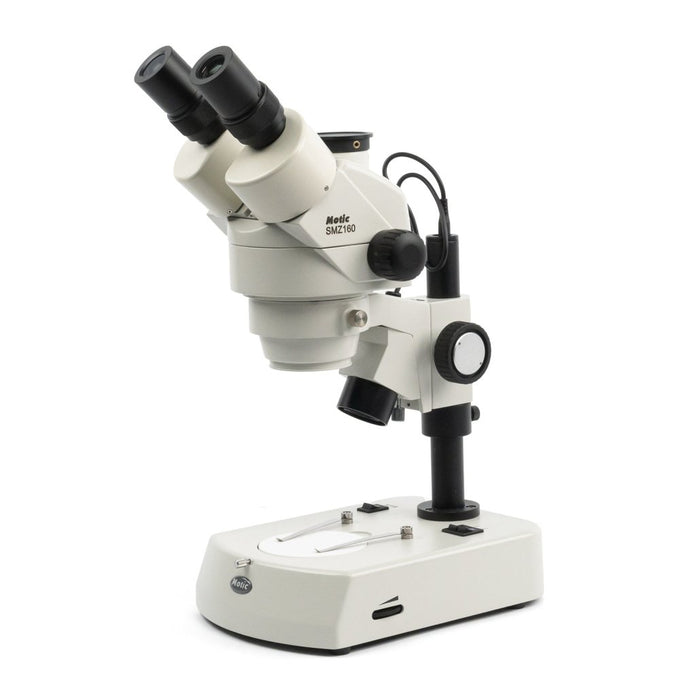

| 1100201300181 | Motic Instruments - 1100201300181 - SMZ-160-TLED Stereo Microscopes |

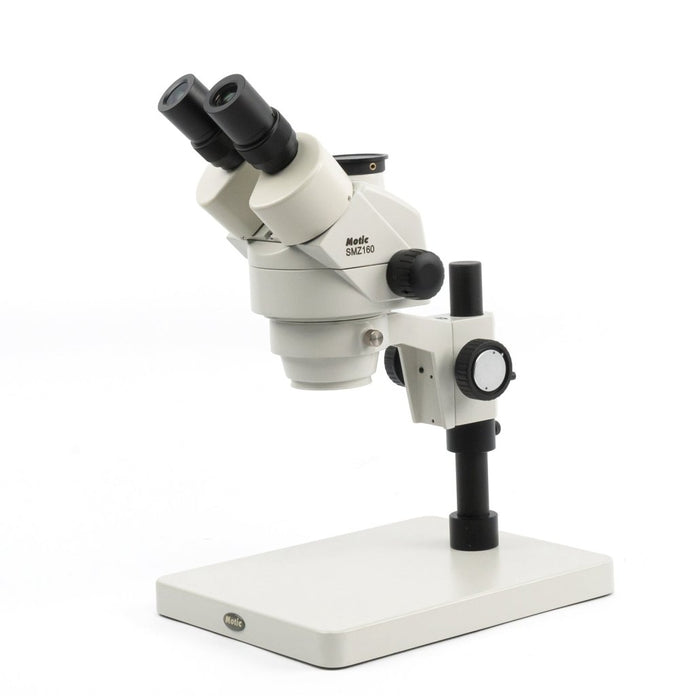

| 1100201300161 | Motic Instruments - 1100201300161 - SMZ-160-TP Stereo Microscopes |
| 1100201300171 | Motic Instruments - 1100201300171 - SMZ-160-BLED Stereo Microscopes |
Features
The SMZ-160 is a professional-quality stereo microscope for industrial and educational settings. The large zoom ratio of 6:1 and a standard working distance of 100mm provide the flexibility to support a large number of potential applications while the addition of an auxiliary lens or substitute eyepieces extend the magnification up to a maximum of 180X.
Additional contrast methods such as polarization microscopy and darkfield microscopy are easily performed through the addition of optional accessories.
Specifications
Overview
Technical Data
-
Optical System:Greenough
-
Inclination:45° inclined
-
Interpupillary Distance:50-75 mm
-
Diopter Adjustment:On both tubes, ±5 diopter
-

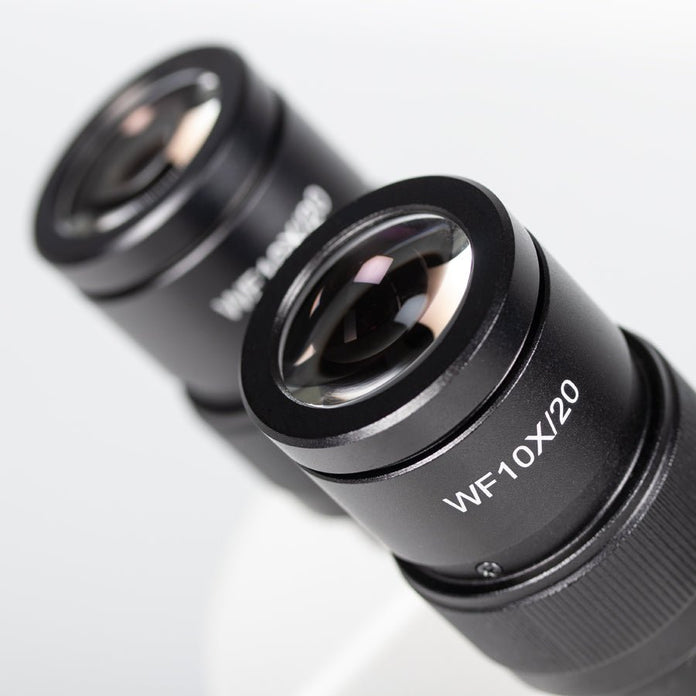

Eyepieces:Widefield WF10X/20mm
-
Objectives System:Zoom, ratio 6/1
-
Objectives:0.75X ~ 4.5X
-
Working Distance:100 mm
-
Focus Mechanism:Coarse focusing system with tension adjustment
-
Focusing Stroke:43 mm
-
Accessories Included:Dust cover
-
Standard Contrast Technique:Brightfield
