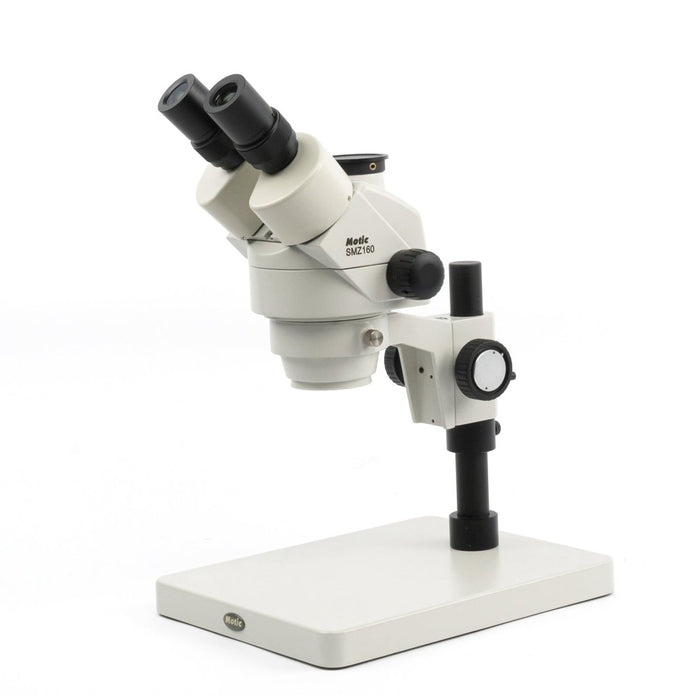

The SMZ-160 is a professional-quality stereo microscope for industrial and educational settings.

Features

The SMZ-160 is a professional-quality stereo microscope for industrial and educational settings. The large zoom ratio of 6:1 and a standard working distance of 100mm provide the flexibility to support a large number of potential applications while the addition of an auxiliary lens or substitute eyepieces extend the magnification up to a maximum of 180X.


Additional contrast methods such as polarization microscopy and darkfield microscopy are easily performed through the addition of optional accessories.

Specifications

Overview

  • Nominal Height:
    16.1" (40.89 cm)
  • Nominal Width:
    8.6" (21.84 cm)
  • Nominal Length:
    11" (27.94 cm)

Technical Data

  • Observation Tube:
    Trinocular head
  • Optical System:
    Greenough
  • Inclination:
    45° inclined
  • Trinocular Light Split:
    Fixed 50/50
  • Interpupillary Distance:
    50-75 mm
  • Diopter Adjustment:
    On both tubes, ±5 diopter

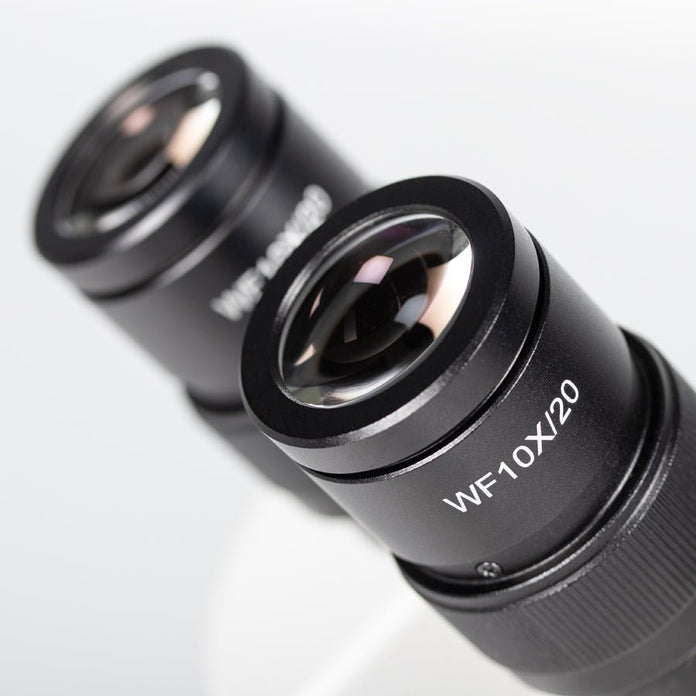

  • Eyepieces:
    Widefield WF10X/20mm
  • Objectives System:
    Zoom, ratio 6/1
  • Objectives:
    0.75X ~ 4.5X
  • Working Distance:
    100 mm
  • Stand Type:
    Pole type stand with transmitted illumination
  • Head Holder:
    For Ø 25mm column and Ø76mm head
  • Focus Mechanism:
    Coarse focusing system with tension adjustment
  • Focusing Stroke:
    43 mm
  • Accessories Included:
    Dust cover
  • Base:
    280 x 220 mm
  • Column/Arm:
    Height 215mm, Ø25mm
  • Net Weight:
    3.4kg
  • Standard Contrast Technique:
    Brightfield
