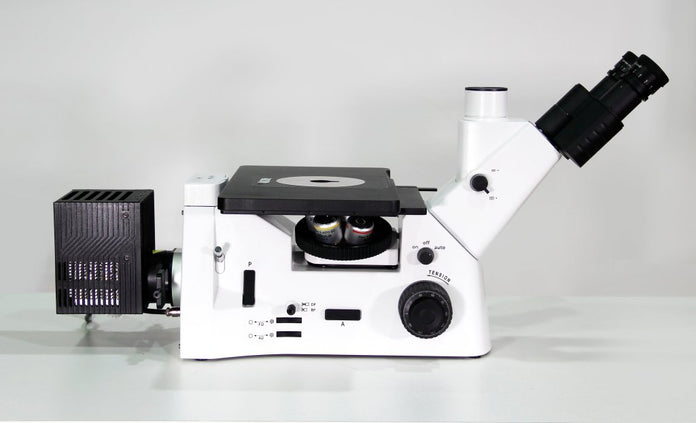

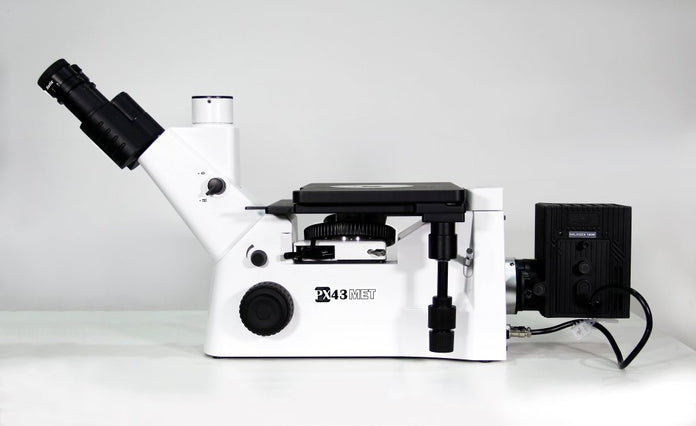

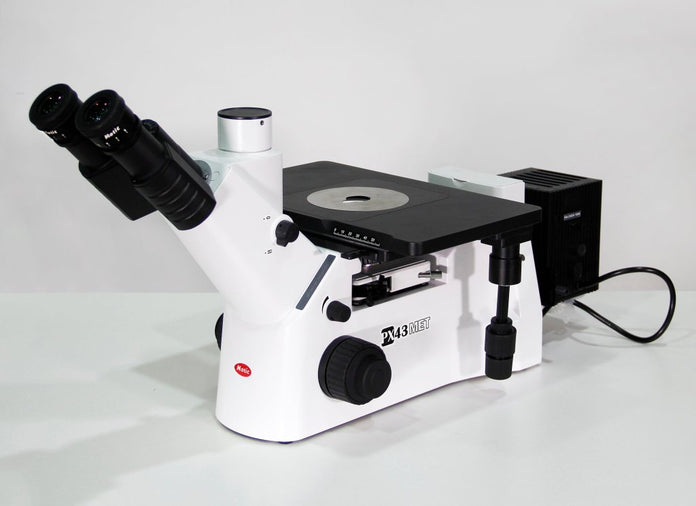

Motic’s PX43MET is a professional Inverted Metallurgical microscope designed to inspect polished cross-sections as well as larger, bulkier materials samples. The microscope is a best fit for automotive, machinery, and metal fabrication industries and similar fields.

This full featured microscope is capable of:

• DIC for better depth imaging
• Polarization
• Brightfield and Darkfield contrast methods

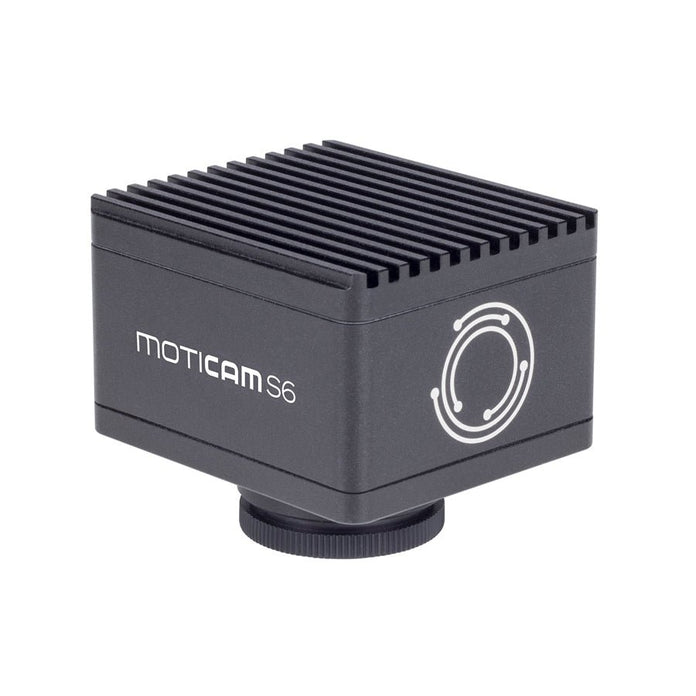

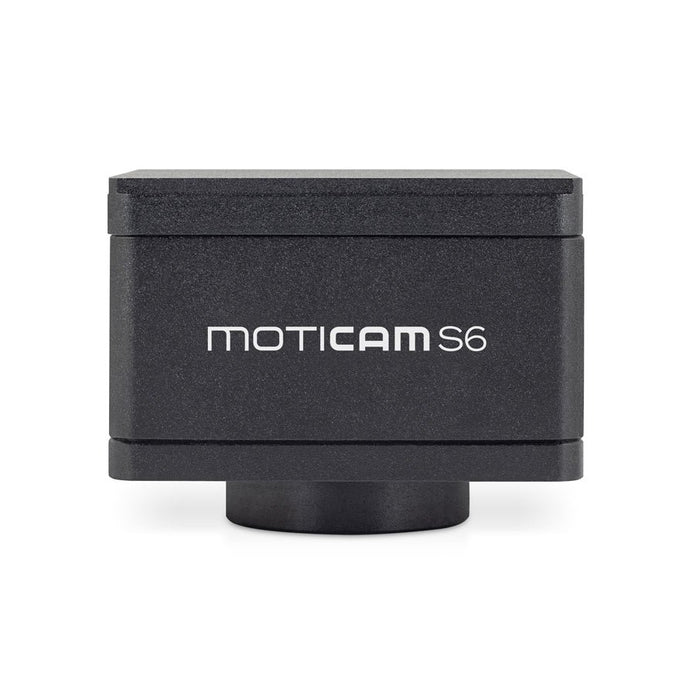

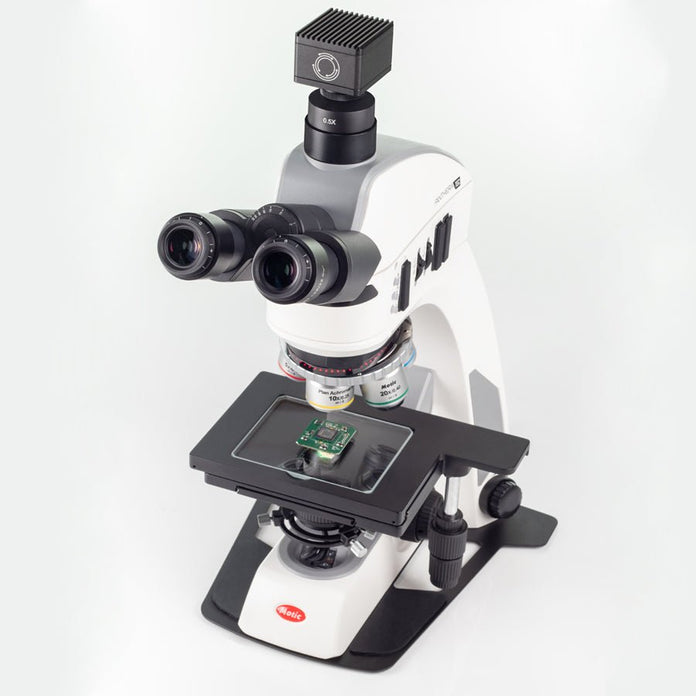

• Advanced measurement, image processing and documentation through a Moticam and the Motic Analysis Software

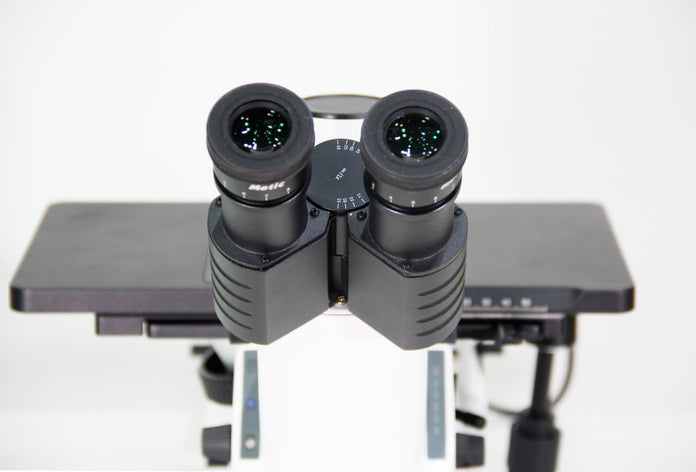

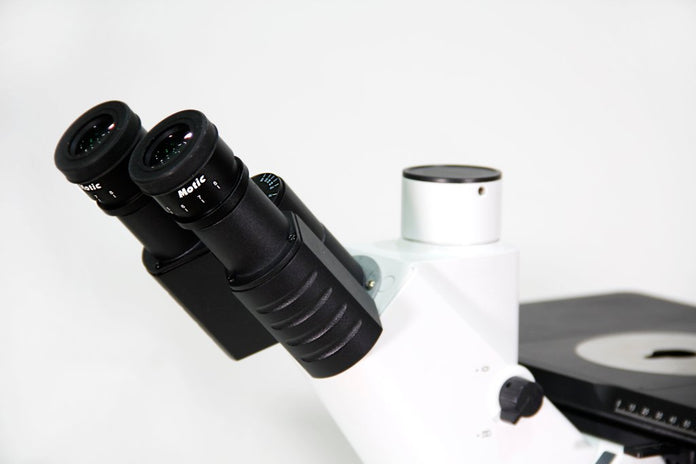

• Trinocular head Siedentopf type 45° inclined, 360° swiveling (light split 100:0/20:80)
• Widefield high eyepoint eyepiece 10X/20mm (paired), focusable

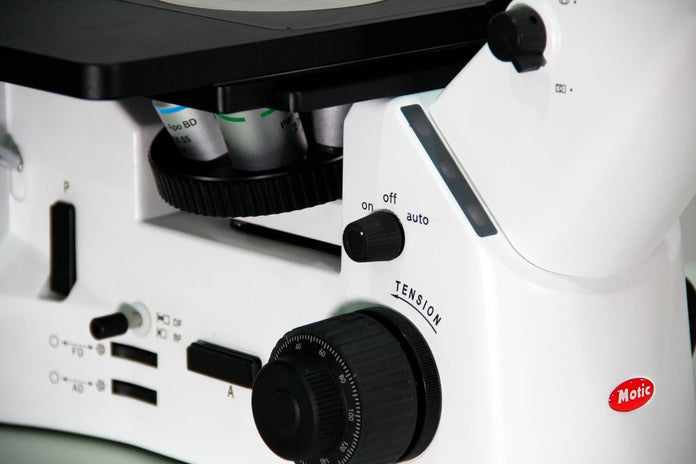

• Side facing quintuple nosepiece with DIC slot
• Plan S-APO BD 5X/0.15; WD=17.7mm; CG=0
• Plan S-APO BD 10X/0.30; WD=12mm; CG=0
• Plan S-APO BD 20X/0.50; WD=2.35mm; CG=0
• LPlan S-APO BD 50X/0.55; WD=8.1mm; CG=0

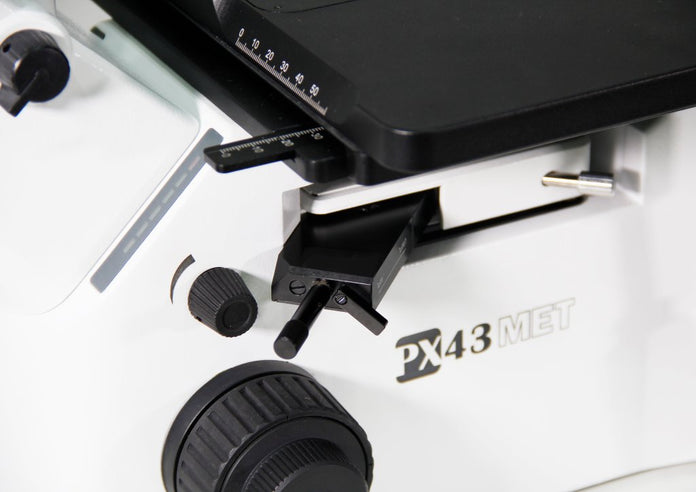

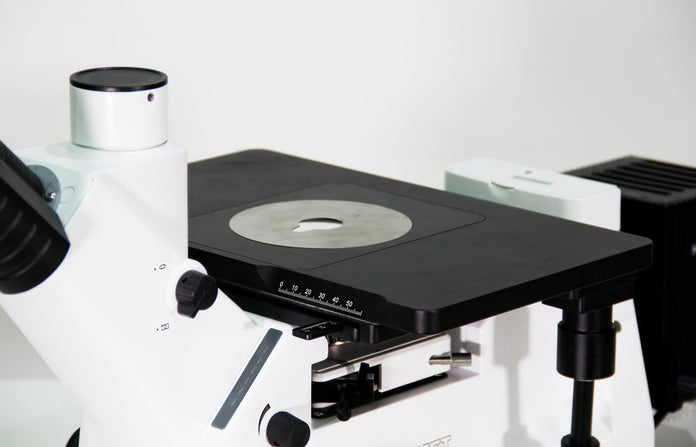

• Mechanical stage with metal stage insert

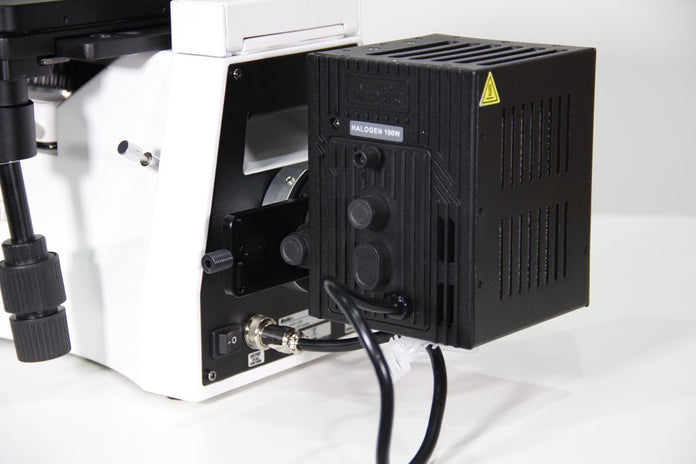

• Halogen illumination 12V/100W with external lamp house and intensity control
• Blue filter, allen hexagonal key vinyl dust cover, power cord
• Universal Power Supply 100-240V
• Motic Analysis Basic
