Overview

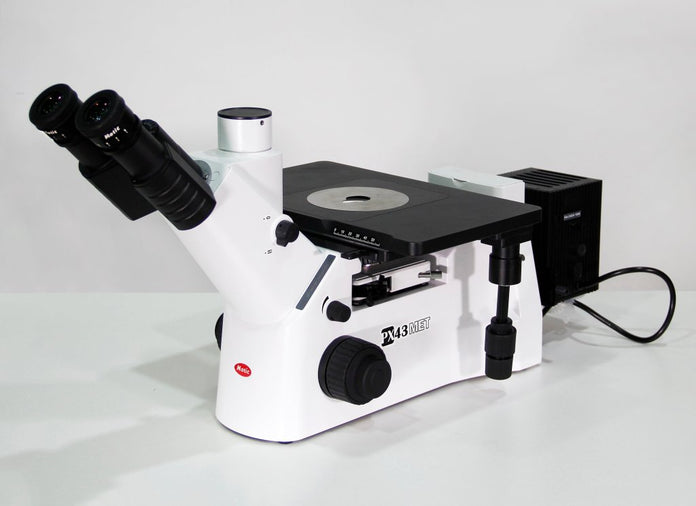

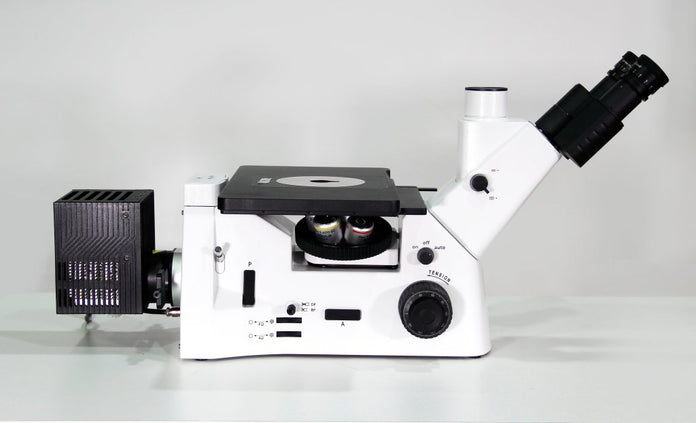

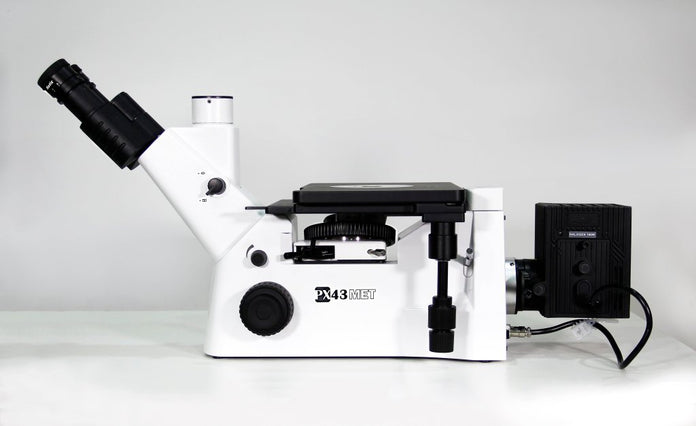

PX43MET Technical Data

• Optical System:
  Color Corrected Infinity Optical System (CCIS)

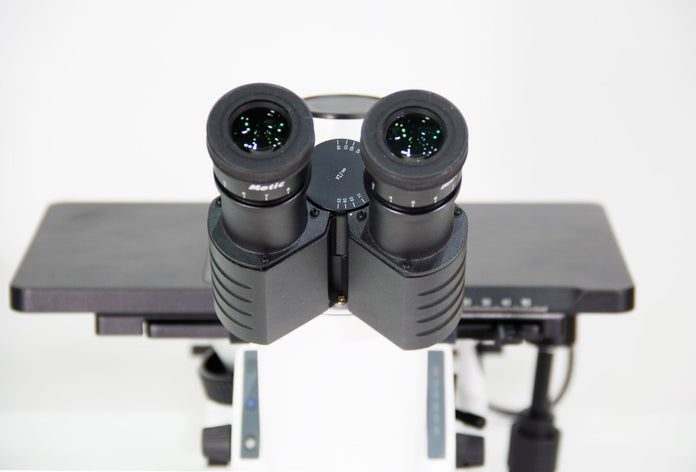

• Observation Tube:
  360° swivel range, height difference 40 mm
• Interpupillary Distance - Adjustment Range:
  48 mm to 75 mm

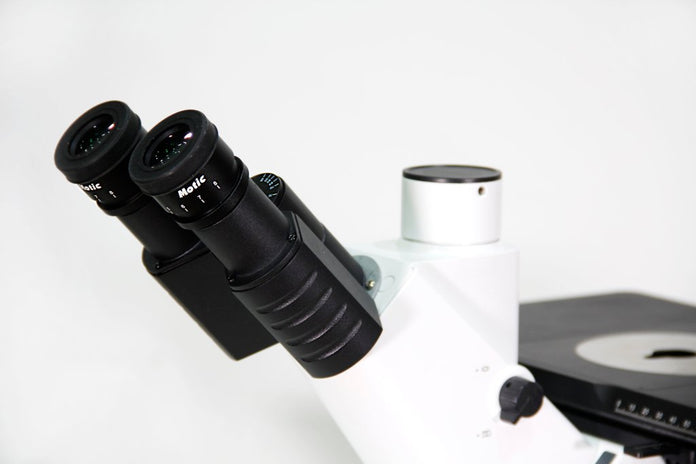

• Eyepieces:
  UC-WF 10X/FN22
• Trinocular Light Path:
  20/80
• Nosepiece:
  Quintuple Revolving Nosepiece
• Objectives:
  Plan S-Apo BD 5X, Plan S-Apo BD 10X, Plan S-Apo BD 20X, LPlan S-Apo BD 50X

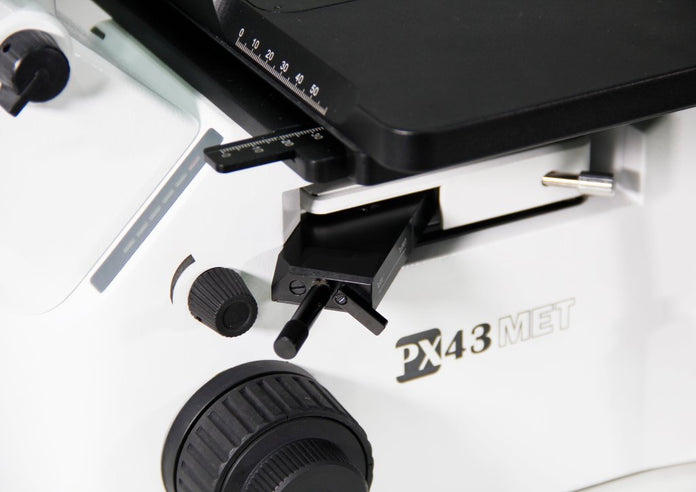

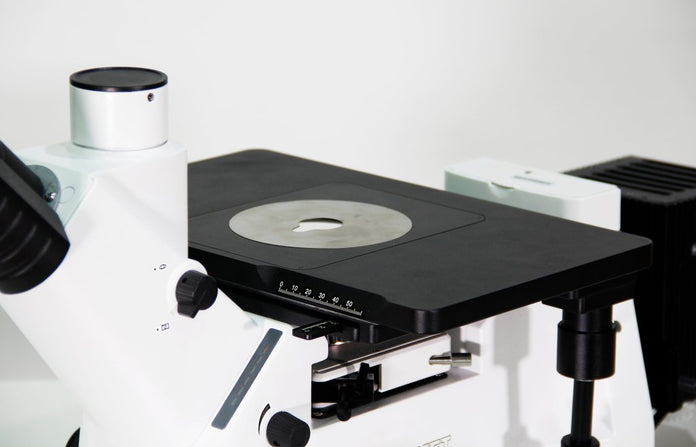

• Stage Size (mm) - Size：320(W) x 194(L) mm:
• Stage Size (mm) - Stroke：50 x 50 mm:

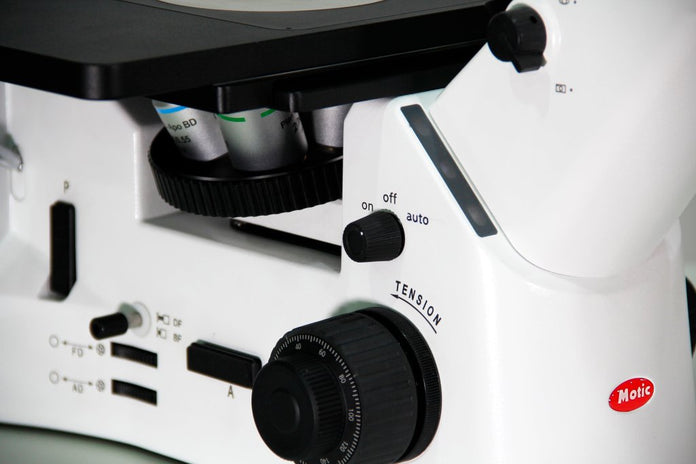

• Focus:
  Course/Fine Focus Knob, Course 42mm/ revolution, Fine 0.2mm/ revolution, 0.002mm/ marks
• Transmitted Light:
  Reflected Light 100W Light House RL100.00
• Electronics:
  115/230V, 60/50Hz

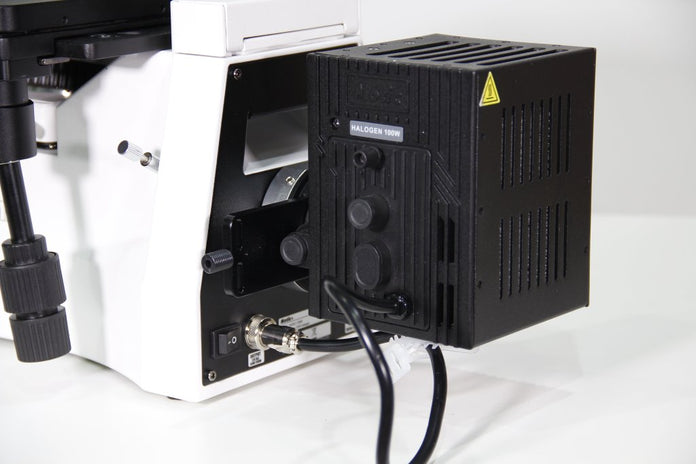

• Halogen Light:
  12V/100W
• DIC:
  Optional
• Analyzer:
  Optional
• Polarizer:
  Optional

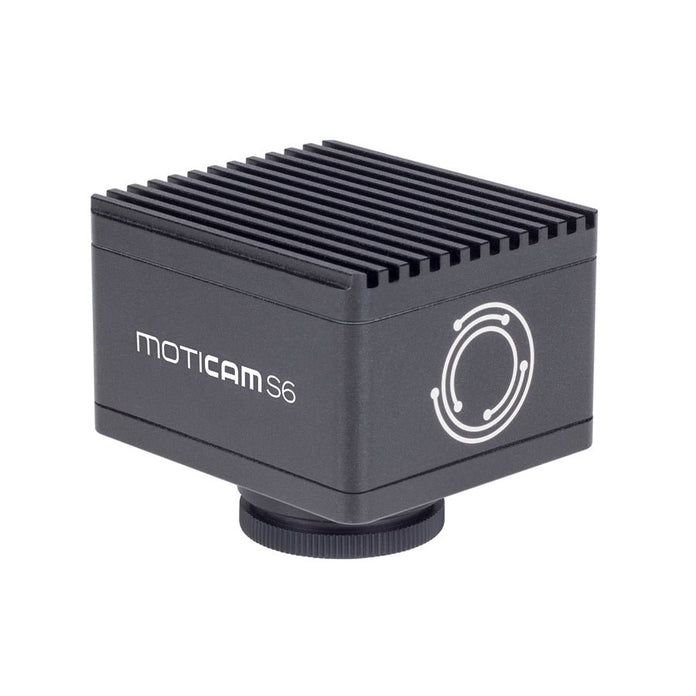

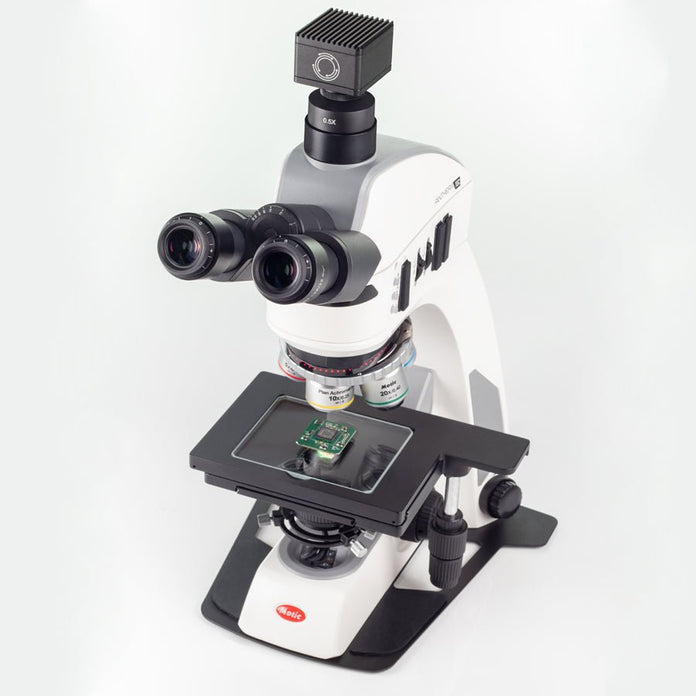

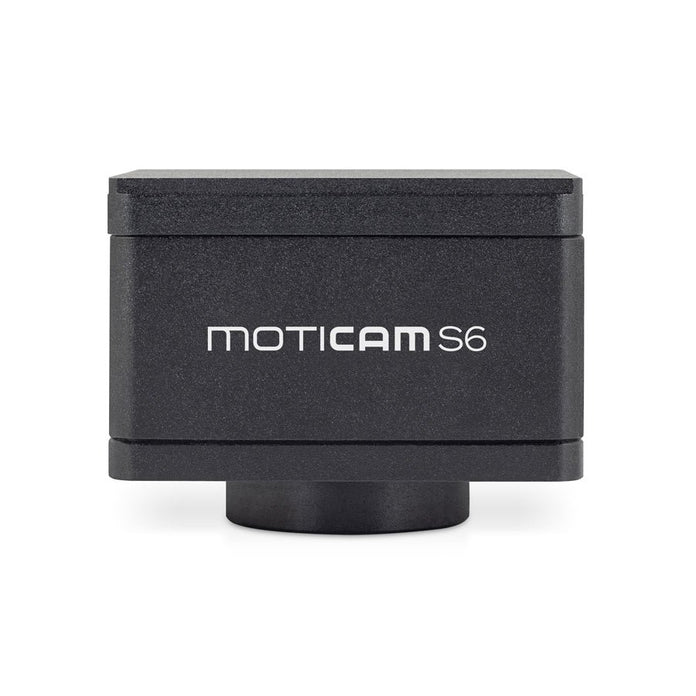

Moticam S6 Technical Data

• Sensor Type:
  sCMOS
• Sensor Size:
  1/1.8"
• Imaging Area:
  8.92 mm (Diagonal)
• Capture Resolution:
  6MP
• Live Display Mode Through USB:
  3072 x 2048, 1536 x 1024 pixels
• Pixel Size:
  2.4 x 2.4 μm
• Scan Mode:
  Progressive
• Shutter Mode:
  Rolling shutter
• Data Transfer:
  USB 3.1
• Max. Frames Per Second (FPS):
  3072 x 2048 @ 30FPS, 1536 x 1024 @ 50FPS
• Exposure Time:
  16μs to 2s
• Operating Temperature:
  From -10°C to +60°C, non-condensing
• Sensitivity:
  425mV(G) @ 1/30s
• Support Device:
  TWAIN, SDK and DirectShow driver
• Supported OS:
  Windows 7/8/10, macOS X 10.9 or higher, Linux (Ubuntu 16.04 or higher)
• Minimum Computer Requirements:
  2GHz dual-core CPU, 2GB RAM, 512MB video memory
• Lens Mount:
  C-mount
• Software:
  Motic Images Plus 3.0 for Windows, macOS, and Linux
• Functions:
  Still image and video capture, live and still image measurement, image adjustments, white balance, automatic and manual exposure, individual objective calibration system
• Power Supply:
  5V (via USB port)
• Package Includes:
  CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for Windows/macOS/Linux
