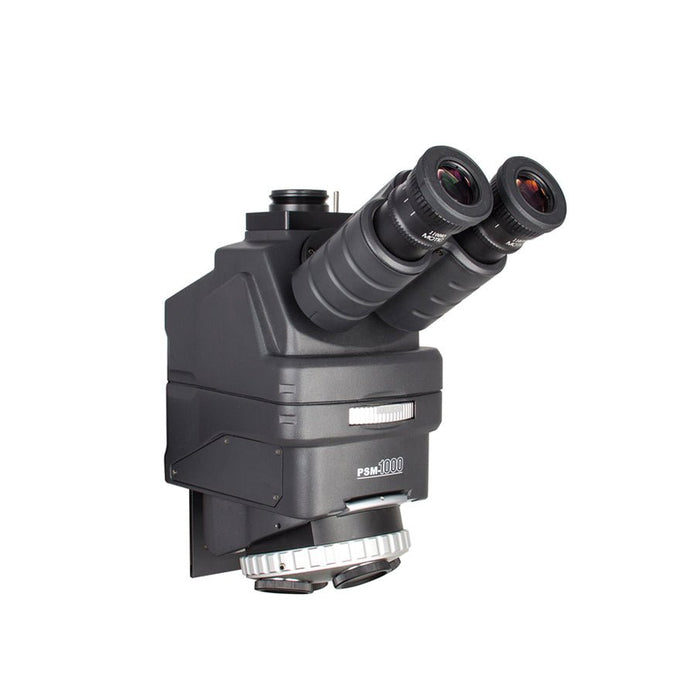

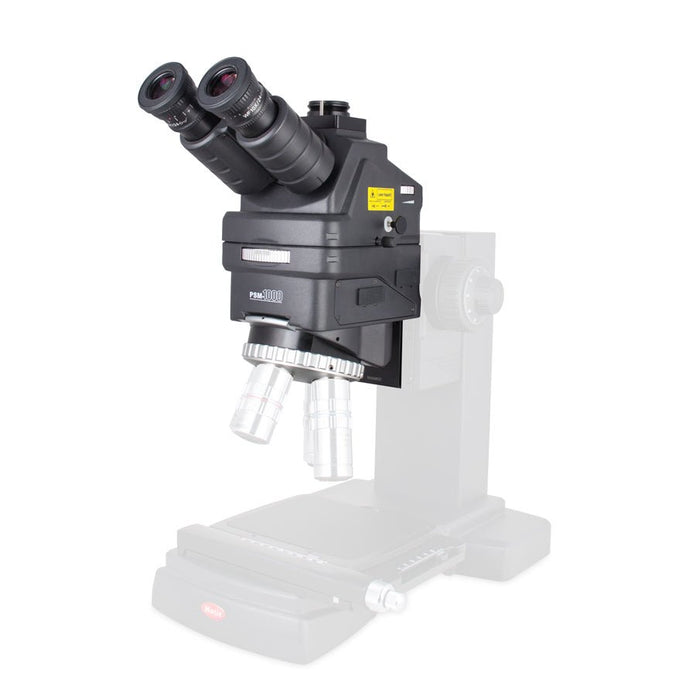

The PSM-1000 microscope is an OEM-ready instrument for best possible imaging results of flat, reflective specimen.

Features

The PSM1000 Head is an OEM component for the best image results of flat, reflective specimens. Samples from metallurgy and the semiconductor field are treated by the optional ELWD Plan Apochromatic objectives with a stupendous resolution power. The large FOV24 with an erect, true sided image allows fast orientation and manipulation work.


Laser Ready Modular Microscope


  • Ergonomic Design: The design of the PSM-1000 encourages the optimal amount of usability without sacrificing comfort
  • Laser Work: The PSM-1000 is standard equipped for laser work covering the spectrums ranging from 355nm (UV) to 532nm (Green) to 1064nm (IR)
  • Focusing Block: Rated for load weights up to 45lbs., image focal planes can be adjusted at 1μm resolutions within the total 50mm stroke
  • Adjustable Nosepiece: Forward facing and equipped for four M26 x 1/36" (0.706) type objectives, the PSM-1000's nosepiece is dovetail mounted for moulding to different types of research and usage

Specifications

Overview

Technical Data

  • Observation Tube:
    Trinocular head, Siedentopf type
  • Optical System:
    Specialized lenses design, covers the spectrums ranging from the NUV to visible to NIR
  • Inclination:
    30° inclined
  • Trinocular Light Split:
    50/50 | 0/100
  • Interpupillary Distance:
    55-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield WF10X/24mm with diopter adjustment
  • Intermediate Body:
    3-lens change-over turret, 1X UV/VIS (for 355-532nm), 1X IR/VIS (for 532-1064nm) and 2X
  • Nosepiece:
    Quadruple, single centerable positions
  • Objective Classification:
    Extra long working distance Plan Apochromatic
  • Objectives:
    Optional
  • Objective Mounting Thread:
    M26X0.706
  • Stand Type:
    Optional
  • Incident Illumination:
    Port for fiber-optic coaxial illumination
  • Accessories Included:
    Laser safety kit, shims, laser safety pin
  • Standard Contrast Technique:
    Brightfield
  • Polarization:
    Optional sliders
