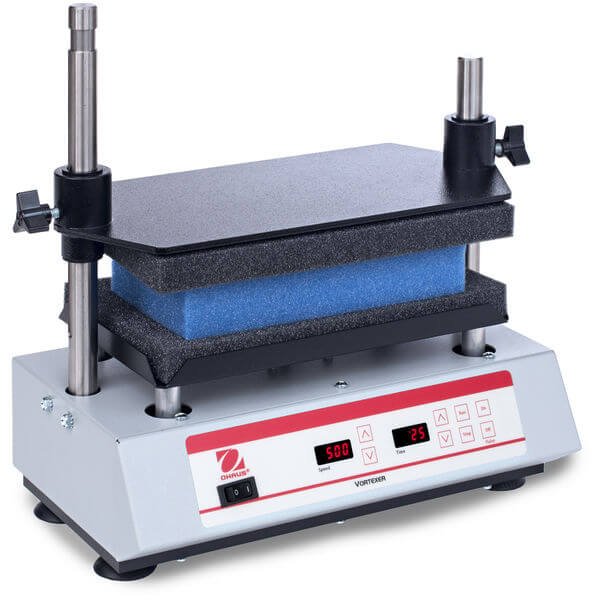

Ohaus - 30573836 - Multi-Tube Vortex Mixer, VXMTDGB
Features
OHAUS Multi-Tube Vorteers are ideal for hands-free, high-throughput sample processing. Interchangeable foam racks for vorteing tubes from 10 to 29 mm in diameter are available. Strong suction cup feet reduce motion and prevent sliding on the work surface for safe operation in the lab. Digital models offer eact speed control for applications that demand repeatable results. Non-digital variable speed models are an economical alternative.
Applications
Suspensions, Genotyping, High Throughput DNA and RNA Testing in Clinical Labs
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models).
Operation
Detachable 3-wire cord and plug (included)
Construction
Stainless steel foam rack for (50) 12 mm diameter tubes (included), interchangeable foam racks for vorteing tubes from 10 - 29 mm in diameter
Specifications
Overview
-
Nominal Height:16" (40.64 cm)
-
Nominal Width:15.1" (38.35 cm)
-
Nominal Length:9.5" (24.13 cm)
Technical Data
-
Control:Digital
-
Duty Rating:Continuous
-
Orbit:0.1 in (3.6 mm)
-
Speed Range:500 rpm - 2500 rpm
-
Capacity:4.5 kg
-
Timer:1 second - 9999 minutes
-
Net Weight:41 lb (18.7 kg)
-
Power:120V, 5A, 50/60Hz
-
Power Consumption:100 W
-
Safety Certification:TUV
-
Tray Size:7.25 in x 12.25 in (18.4 mm x 31.1 mm) (LxW)
-
Working Environment:39°F - 104°F, 20% to 80% RH, non-condensing (4 - 40°C, 20% to 80% RH, non-condensing)
