Overview

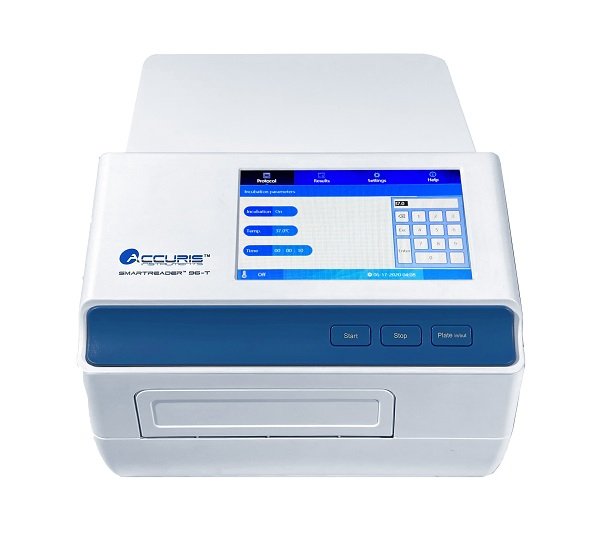

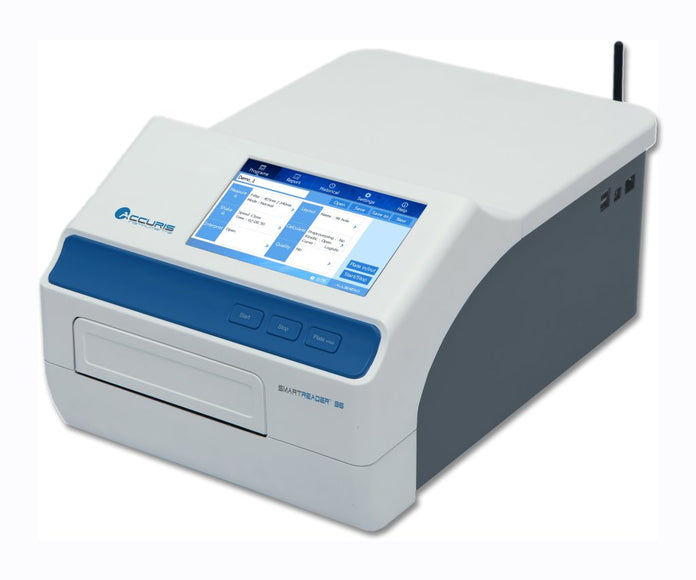

Specifications - Accuris SmartReader 96

• Control and Display:
  7 inch touch screen (800 x 480 pixels)
• Light Source:
  Quartz-halogen lamp 6V/10W
• Wavelength Range:
  340-750nm (405, 450, 492 and 630 nm filters included)
• Half-Bandwidth of Filters:
  3-9nm
• Readout Range:
  0-4.000 Abs
• Linearity (405nm):
  0-2.000 Abs <+1%, 2-4.000 Abs <+2%
• Precision:
  CV
• Test Speed:
  <6 sec for 96 well plate
• Shaking:
  3 modes, slow (3.5Hz), medium (4.7Hz), fast (7.0Hz)

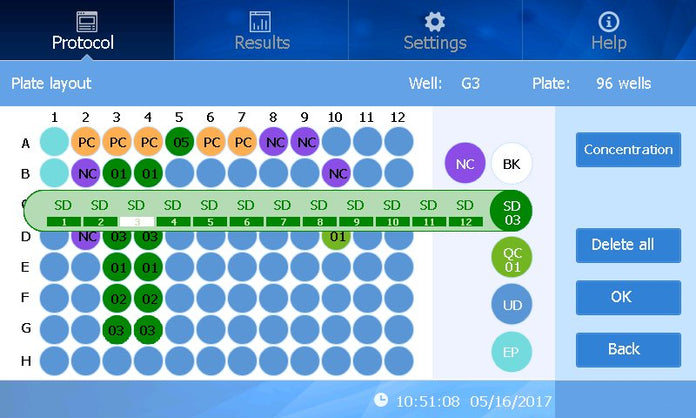

• User Interface:
  Integrated software, touch screen control
• Storage:
  200 programs, 100,000 test records
• Ports:
  USB ports for PC, printer, mouse and flash drive
• Weight:
  10 kg
• Warranty:
  2 Years

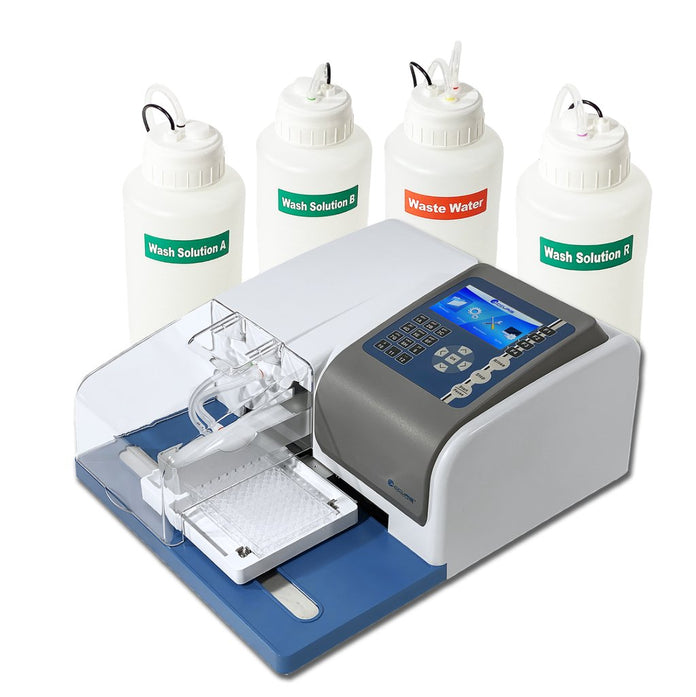

Specifications - Accuris SmartWasher 96

• Control and Display:
  4.3-inch LCD display
• Wash Heads:
  1 x 8 or 1 x 12
• Soaking & Shaking Time:
  1 second to 99 minutes
• Plate Types:
  Flat, U, V, or C bottom
• Shaking Speed:
  Slow, medium, fast
• Washing Volume:
  50-2000μl, in 50μl increments
• Bottle Capacity:
  4 x 2.5L (2 wash, 1 rinse, 1 waste)
• Dispensing Accuracy:
  ≤2% @ 300μl
• Data Connection:
  USB for flash drive
• Dispensing Precision:
  CV ≤1.5% @ 300μl
• Dimensions (W x D x H):
  13.6 x 18.11 x 7.87 in

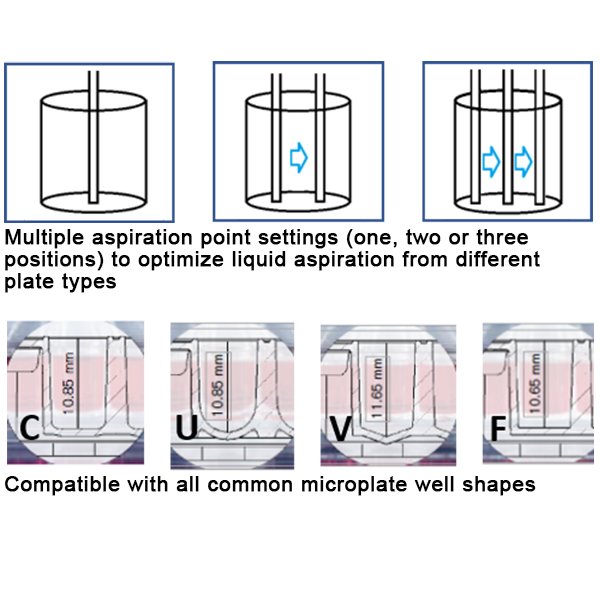

• Aspiration Modes:
  Single, two, and three points
• Weight:
  12kg / 26.4 lbs
• Residual Liquid:
  ≤1μl
• Electrical:
  110-240VAC, 50/60Hz
