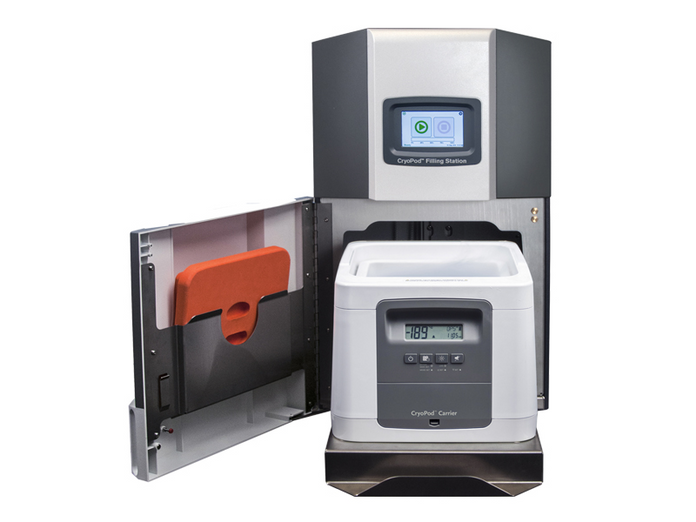

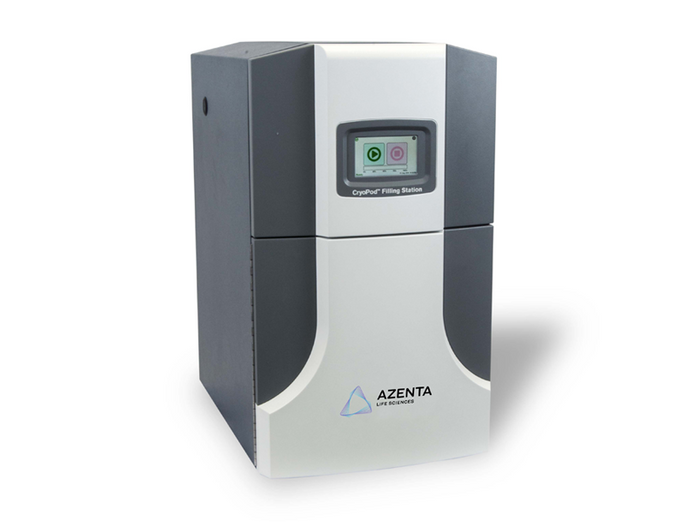

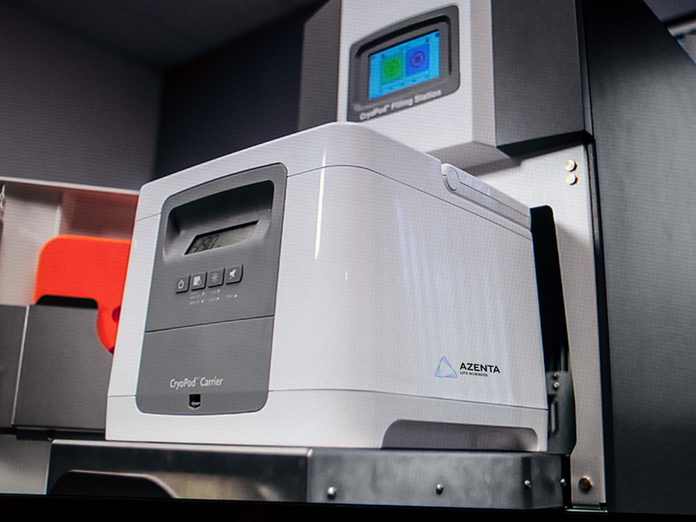

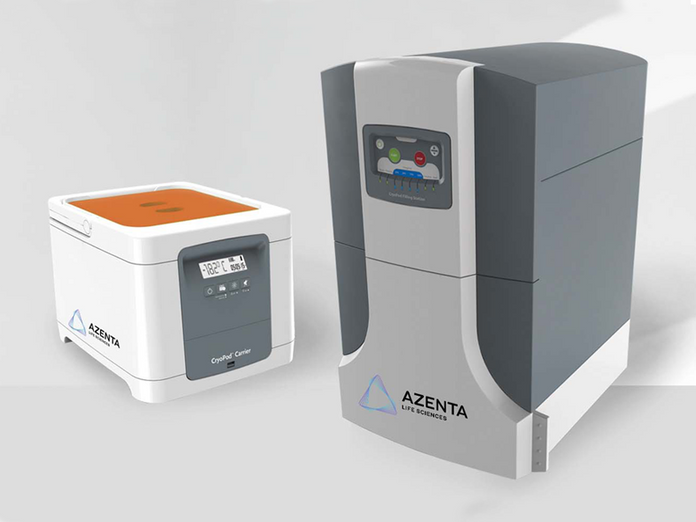

The CryoPod Carrier Filling Station enables the fast and simple replenishing of the CryoPod's LN2 supply in a safe, precise, and hands-free manner.

Features

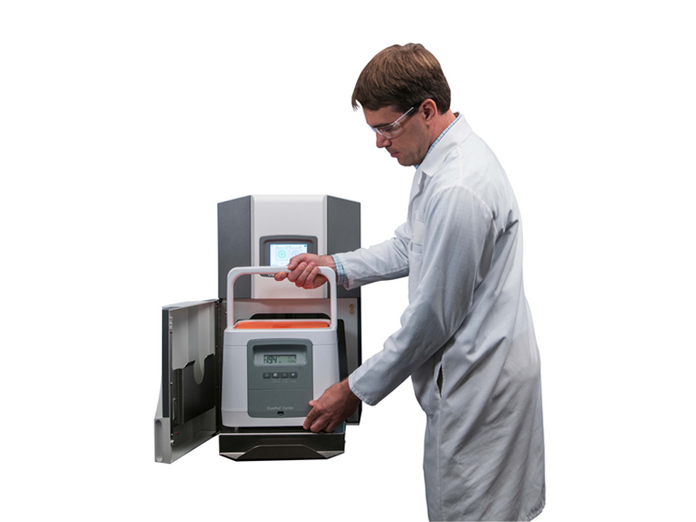

The filling station recharges the CryoPod within 10 minutes and keeps it charged for on-demand, immediate use. The user simply loads the CryoPod, shuts the door, and presses "start". The user is removed from any LN2 exposure or contact with dangerously cold surfaces.



A CryoPod can even be recharged before it warms up, as the filling station monitors LN2 levels throughout the charging process to ensure a precise fill. Completely remove yourself from the risks associated with manual LN2 handling and use the automatic filling station to effortlessly and safely charge the CryoPod carrier.



  • Single-button, hands-free operation
  • Can connect to existing LN2 supply lines
  • Recharges the CryoPod in about 10 minutes



Key Features



Operation



  • Safe: hands-free LN2 CryoPod charging
  • Simple: single button operation, walk away until ready
  • Precise: exact LN2 filling every time, even before empty
  • Fast: charges the carrier in 10 minutes or less
  • Versatile: can connect to existing LN2 supply

Specifications

Overview

  • Nominal Height:
    29" (73.66 cm)
  • Nominal Width:
    17" (43.18 cm)
  • Nominal Length:
    23" (58.42 cm)

Technical Data

  • LN2 Supply:
    Clean dry LN2 supply between 18-28 Psi
  • Filling Station LN2 Transfer Hose:
    PN 262727
  • Supply Voltage:
    100V – 220VAC
  • Supply Frequency:
    50-60 Hz
  • Current Rating:
    2.5 Amp
  • Input Power Connection:
    Filling Station power supply (PN 258518), European plug, CEE 7/4 (PN 0009616), UK plug (PN 0008852), North American plug NEMA 5-15 (PN 0008851)
  • Temperature Operation:
    18 to 27°C
  • Relative Humidity:
    50% RH non-condensing
