PHCbi - MDF-U731M-PA - 24.4 Cu. Ft. High-Performance Biomedical Freezer

Features
Purpose-Built Cold Chain Storage
PHCbi brand biomedical freezers are engineered from the inside out to create, maintain and restore precise temperatures necessary for vaccine storage. Our purpose-built -30°C vaccine storage freezers are designed for temperature uniformity and stability that is not commonly found with household or commercial cabinets. PHCbi brand vaccine cold chain storage solutions satisfy current and evolving storage protocols essential for continued vaccine efficacy.
Optimum Storage Capabilities

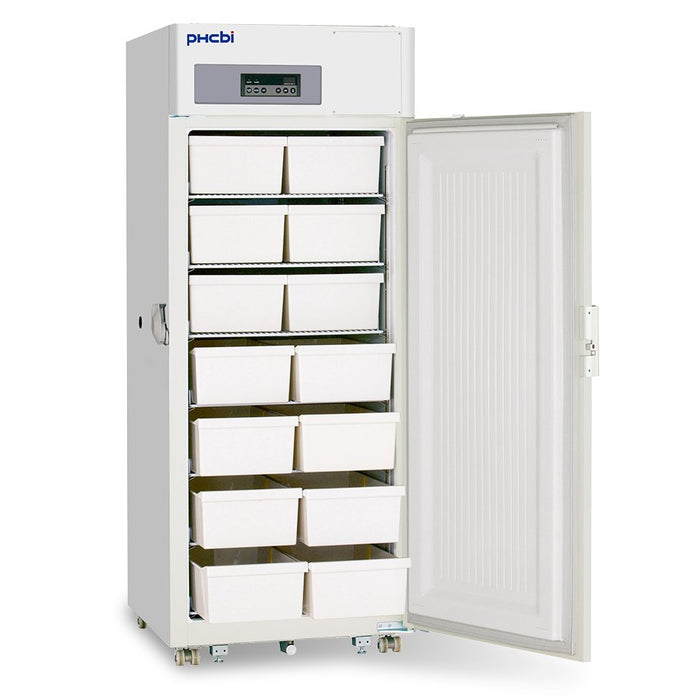

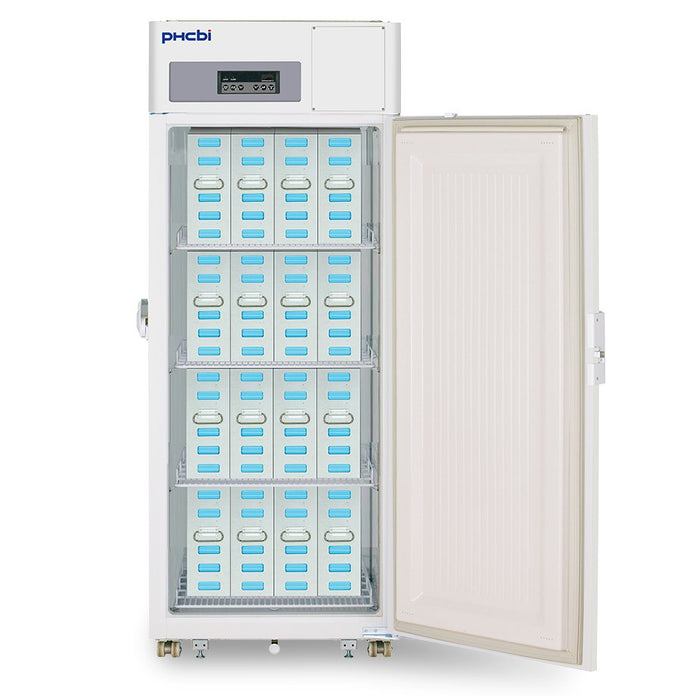

PHCbi high-performance biomedical freezers offer manual defrost storage solutions for uniformity, reliability and environmentally safe operation. The optional full storage system creates a flexible and convenient inventory system for enzymes and many other types of samples. The total system includes 14 storage bins and wire shelving.
Optimized Design and High Performance
Constructed with high performance laboratory and clinical-grade refrigeration systems, these high-performance biomedical freezers are used in clinical, biotechnology and industrial labs. Unlike many other -30°C freezers, the PHCbi High Performance Biomedical Freezer Series has cooling coils strategically spaced in the freezer walls, along both sides, the back, the top and the bottom of the chamber to ensure maximum cooling performance.
Superior Temperature Uniformity
The robust short-term lab storage freezer, powered by PHCbi compressors, provides dependable cooling by balancing temperature performance and energy management.
Microprocessor Controller and Alarms
Comprehensive setpoint, alarm, monitoring and diagnostic functions are maintained by the PHC-built microprocessor controller with digital display of all input/output functions.
Specifications
Overview
-
Nominal Height:77" (195.58 cm)
-
Nominal Width:30.3" (76.96 cm)
-
Nominal Length:32.7" (83.06 cm)
-
Internal Height:59.8" (151.89 cm)
-
Internal Width:25.6" (65.02 cm)
-
Internal Length:27.6" (70.1 cm)
-
Capacity:24.4
Technical Data
-
Insulation:Rigid polyurethane foamed-in-place
-
Shelves:Polyurethane coated wire, 4 shelves, (allowable load 110 lbs. (50 kg)/shelf)
-
Shelves - Dimensions:24.6" x 24.4" (626 x 620 mm)
-
Access Ports:2 Side, 1 top (1.2" (30 mm) diameter)
-
Net Weight:152 kg (335 lbs)
-
Cooling Performance:-18ºC to -30ºC (Ambient temperature 5ºC to 35ºC, no load)
-
Compressor:Hermetic type (Output 400W)
-
Refrigerant:SNAP and CARB Approved HFO R-449A
-
Alarms:High temperature, low temperature, door, power failure, remote alarm terminal
-
Temperature Control System:Microprocessor Control System
-
Construction:Interior and exterior painted steel
-
Energy Consumption:2.89 kWh/day
-
Temperature Sensor:Thermistor
-
Data Management:Optional with LabAlert Monitoring System
-
Energy Star Certified:ENERGY STAR Unique ID 2296325
