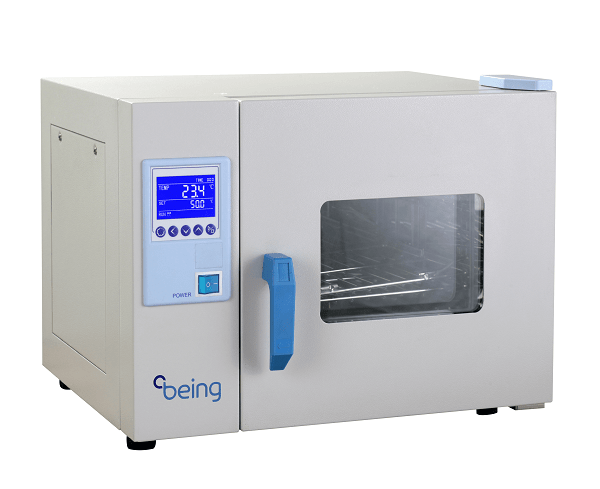

Being - BH15116U - Natural Convection Incubator

Being - BH15116U - Natural Convection Incubator
Being - BH15116U - Natural Convection Incubator

Being - BH15116U - Natural Convection Incubator

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The BIT Series natural convection incubators provide the same functionality as the BIF Series but do it naturally. This technology is ideal for those research, medical, pharmaceutical, and food applications requiring very low air turbulences for gentle heating. They have an inner glass door, a programmable PID controller with 7 programs and 9 steps each, a corrosion-resistant stainless steel liner, and many more features. Available in 5 sizes from 0.6 Cu. Ft. (16 L) to 8.1 Cu. Ft. (228 L).

Features

Laboratory incubator applications are diverse because of the many different industries and protocols they are used for, so we have designed the BEING LAB Incubator family to accommodate a wide range of applications. The BEING Controller guarantees temperature accuracy and control. We engineer the best safety features into all our products assuring piece of mind to our customers.


Performance and Features


  • Temperature Range: Amb+10°C - 80°C.
  • P.I.D temperature controller provides accurate and reliable temperature control.
  • Natural convection heating allows the sample temperature to be uniform, suitable for sterilization, powder drying andhigh temperature storage.
  • Extended Life Silicone Rubber Gasket provides excellent sealing and long service life, but is easily replaced when the time for replacement is needed.

Convenience


  • Volume (16L - 200L).
  • Inner chamber is made from corrosion-resistant mirror stainless steel.
  • Coved chamber corners make for easy cleaning.
  • Anti-skid shelf design, easy to operate by single hand.

Safety & Peace of Mind


  • Auto Start Feature after power loss/return.
  • Temperature deviation alarm.
  • Over temperature set point alarm.
  • Over current protection alarm.
  • Independent Over-temperature protection meets DIN 12880 International standard requirements provides you double protection.

Specifications

Overview

  • Nominal Height:
    15" (38.1 cm)
  • Nominal Width:
    20" (50.8 cm)
  • Nominal Length:
    17.3" (43.94 cm)
  • Internal Height:
    9" (22.86 cm)
  • Internal Width:
    10.6" (26.92 cm)
  • Internal Length:
    10.2" (25.91 cm)
  • Capacity:
    0.6

Natural Convection Incubator

  • Temperature Range:
    Ambient +5°C to 80°C (Ambient +9°F to 176°F)
  • Display Resolution:
    0.1
  • Temperature Uniformity:
    ±0.8°C (±1.44°F)
  • Temperature Stability:
    ±0.2°C (±0.36°F)
  • Time to Reach 37°C:
    30 min
  • Shelves (Std. / Max.):
    2 / 5
  • Shelves Loading:
    44.1 lb (20 kg)
  • Net Weight:
    50.7 lb (23 kg)
  • Timer:
    1~9959 mins
  • Test Hole:
    Ø5mm
  • Electrical Requirement:
    120V/60Hz
  • Electrical Plug Type:
    NEMA 5-15
  • Power Consumption:
    100W
  • Stackable:
    No
  • Shelf Part Number:
    P19053
