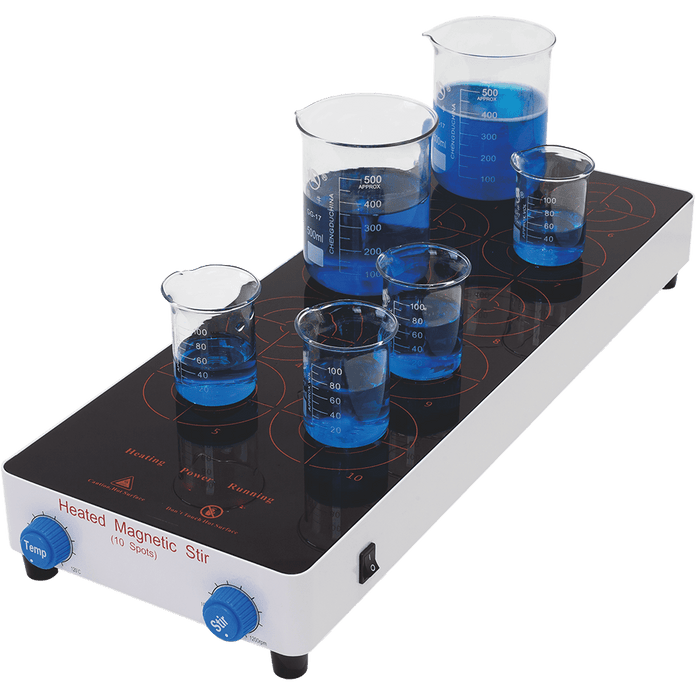

Crystal Industries - MS-10HA - 10-Position Hotplate Stirrer
Features
Multi-Position Hot Plate Stirrers offer an elegant, space-saving design to provide both stirring and heating functions for your applications. Convenient to use, with variable stirring speed and temperature, for multiple sizes of beakers or flasks simultaneously.
- Heats and stirs a variety of beaker and flask sizes
- High quality brushless DC motor provides excellent durability and quiet operation
- The exterior is made of durable aluminum alloy which has high-temperature resistance, corrosion protection, and good insulation properties
- The working plate is made of Pyroceram material
- Speed Control Motor feature controls motor speed which is smooth at low speed and strong at high speed
- Constructed to provide fast heating speed and temperature uniformity
Specifications
Overview
-
Nominal Height:3.1" (7.87 cm)
-
Nominal Width:8.4" (21.34 cm)
-
Nominal Length:24.1" (61.21 cm)
Technical Data
-
Speed:0rpm, 100~1200rpm
-
Plate Temperature:Ambient ~ 120°C
-
Platform Dimensions:475 x 190 mm (18.7 x 7.5 inch)
-
Platform Material:Black Glass-Ceramic
-
Number of Stirring Positions:10
-
Capacity:10 x 500ml
-
Max Stirrer Bar Length:50mm (1.97 inch)
-
Accessories Included in Standard Packaging:10 x MSA04 Ø12 x 30 mm (Ø0.47 x 1.18 inch) Stirrer Bar
-
Platform Material:Black Glass-Ceramic
-
Control:Analog
-
Operating Environment - Ambient Temperature:5℃~40℃
-
Operating Environment - Ambient Relative Humidity:≤90%
-
Power Supply:AC110V±11V, 60Hz
-
Max Power Consumption:450W
-
Net Weight:7.1 kg (15.7 lb)
-
Protection Level:IP21
