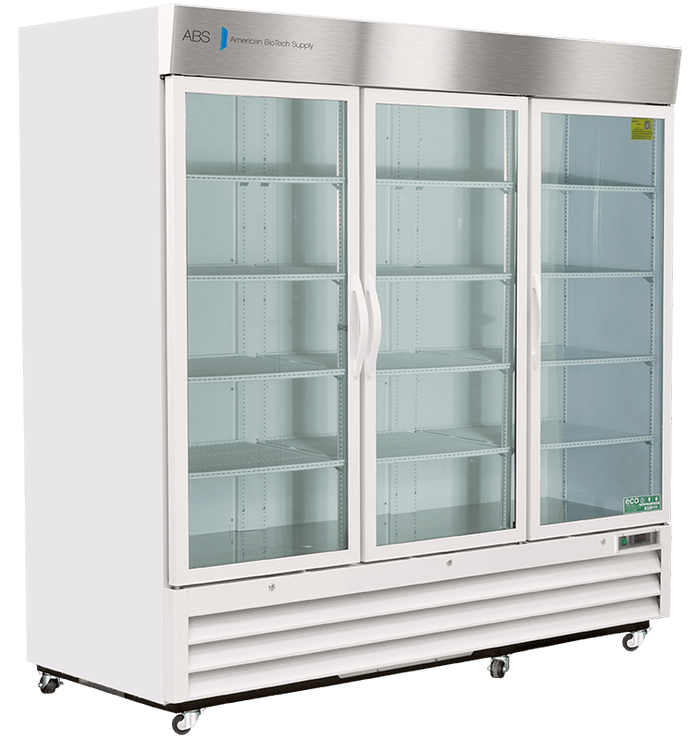

American Biotech Supply - ABT-HC-LS-72 - 72 Cu. Ft. Capacity Standard Glass Door Laboratory Refrigerator

American Biotech Supply - ABT-HC-LS-72 - 72 Cu. Ft. Capacity Standard Glass Door Laboratory Refrigerator
American Biotech Supply - ABT-HC-LS-72 - 72 Cu. Ft. Capacity Standard Glass Door Laboratory Refrigerator
American Biotech Supply - ABT-HC-LS-72 - 72 Cu. Ft. Capacity Standard Glass Door Laboratory Refrigerator

American Biotech Supply - ABT-HC-LS-72 - 72 Cu. Ft. Capacity Standard Glass Door Laboratory Refrigerator

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The Standard Series Glass Laboratory Refrigerators are purpose built for scientific and medical applications. Standard Series Glass Door Laboratory Refrigerators feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings.

Features

The Standard Series Glass Laboratory Refrigerators are purpose built for scientific and medical applications. Standard Series Glass Door Laboratory Refrigerators feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings.



The temperature display and alarm module offers product security with a monitoring and alarm system. Real-time sample simulated temperatures are constantly displayed and supported by audible/visual high and low temperature alarms.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Details

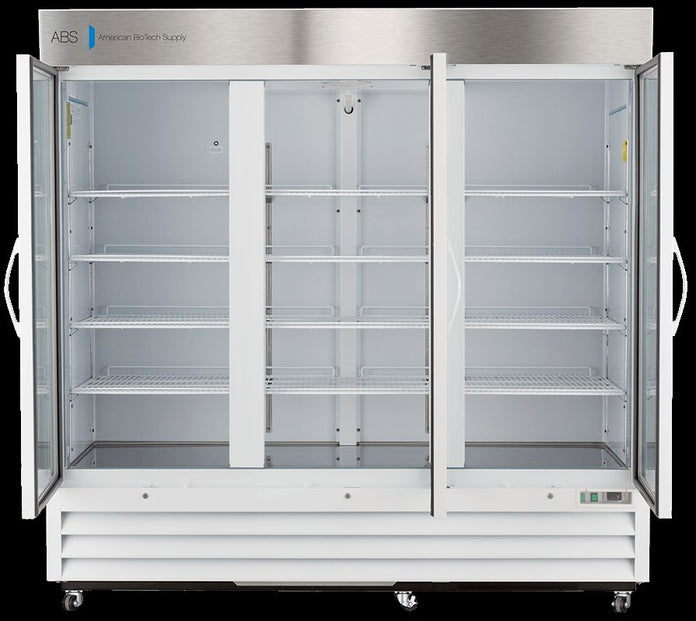

  • Twelve adjustable shelves (adjustable in ½"increments)
  • Forced draft air circulation
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Heavy duty door handles
  • Swivel casters (3 ½")
  • LED interior lights are safety shielded and switch controlled
  • Probe access port (3/8″)
  • Powder coated steel white interior and exterior
  • High density urethane foam cabinet insulation
  • Hydrocarbon, natural refrigerant (R290)
  • One year parts and labor warranty, plus an additional four year compressor parts warranty



Temp Controller

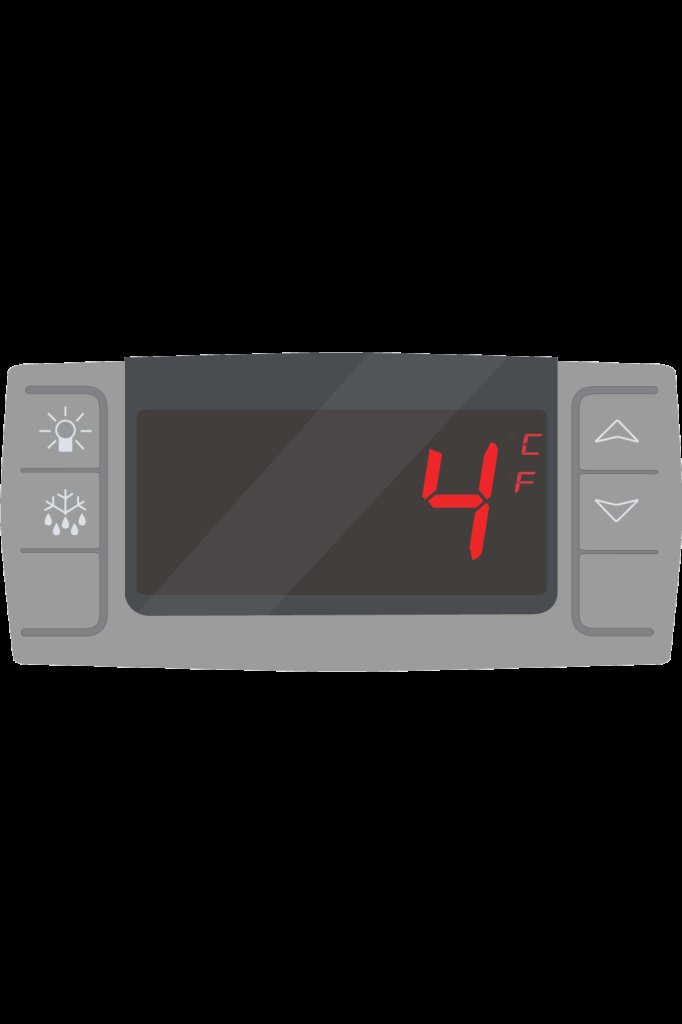

  • Microprocessor temperature controller
  • Digital temperature display
  • Audible and visual high and low temperature alarms
  • 2 probes; 1 in air and 1 in sample bottle
  • Remote alarm contacts
  • Adjustable operating temperature: 1°C to 10°C

Specifications

Overview

  • Nominal Height:
    81.75" (207.65 cm)
  • Nominal Width:
    81" (205.74 cm)
  • Nominal Length:
    34" (86.36 cm)
  • Internal Height:
    52.25" (132.72 cm)
  • Internal Width:
    76" (193.04 cm)
  • Internal Length:
    24.75" (62.87 cm)
  • Capacity:
    72

General Description and Application

  • Door:
    Three swing glass doors, self-closing, right and left hinged
  • Shelves:
    Twelve adjustable shelves (adjustable in ½” increments)
  • Mounting and Installation:
    Swivel Casters
  • Interior Lighting:
    LED interior lights are safety shielded and switch controlled
  • Airflow Management:
    Forced draft air circulation
  • External Probe Access:
    Probe access port (3/4”)
  • Insulation:
    Cabinet is foamed-in-place with EPA compliant high density urethane foam
  • Exterior Materials:
    White powder-coated steel interior and exterior
  • Access Control:
    Keyed door lock
  • Product Weight (lbs) :
    693
  • Shipping Weight (lbs):
    743
  • Rated Amperage:
    7.5 Amps
  • Power Plug/Power Cord:
    NEMA 5-15 plug
  • Facility Electrical Requirement:
    115V, 60 Hz, 7.5 Amps, 1/2 HP
  • Agency Listing and Certification:
    ETL, C-ETL listed and certified to UL471 standard
